Rockwell Automation Publication 1783-IN016B-EN-P - March 2019 19
Stratix 5700 Ethernet Managed Switches

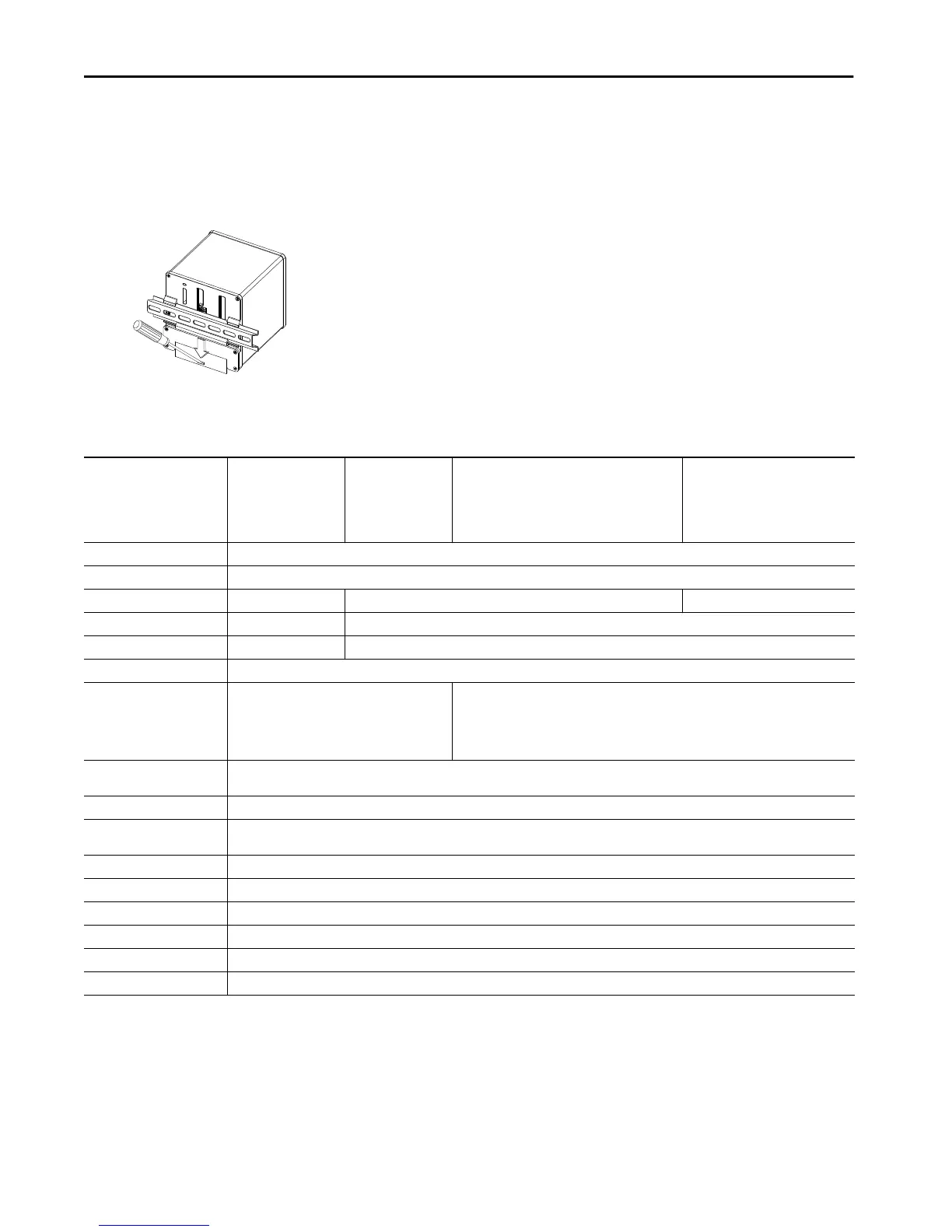

Remove the Switch from the DIN Rail
To remove the switch from a DIN rail or a rack, follow these steps.
1. Remove power from the switch, and disconnect all cables and connectors from the front panel of the switch.
2. Insert a tool, such as a flat-head screwdriver, in the slot at the bottom of the spring-loaded latch and use it to release the latch from the rail.
Specifications
Attribute
1783-BMS12T4E2CGL,
1783-BMS12T4E2CGP,
1783-BMS12T4E2CGNK
1783-BMS4S2SGL,
1783-BMS4S2SGA
1783-BMS06SA, 1783-BMS06SGL, 1783-BMS06SGA,
1783-BMS06SL, 1783-BMS06TA, 1783-BMS06TGL,
1783-BMS06TGA, 1783-BMS06TL, 1783-BMS10CL,
1783-BMS10CA, 1783-BMS10CGL,
1783-BMS10CGA,1783-BMS10CGP, 1783-BMS10CGN
1783-BMS20CL, 1783-BMS20CA,
1783-BMS20CGL, 1783-BMS20CGP,
1783-BMS20CGPK, 1783-BMS20CGN
Temperature, surrounding air, max 60 °C (140 °F)
Enclosure type rating None (open-style)
Switch power input, max 12…48V DC, 0.5 …3.0 A 12…48V DC, 0.5 … 2.0 A 12…48V DC, 0.5 …3.0 A
PoE power input 44...57V DC, 2.5A max —
PoE+ power input 50…57VDC, 2.5 max —
Alarm relay 30V DC, 1.0 A or 48V DC, 0.5 A
Isolation voltage
60V (continuous), basic insulation type, DC power ports
to ground, and PoE power ports to ground
No isolation between individual Ethernet ports
No isolation between PoE power and Ethernet ports
No isolation between console port and system
50V (continuous), basic insulation type, DC power ports to ground, DC power ports to Ethernet ports,
and DC power ports to alarm ports
No isolation between individual Ethernet ports
No isolation between console port and system
Wire size, DC power connections
0.5... 0.8 mm
2
(20...18 AWG) solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire (such as Belden part
number 9318), 6.3 mm (0.25 in.) ± 0.5 mm (0.02 in.) strip length
Wire size, ground connection 4.0 mm
2
(12 AWG) min, stranded copper wire
Wire size, alarm connections
0.5... 0.8 mm
2
(20...18 AWG) solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire (such as Belden part
number 9318), 6.3 mm (0.25 in.) ± 0.5 mm (0.02 in.) strip length
Screw torque, power terminals 0.23 N•m (2.0 in•lb)
Screw torque, ground terminals 0.4 N•m (3.5 in•lb)
Screw torque, alarm terminals 0.23 N•m (2.0 in•lb), max
Pilot duty rating Alarm not rated
North American temp code T4
ATEX temp code T4
