050362Page 16
17.4
16.7
4.0
3.0
2.5
24
30
60
120

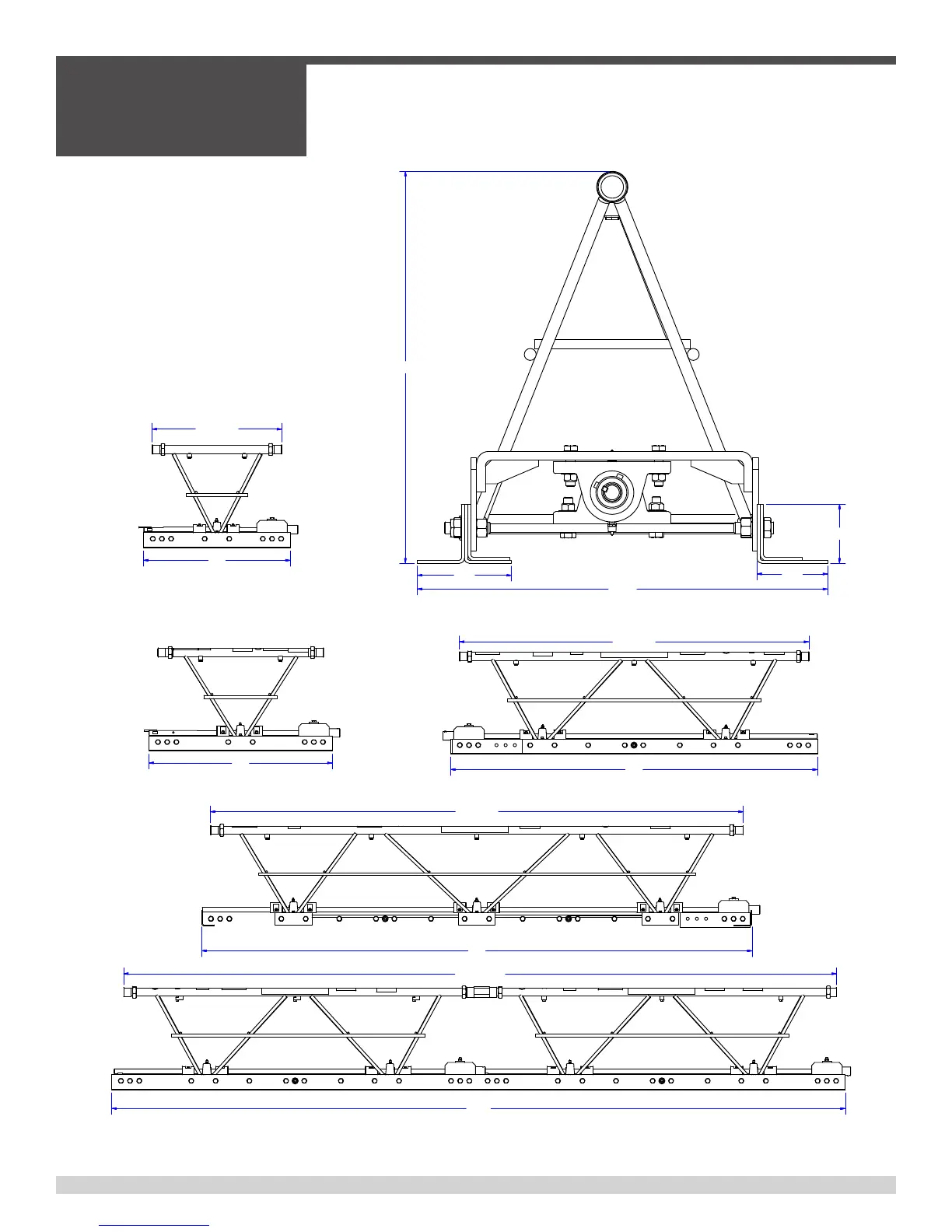

The dimensions of the air
powered screed in this manual
are illustrated on this page. the
geight and width are in Figure 1
and the lengths of the different
screed sections available are
illustrated in Figure 2.
FIGURE 1
FIGURE 2
90
2' SECTION
2-1/2' SECTION
5' SECTION
7-1/2' SECTION
10' SECTION
21.187
57.187
87.187
116.650
Standard Machine Dimensions
