allen SSE12 - Engine Mount Assembly Steps

SECTION 2
OPERATIONS
050362 Page 39
1
2

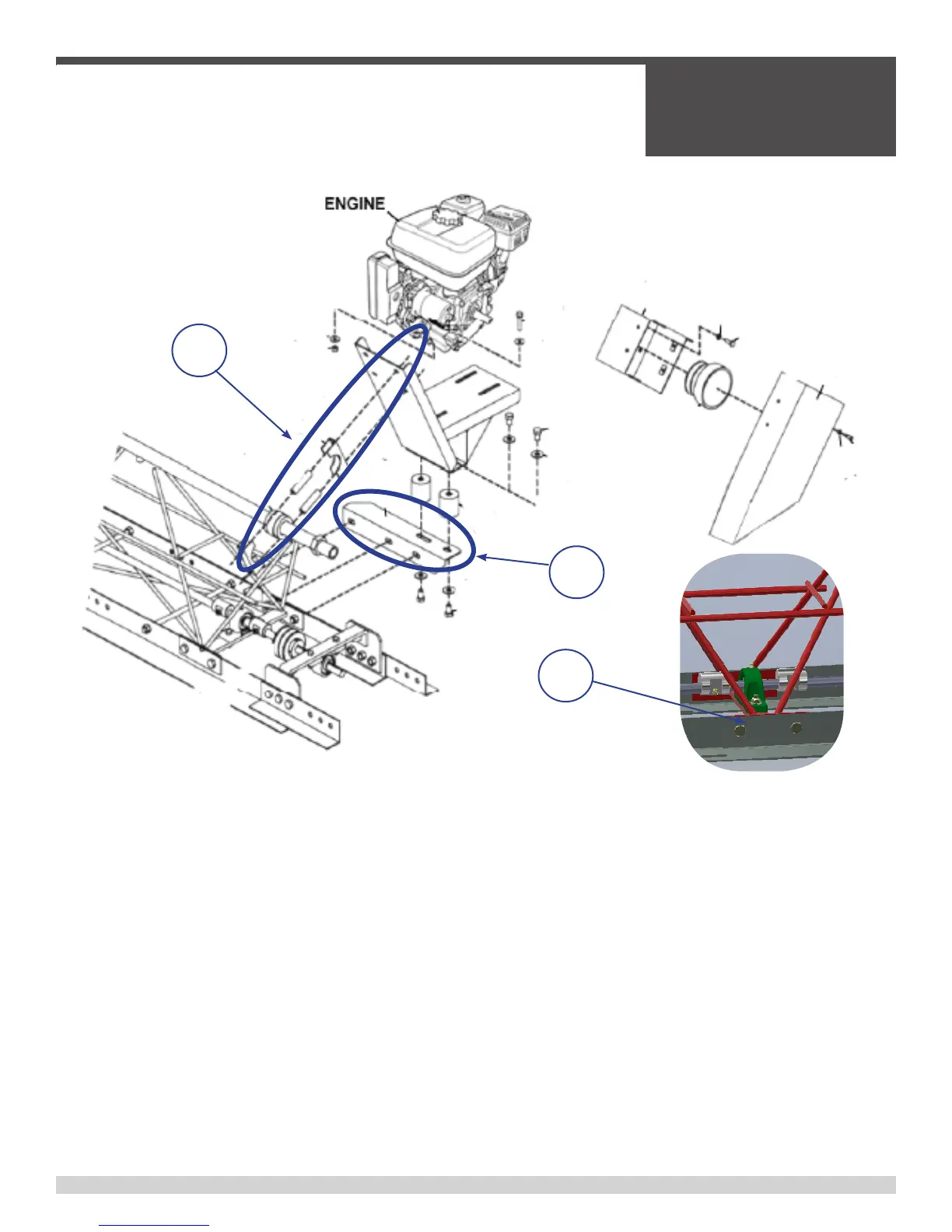

Follow the following steps to properly mount the engine to the screed.
• Firstly insure that the Engine itself is on the rear side of the screed.
• Make sure to attach the v-belt and pulley to the drive shaft.
1
• Start by attaching the rubber bushing to the top bar of the screed.
• Proceed to place the clamp and clamp spacer around the bushing.
• Tighten the engine mount onto the screed with the 4 3/8-16 x 3 3/4” hex screws,
3/8” washer, and 3/8” hex nut.
2
• Linetheengineupwiththeholesshowninthegureat2.1.
• Tighten the 1/2-13 x 1” hex screw, 1/2” washer, and 1/2-13” hex nut to the screed.
2.1
Engine Mount Assembly
