SECTION 2
OPERATIONS
050362 Page 37

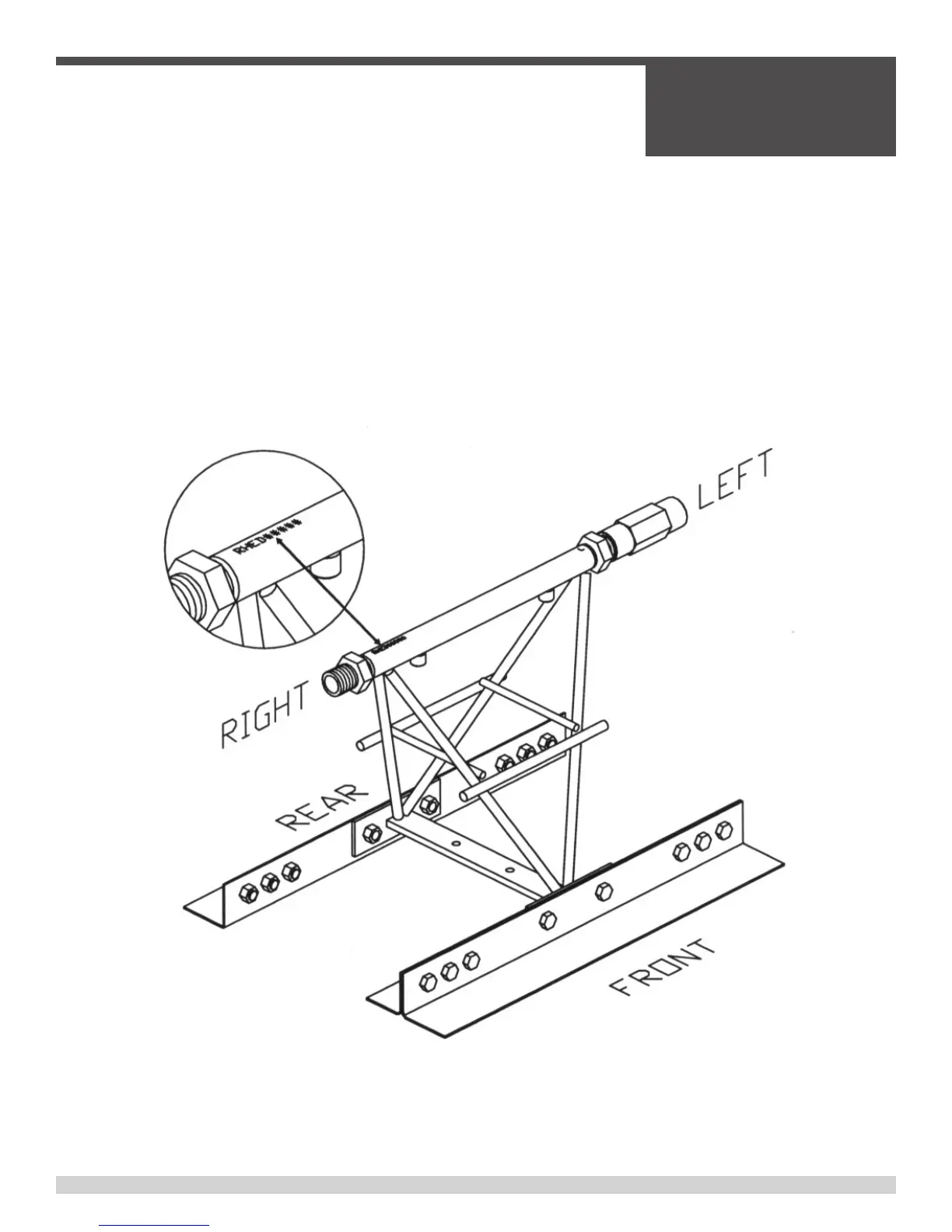

The following illustration shows all the key information on how to determine the left and right and the front
and rear of a screed section.
Note the circle with the serial number.
this is probably the easiest way to determine the left and right sides of the screed assembly. The right side
has the model number and the 5 digit serial number. The left hand side is only stamped with an “L”. Also the
from of the screed is determined by the two screed blades mounted back-to-back. The rear of the screed
hasonlyonebull-oatblade.
Determining Left and Right
of Screed Section
