SECTION 2
OPERATIONS
050362Page 40

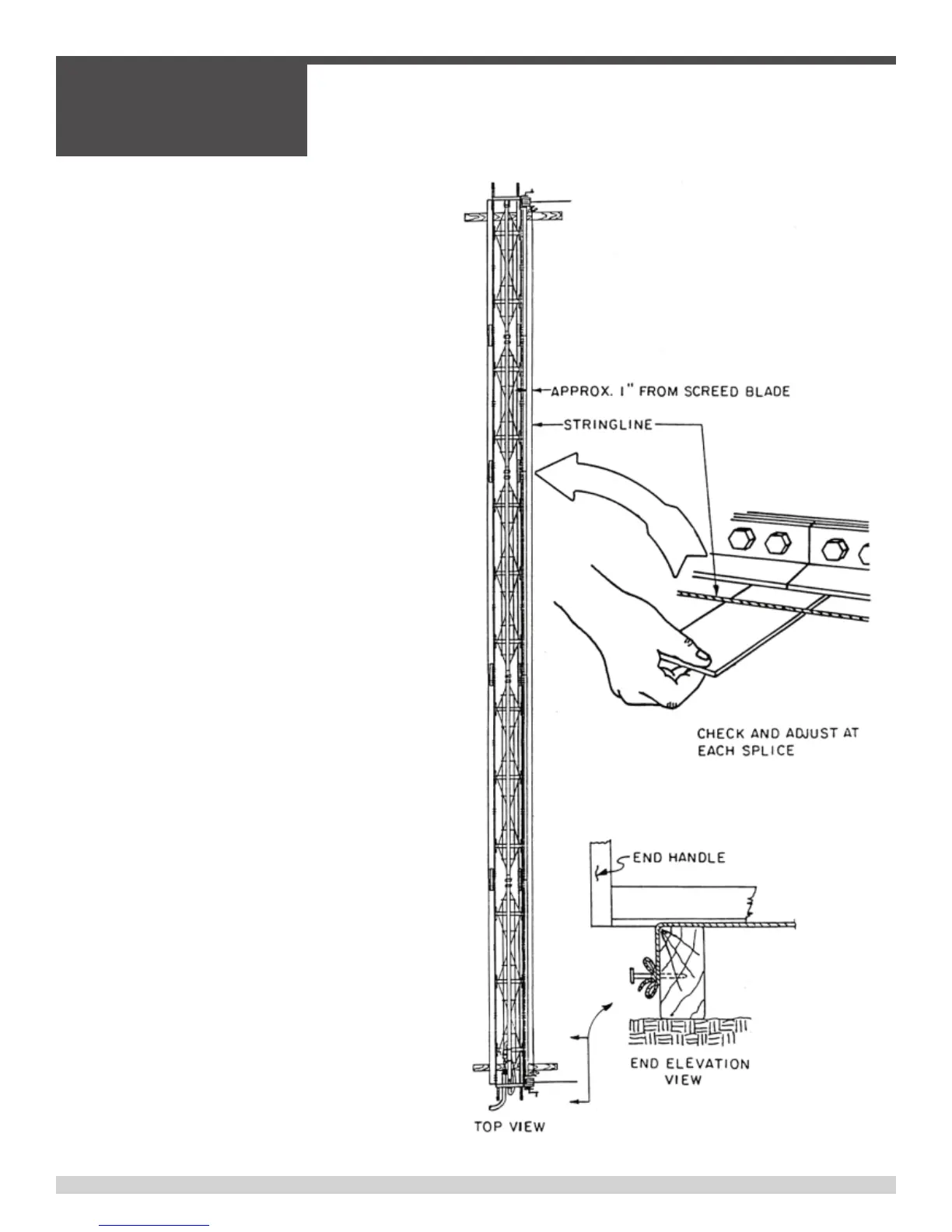

To string line your screed, there are a few im-
portant steps that need to be followed.
• Place screed ends on a 2 x 6 or other wooden
type support.
• At approximately 1” out from the leading
edge of the screed blade, drive a nail into the
wooden support. NOTE: Nail should be on the
outside of the wooden support.
• Stretch a line as tight as possible from nail to
nail. Make sure that the nail is contacting each
support at the pint of blade contact.
• NOTE: The supports do not have to be on the
same level.
• Useashort,atpieceofmetalorwoodasa
gauge block to compare the string to the bot-
tomsurfaceofthescreedbladeandbull-oat
blade.
• The blades should be equal to each other at
each splice. If they are not even, loosen jam
nuts and tighten top pipe coupler as described
on page 33.
String Lining
