allen SSE12 - Assembling Screed Sections Correctly

SECTION 2
OPERATIONS
050362 Page 35
Thefollowingguresdescribetheproperinstructionsforcorrectlyassemblingenginedrivenscreed.Makesure
you follow the instructions in order. If the assembling of your screed is not done in this order, there could be some
problemsintryingtomaintainooratnessbecauseyourscreedisnotlevel.Levelnessofyourscreediscritical!

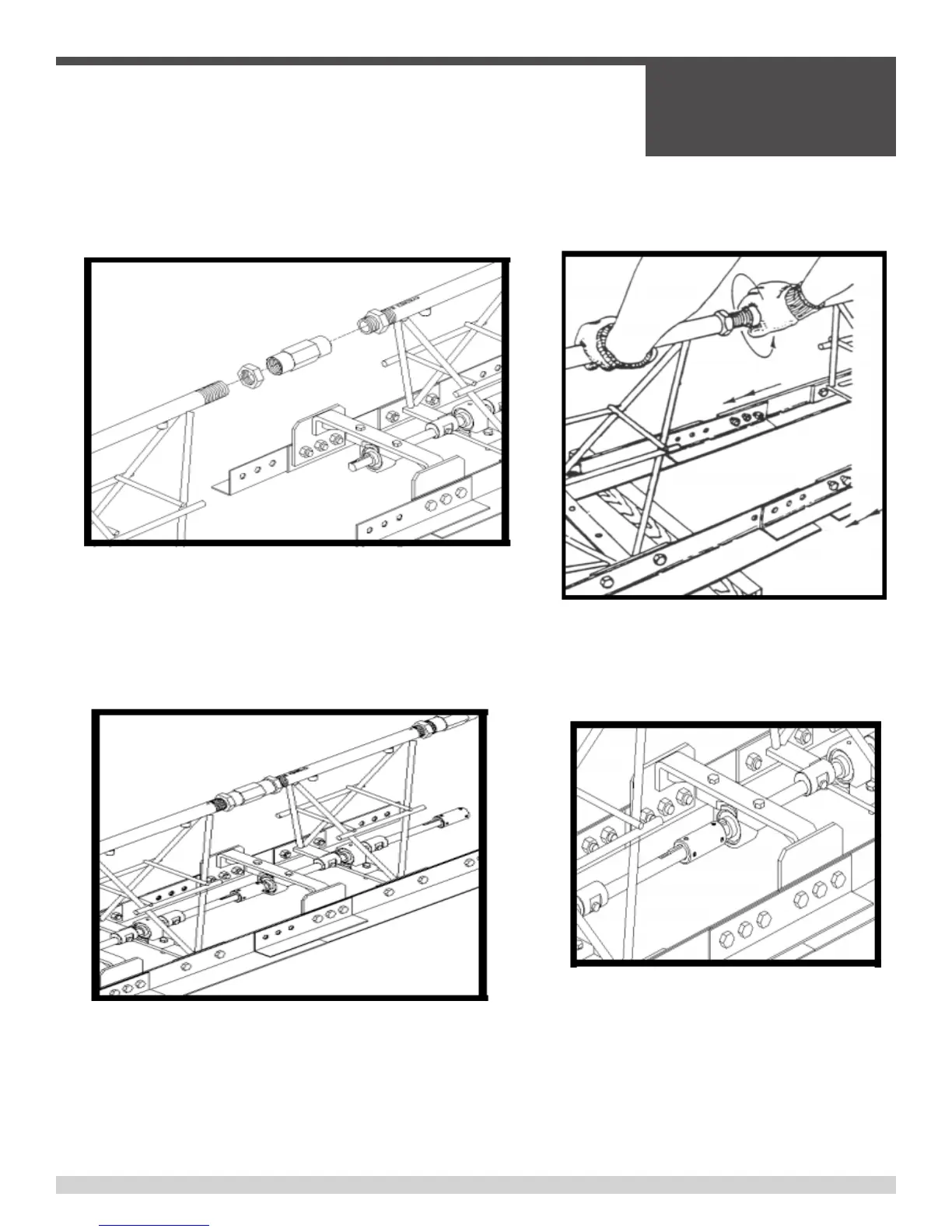

STEP 1: Screw jam nuts onto top pipe. Start the top pipe coupler
onto the top pipe of the mating truss section. Only thread the
coupler on about three turns
NOTE: The right and left hand jam nuts will already be installed
on the screed section.
TIGHTEN JAM NUTS AFTER SCREED IS LEVEL
STEP 2: Slide screed sections together until top
pipe threads on screed marked “R” line up with
threads in coupler on the screed. Start coupler
on adjoining threads by hand to prevent cross
threading.
STEP 3: Bearing support bolts should be loose so that
splice plate can move in clearance holes. With 15” adjust-
ablewrench,turntoppipecoupleruntilscreedanbulloat
blades contact, then back the coupler off slightly so that the
blades touch without tension.
STEP 4: Tighten bolts on splice plates. Next slide
the shaft coupler on the adjoining section and
tighten the set screws provided. make sure that
the 3/16 key is on the shaft before sliding sec-
tions together. Repeat these steps for attaching all
engine driven screed sections.
Section Assembly
