Changing a cartridge
WARNING: When the cartridge has been removed the lawn mower can tip back. Use the kick stand
provided to prevent an accident.
WARNING: Always remove the Key / Disabling device from the mower before changing a cartridge
WARNING: Blades are sharp always wear gloves and appropriate foot wear

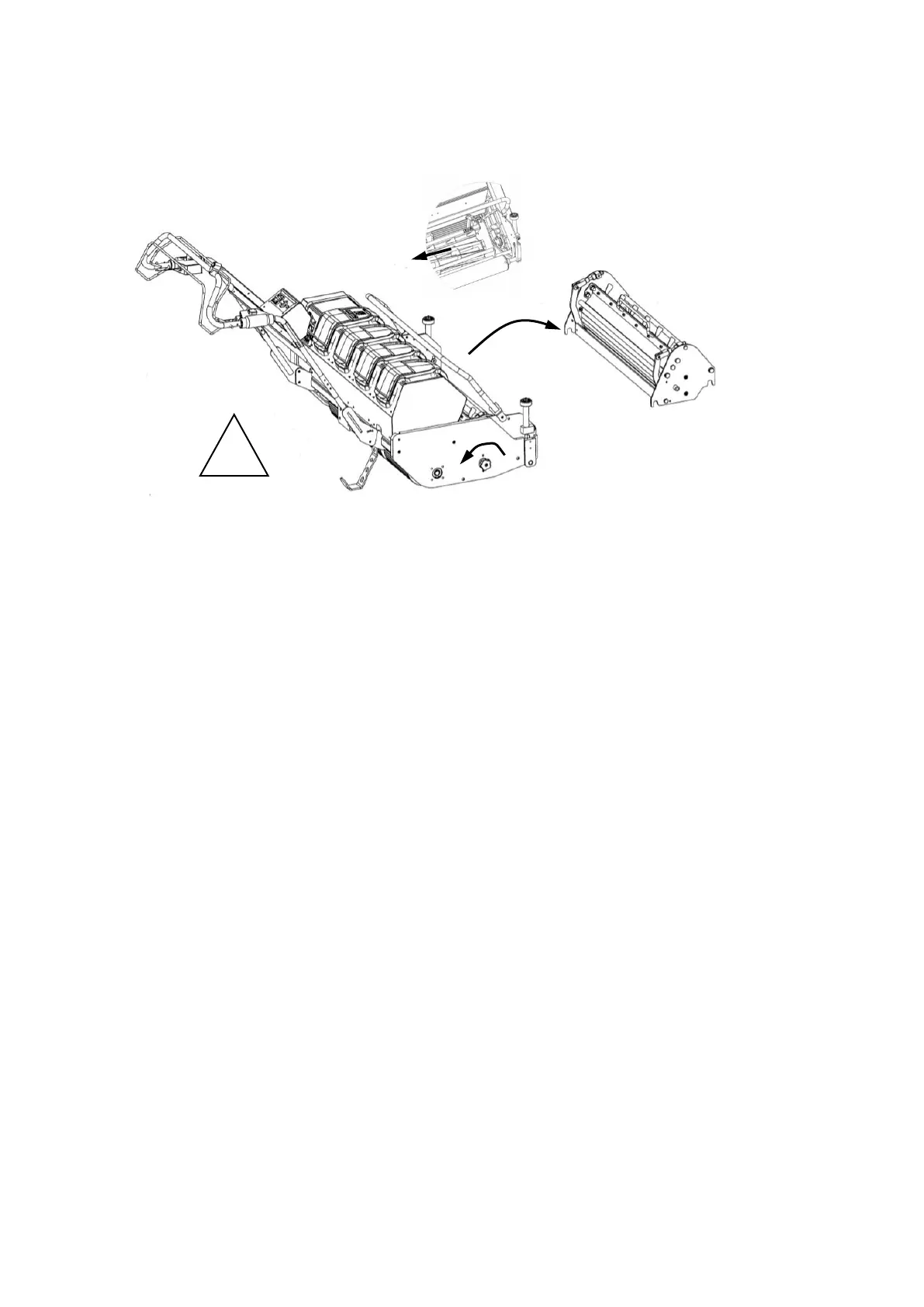

To remove a cartridge, proceed as follows:
1) Remove the key / disabling device & lower the kick stand
2) Undo the cartridge locking screw
3) Slide the cartridge away from the drive coupling
4) Lift the cartridge out of the machine
To install a cartridge:
Lift the cartridge into the mower so that it sits on both cross rails
Align the teeth on the drive coupling, use the indicator marks to help
Slide the cartridge to engage with the drive coupling
Secure the cartridge with the locking screw.
Some cartridges weigh over 25kg, obtain assistance if required and observe best practice lifting
techniques (get help when needed, lift with legs and maintain a straight back posture)
