Assembly

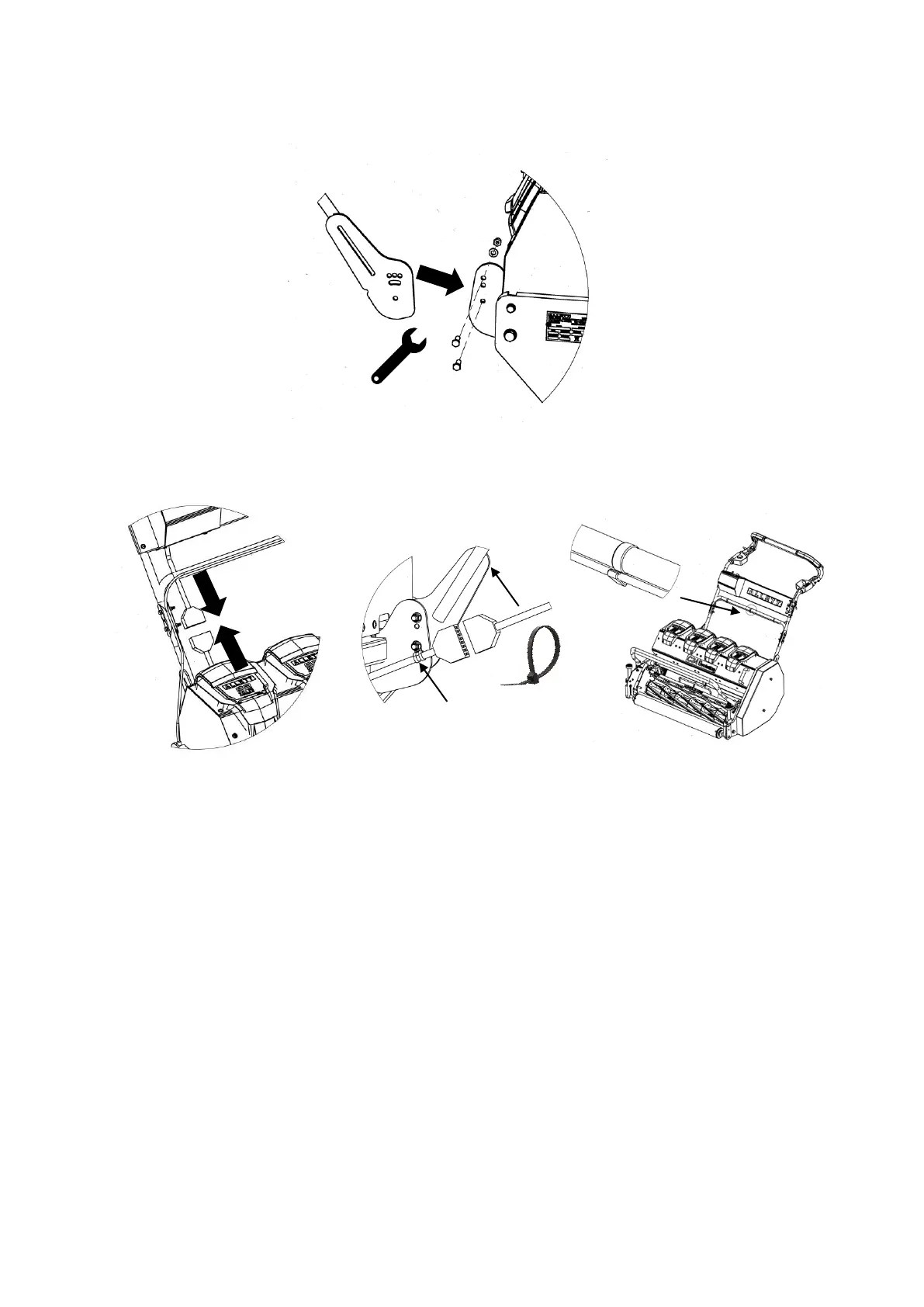

Attach the handle bar assembly to the mower using the 4 x M8 screws and the Nyloc nuts provided.
Torque the fasteners to 25Nm. The cable for the park brake has been left attached to the mower for
your convenience. After assembly check the handbrake is operational and adjust if necessary.
Connect the wiring plug for the handle bars to the mower plug and secure the cable with the P clip
and two cable ties provided. Finally clip the handbrake cable to the handle bar cross bar using the 3
plastic clips provided.
Handle bar height adjustment
The lower handle has a set of holes at the pivot to give height adjustment, select the corresponding
hole to give the height you are most comfortable with.
Grass box
Lower the grass box hoop and plate the grass box over the hoop
Cleaning & Storage
Clean the mower, battery and charger with a soft dry brush or cloth, paying attention to the cooling
fins on the end of the motor and charger. If the grass box or interchangeable cutting cartridge are
removed from the lawnmower they may be cleaned with water from a hose. Lubricate the cutting
cylinder with a light oil to displace any water after cleaning and when storing at the end of the
season.
