Allett C34 EVOLUTION - C34 E Main Assemblies

AM81687-A
Original Instructions – English 33
C34E MAIN ASSEMBLIES

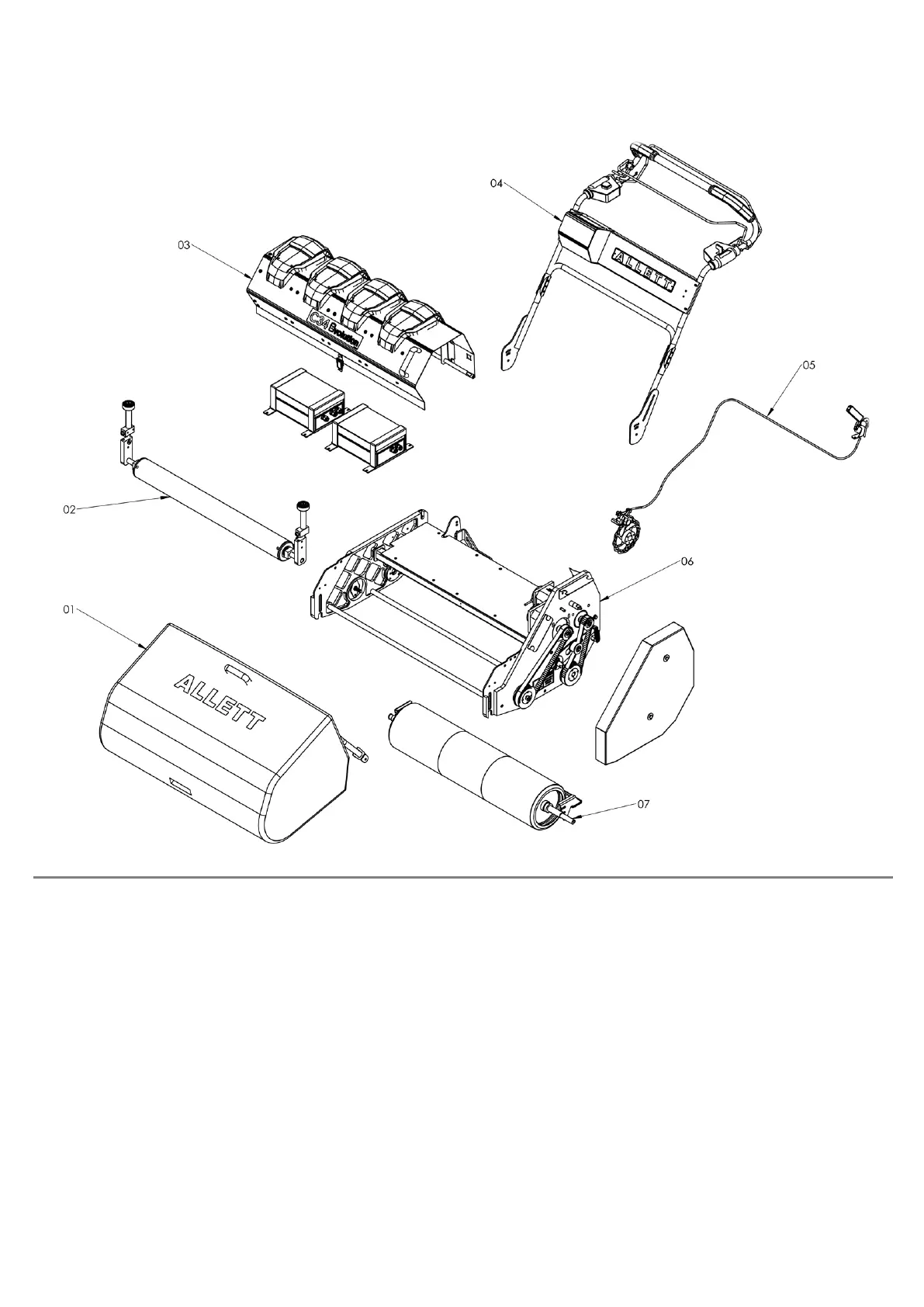

Figure 1
ITEM NO.
DESCRIPTION
PART NO.
QUANTITY
01
GRASSBOX ASSEMBLY
N/A
1
02
FRONT ROLLER ASSEMBLY
N/A
1
03
BATTERY HOOD AND CONTROL BOX
N/A
1
04
HANDLE ASSEMBLY
N/A
1
05
BRAKE ASSEMBLY
N/A
1
06
MAIN CHASSIS ASSEMBLY
N/A
1
07
REAR ROLLER ASSEMBLY
N/A
1
