Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
88. HIGH LIMIT THERMOSTAT
(Electric Models)
a. Unlock and open access door. Remove cover.
b. Disconnect wires from thermostat.
c. Remove two screws holding thermostat to front
of heater housing and remove thermostat. Refer
to Figure 20.
NOTE: Refer to wiring diagram when rewiring
thermostat.

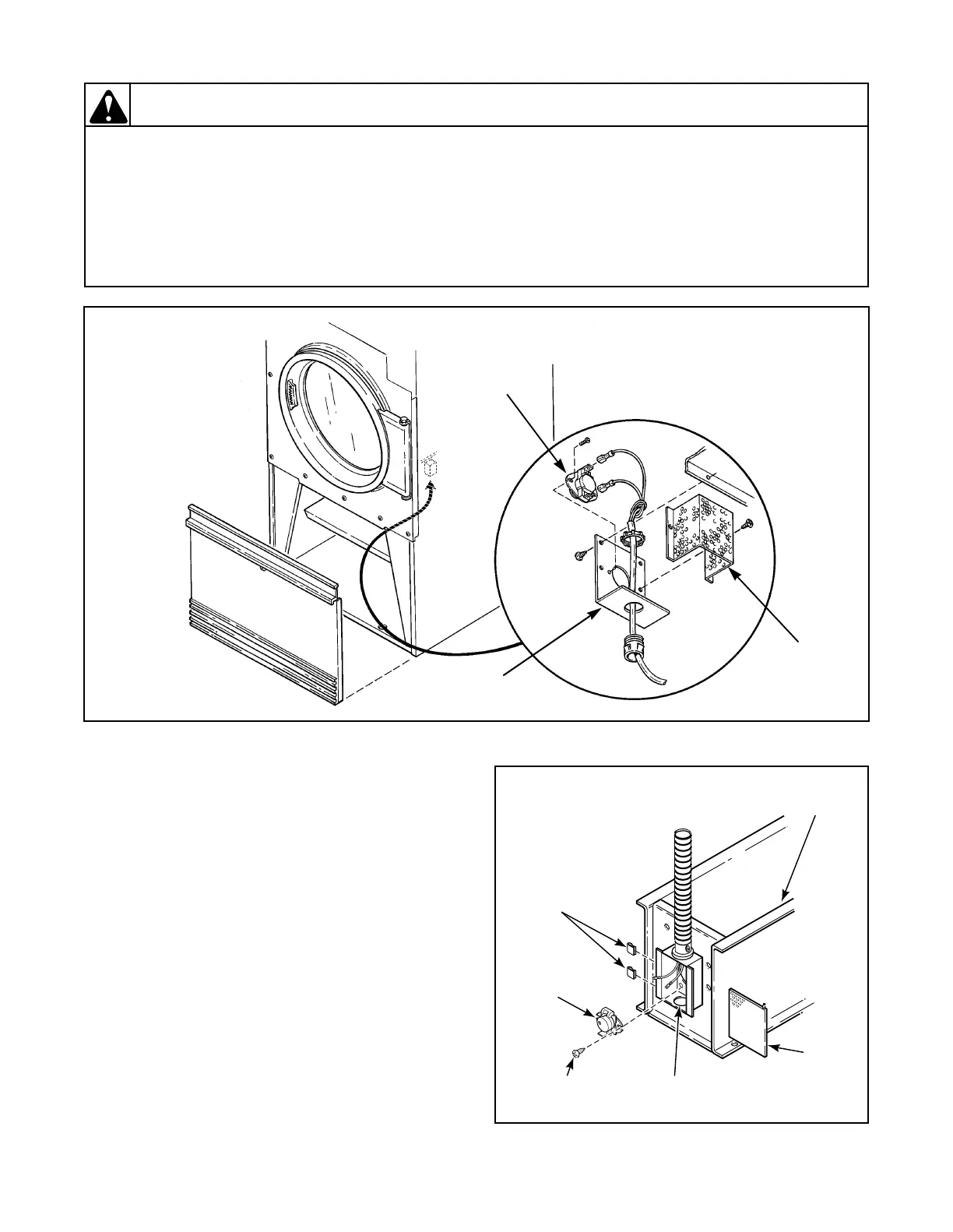

Figure 19
THERMOSTAT
COVER
MOUNTING
BRACKET
TU076-SV
Figure 20
HEATER BOX
ASSEMBLY
GRILL
COVER
SCREW
THERMOSTAT
HOUSING
HIGH LIMIT
THERMOSTAT
COVER
CLIPS
T027SE1A
