Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
96. AIRFLOW SWITCH
NOTE: Depending on the model, the airflow switch
will be found either on the rear of the stove
assembly, directly below the wire-way or within the
wire way on the rear of the tumbler.
a. Remove wire-way cover plate (older models),
or airflow switch box cover (newer models).
b. Disconnect wires from switch. Refer to
Figure 28.
NOTE: Refer to wiring diagram when rewiring
airflow switch.
c. Remove screw(s) holding switch and mounting
bracket to rear of tumbler (older models); or to
switch box (newer models). Refer to Figure 28.
d. Remove two screws holding switch to
mounting bracket.
NOTE: After reinstalling airflow switch and
mounting bracket into switch box, adjust switch.
Refer to Adjustments Section.

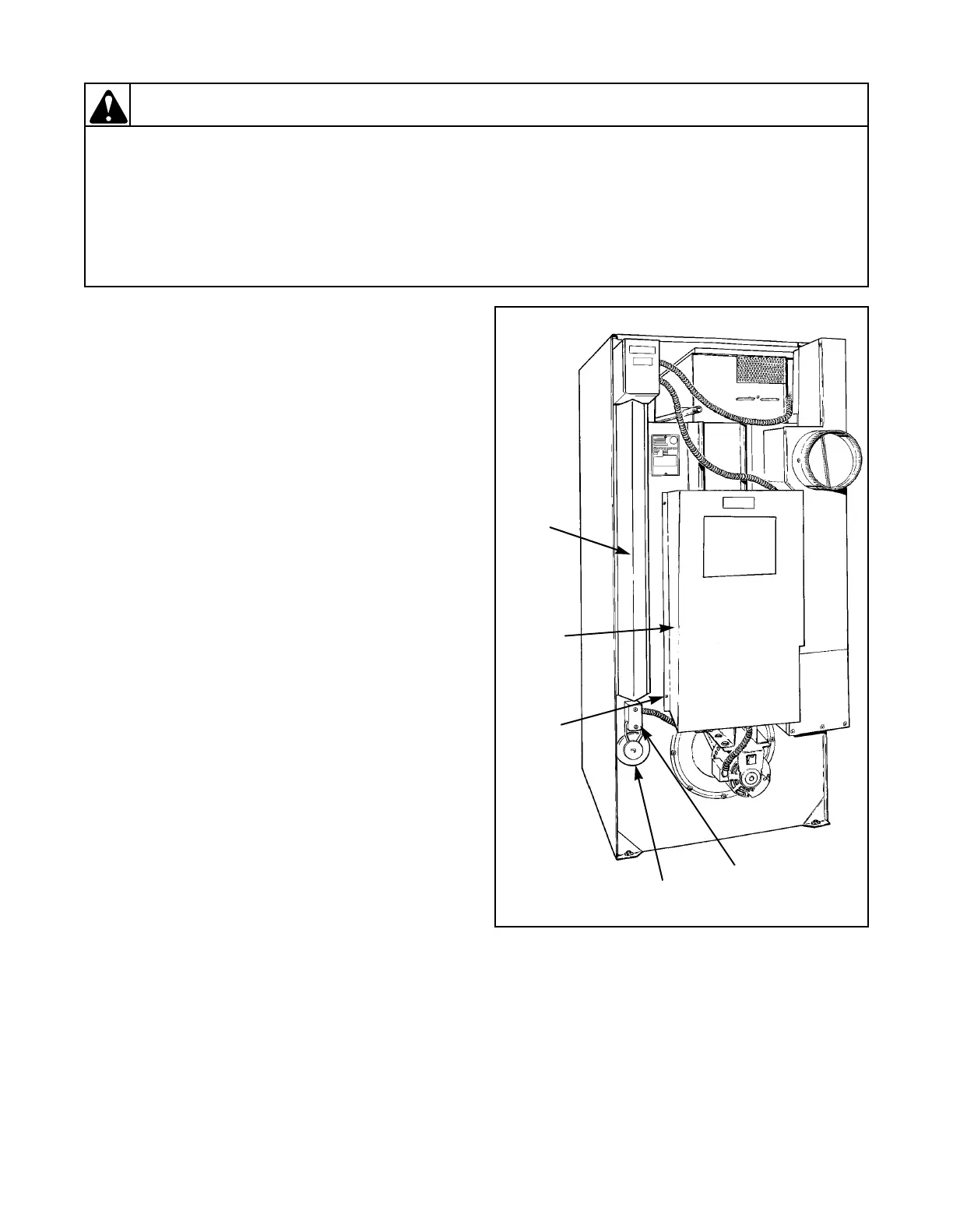

Figure 27
TU072-SV
WIRE-WAY
COVER
DRIVE
GUARD
DRIVE
GUARD
ATTACHING
SCREW
AIRFLOW
SWITCH
SWITCH
BOX
COVER
