Alliance Laundry Systems WF150 - Dimensions WF185, IWF185, IWF040, CWF185, CWF040

3
860.1 [33.86]
916.1 [36.07]82 [3.23]
510 [20.08]28 [1.1] 260 [10.24]
84 [3.31]
33 [1.3]
220 [8.66]
936 [36.85]
894 [35.2]
969 [38.15]
843 [33.19]
84 [3.31]
310 [12.2]
225 [8.86]
L
209 [8.23]
K
E
332 [13.07]
A
267 [10.51]
202 [7.95]
106 [4.17]
B
C
D
I
109 [4.29]
G
F
1175 [46.26]
1204 [47.4]
70 [2.76]
390 [15.35]
780 [30.71]
640 [25.2] 70 [2.76]
17

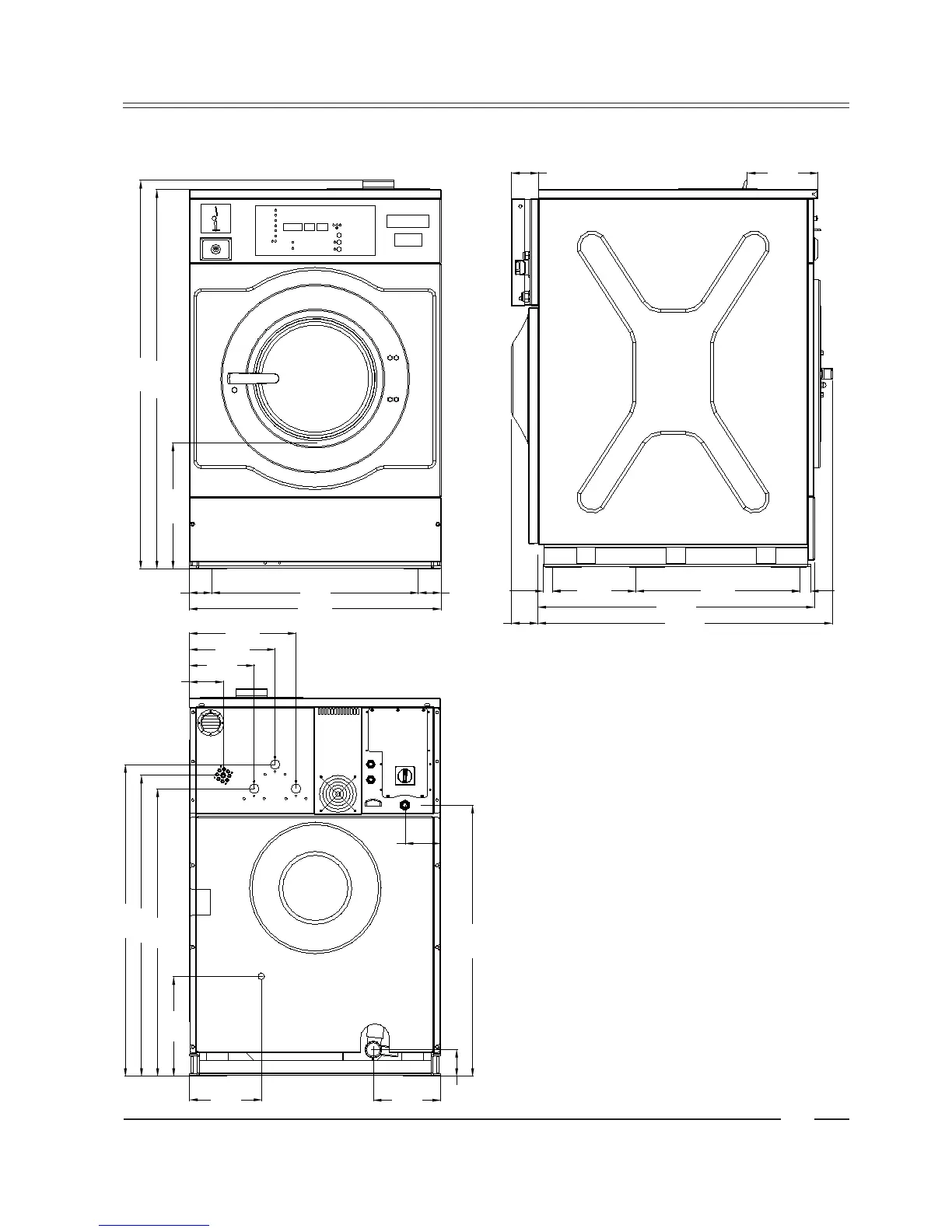

Dimensions WF185, IWF185, IWF040, CWF185, CWF040
Legend: metric mm [inches]
 A. Ventilation soap dispenser
 B. Liquid soap connections
 C. Hard water connections 3/4"
 D. Warm water connections 3/4"
 E. Soft water connections 3/4"
 F. Main switch
 G.Electrical connections
 I. Ventilation tub
 K. Drain valve
 L. Steam connections
