Alliance Laundry Systems WF150 - Mounting Bolt Hole Locations for Machines, WF185, IWF185, IWF040, CWF185, CWF040

4
770 [30.31]
Ø22 [Ø0.87]
260 [10.24]
28 [1.1]
33 [1.3]
70 [2.76]
510 [20.08]
831 [32.72]
70 [2.76] 640 [25.2]
780 [30.71]
26
4

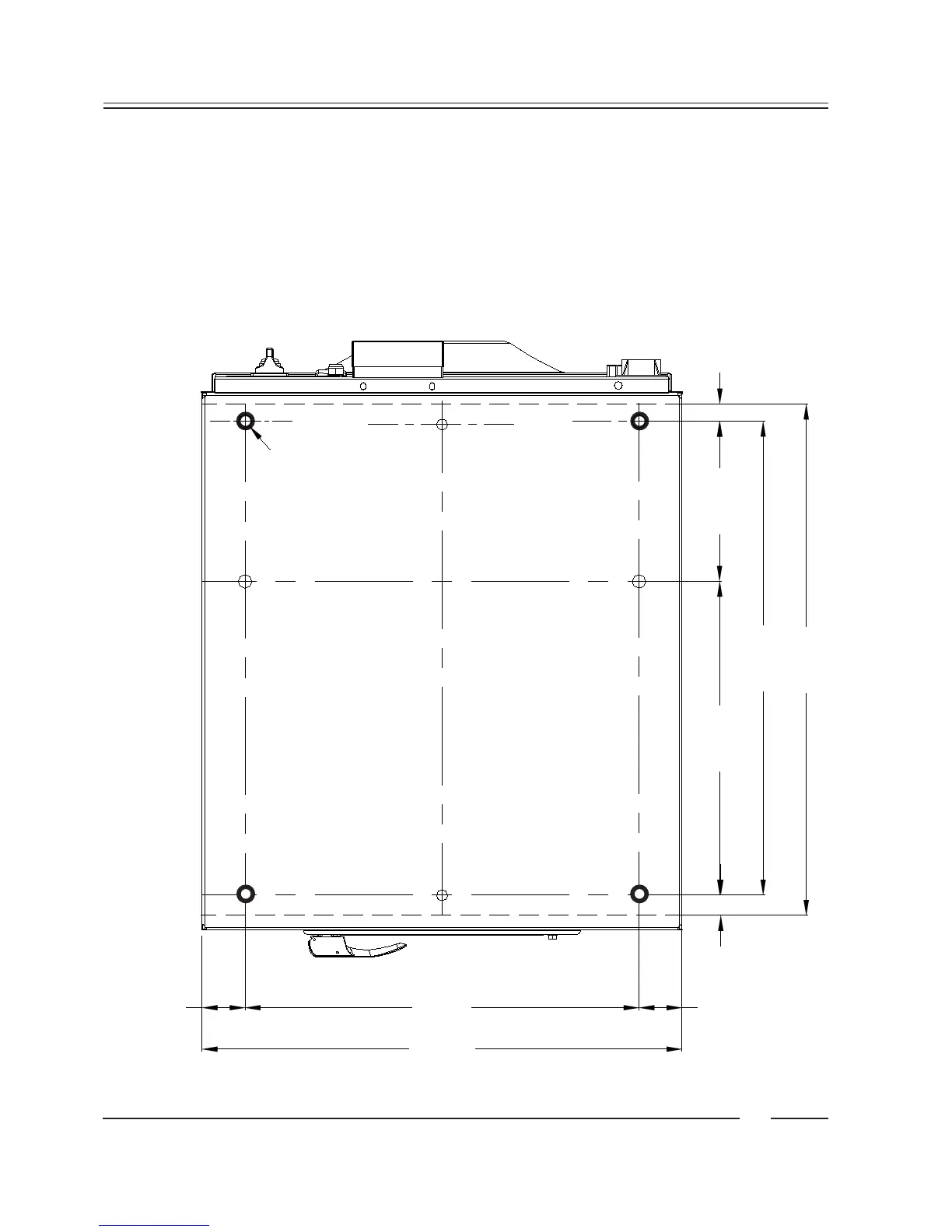

Mounting Bolt Hole Locations for machines, WF185, IWF185, IWF040, CWF185,
CWF040
Legend: metric mm [inches]
