Section IX
Collecting Audit Information
This feature allows the owner to retrieve audit
information stored in the washer by pressing a
sequence of pads on the control. For an explanation of
the audit options available, see the Audit Options List
on this page.
How to Enter Audit Feature
1. Control must be in “Special Mode” to start. Refer
to Section VII.
2. While pressing and holding the NORMAL keypad
with one hand, press the DELICATES keypad with
the other hand.

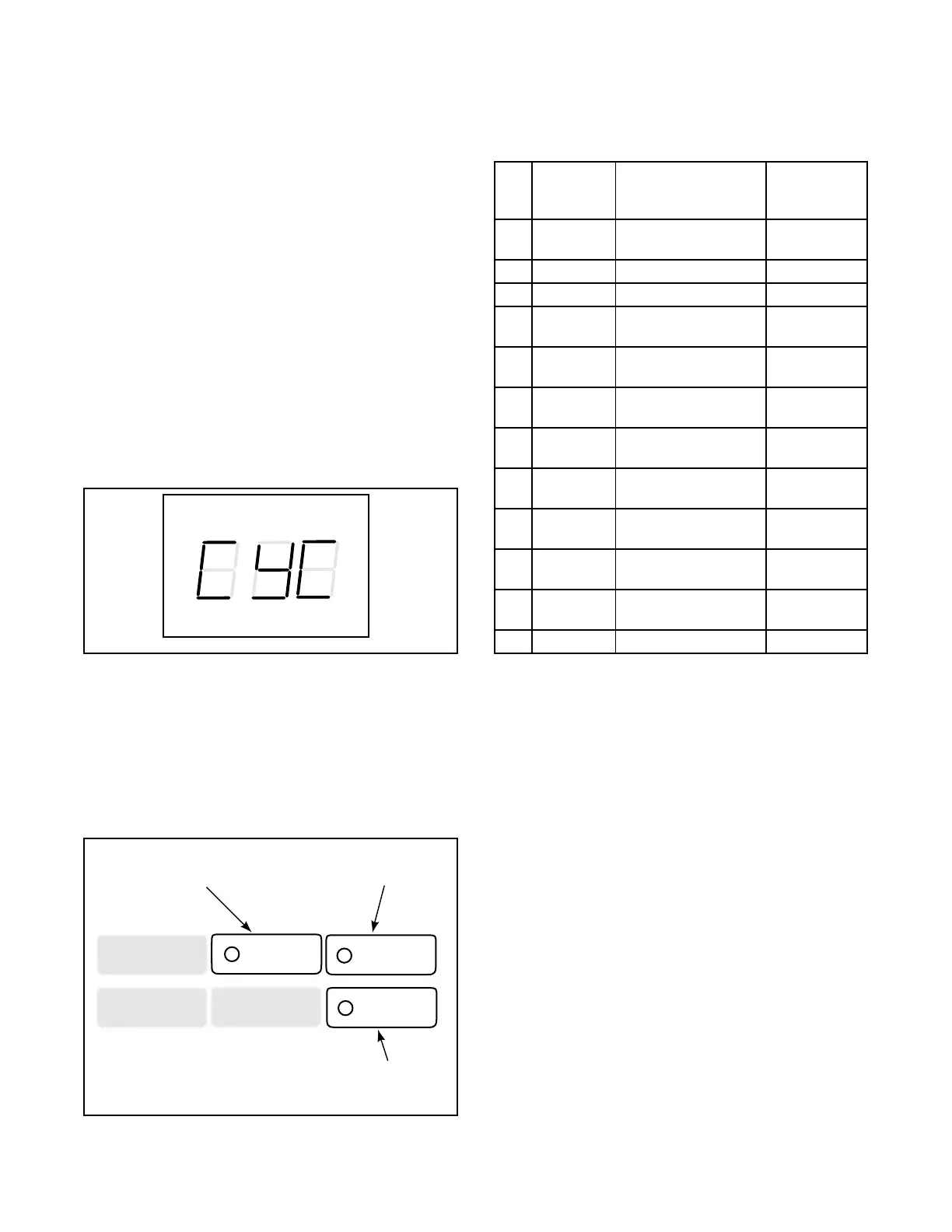

3. The VFD will change from “SPC” to “CyC.” See
Figure 97. “CyC” is the first Audit Option.
If the procedure did not work, the control will return to
the “Ready” mode. See Figure 2.
How to Read Audit Data
1. Use the DELICATES (+) or COLD (-) keypads to
scroll through various options until the desired
option is displayed in the VFD. Refer to the Audit
Options List, Chart 6, for an explanation of the
audit options available. See Figure 98.
Figure 97
Figure 98
WASH
RINSE SOAK
SPIN
PRICE TIME REMAINING
INSERT COINS UNBALANCE
C137IE1B
NORMAL
HOT
DELICATES
COLD
PERM
PRESS
WARM
Press this pad (enter)
to choose a selected
value or option
Press this pad (+)
to scroll forward
Press this pad (-)
to scroll back
C138IE1B
Chart 6: Audit Options List
#
VFD
Display
Description
Total Audit
Range
1 “CyC”
Total # of machine
cycles
0 - 65,535
2 “CnS” Total # of coins 0 - 16,777,215
3 “HCC” Total # of HOT cycles 0 - 65,535
4 “rCC”
Total # of WARM
cycles
0 - 65,535
5 “CCC”
Total # of COLD
cycles
0 - 65,535
6 “ACH”
Total # of Special
Vend A HOT cycles
0 - 65,535
7 “ACr”
Total # of Special
Vend A WARM cycles
0 - 65,535
8 “ACC”
Total # of Special
Vend A COLD cycles
0 - 65,535
9 “COP”
Total # of coin vault
openings
0 - 65,535
10 “dOP”
Total # of service door
openings
0 - 65,535
11 “PFL”
Total # of power
failures
0 - 255
12 “dnL” Total # of downloads 0 - 255
