Section II
Electronic Control Identification
Select Cycle Pads
(Figure 1)
SELECT CYCLE pads are used to select the specific
washer cycle. These pads include NORMAL, PERM
PRESS, and DELICATES. These pads allow the user
to select a cycle other than the default cycle (PERM
PRESS). The SELECT CYCLE key pads are active
only during the first fill cycle of the washer. The
selected cycle is indicated by the light (LED) on the
pad.
Select Wash Temp Pads
(Figure 1)
SELECT WASH TEMP pads are used to select the
temperature of the water used for the wash fill. These
pads include HOT, WARM, and COLD. These pads
allow the user to select a water temperature other than
the default setting (WARM). The SELECT WASH
TEMP pads are active only during the first fill cycle of
the washer. The selected temperature is indicated by
the light (LED) on the pad.
Both the WASH TEMP pads and the SELECT
CYCLE pads are used in various combinations for
programming cycles, retrieving audit information,
running diagnostic tests, and other hidden operations.
These instructions cover the manual programming and
data retrieval options.

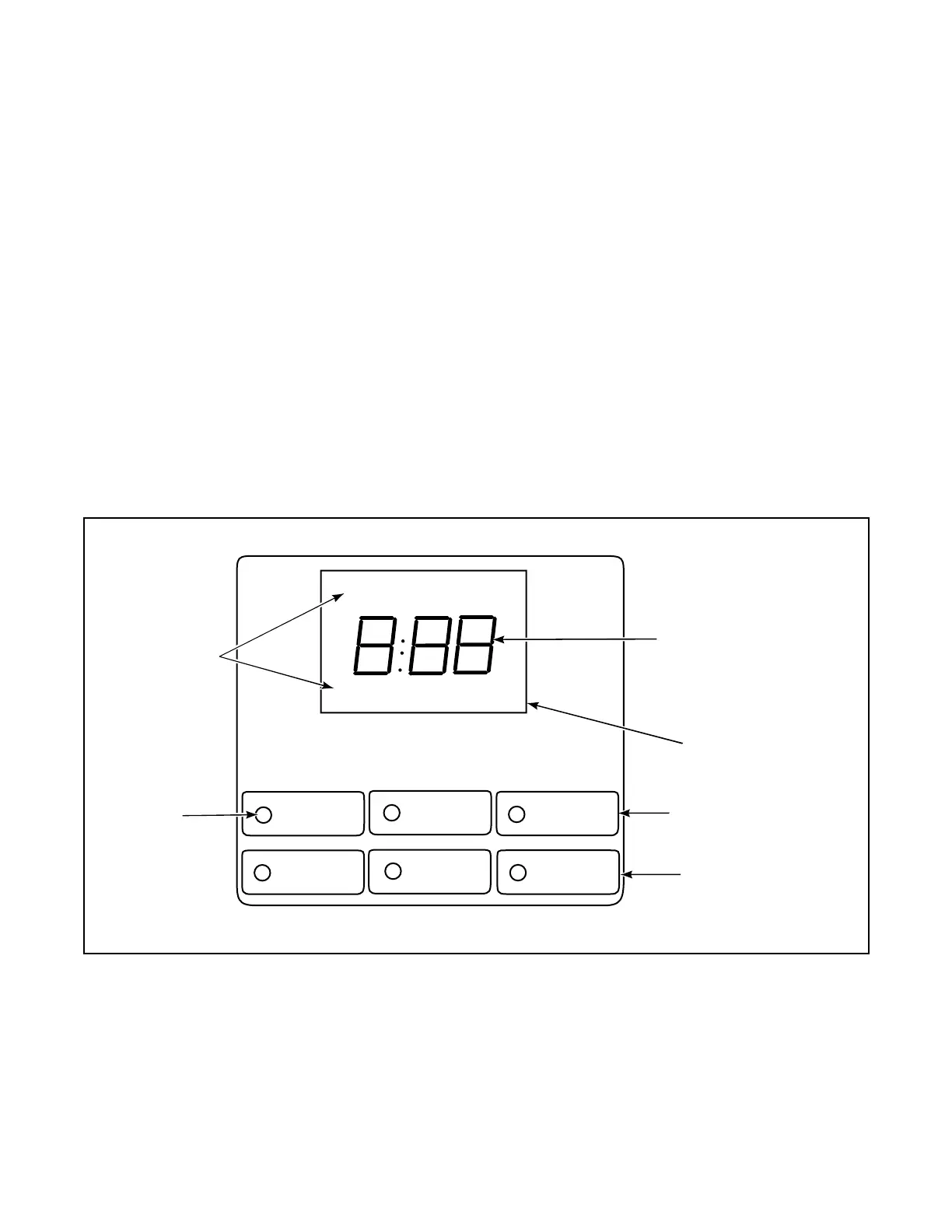

Figure 1
