AT-8000 Series Fast Ethernet Switches Installation Guide
17
AT-8024GB The AT-8024GB is a 24-port 10/100Base-TX managed Fast Ethernet
switch with two GBIC expansion slots. The GBIC expansion slots are
compatible with fiber optic GBIC modules. The 10/100Base-TX twisted
pair ports feature RJ-45 connectors with a maximum operating distance
of 100 meters (328 feet). Refer to ”10/100Base-TX Twisted Pair Ports” on
page 24 and ”Gigabit Interface Converter (GBIC) Expansion Slots” on
page 28 for additional information.

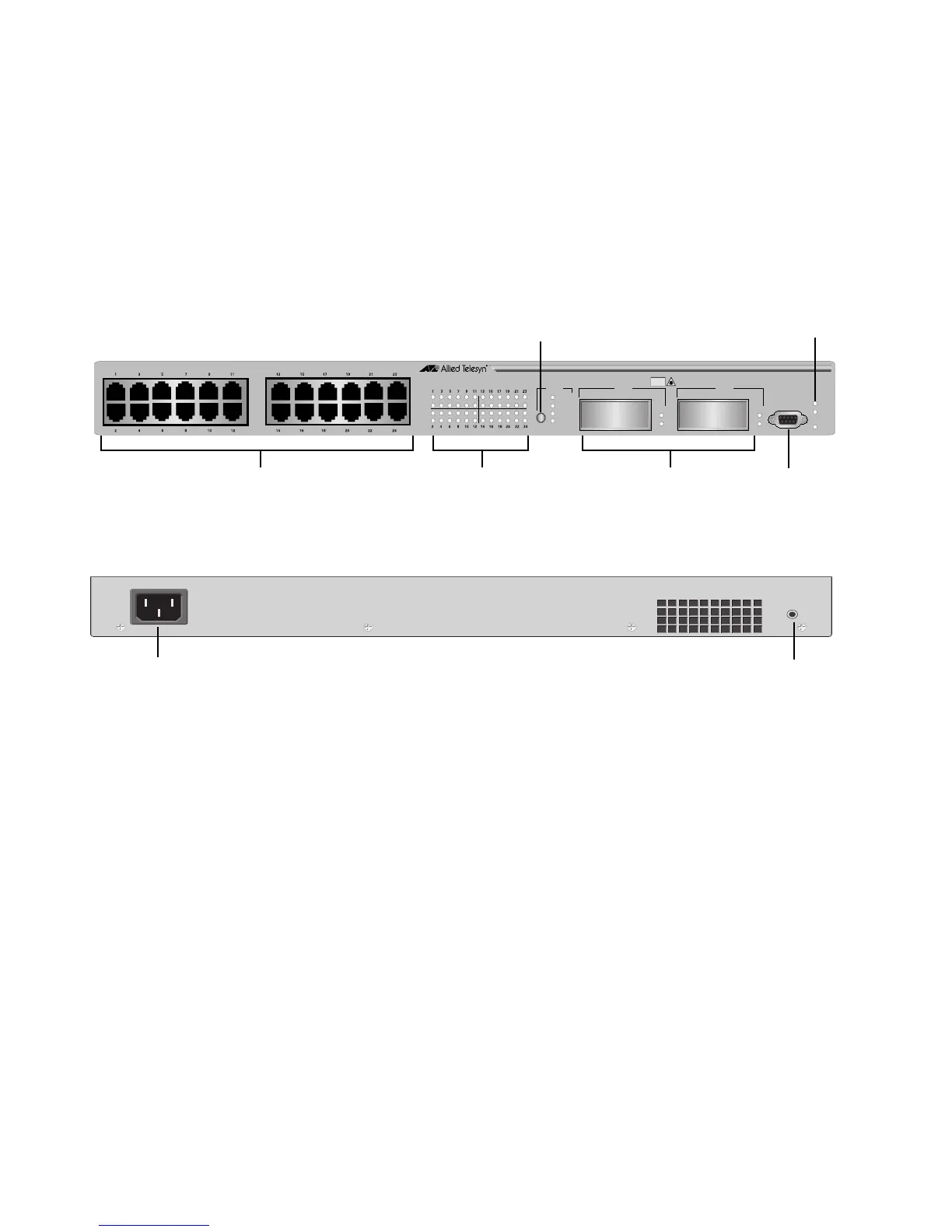

Figure 6 illustrates the front and back panels of the AT-8024GB switch.
Figure 6. AT-8024GB Front and Back Panels
Link
Mode
Link
Mode
100
FULL
ACT
MODE
COL
LINK
MODE
PORT A
LINK
MODE
PORT B
FAULT
MASTER
PWR
AT-8024GB
10Base-T/ 100Base-TX Fast Ethernet Switch
RS-232 TERMINAL PORT
CLASS 1
LASER PRODUCT
DO NOT STARE
INTO BEAM
GBIC Expansion
RS-232
10/100Base-TX Ports
Port LEDs
Terminal Port
System LEDs
LED Mode Select Button
Slots
RESET
AC Power
Connector
Reset
Button
