Overview
20
AT-8026T The AT-8026T switch has 24 10/100Base-TX ports and two twisted pair
10/100/1000Base-T ports. The Gigabit ports feature RJ-45 connectors
with a maximum operating distance of 100 meters (328 feet). The 10/
100Base-TX twisted pair ports features RJ-45 connectors with a
maximum operating distance of 100 meters (328 feet). Refer to ”10/
100Base-TX Twisted Pair Ports” on page 24 and ”10/100/1000Base-T
Twisted Pair Ports” on page 26 for further information.

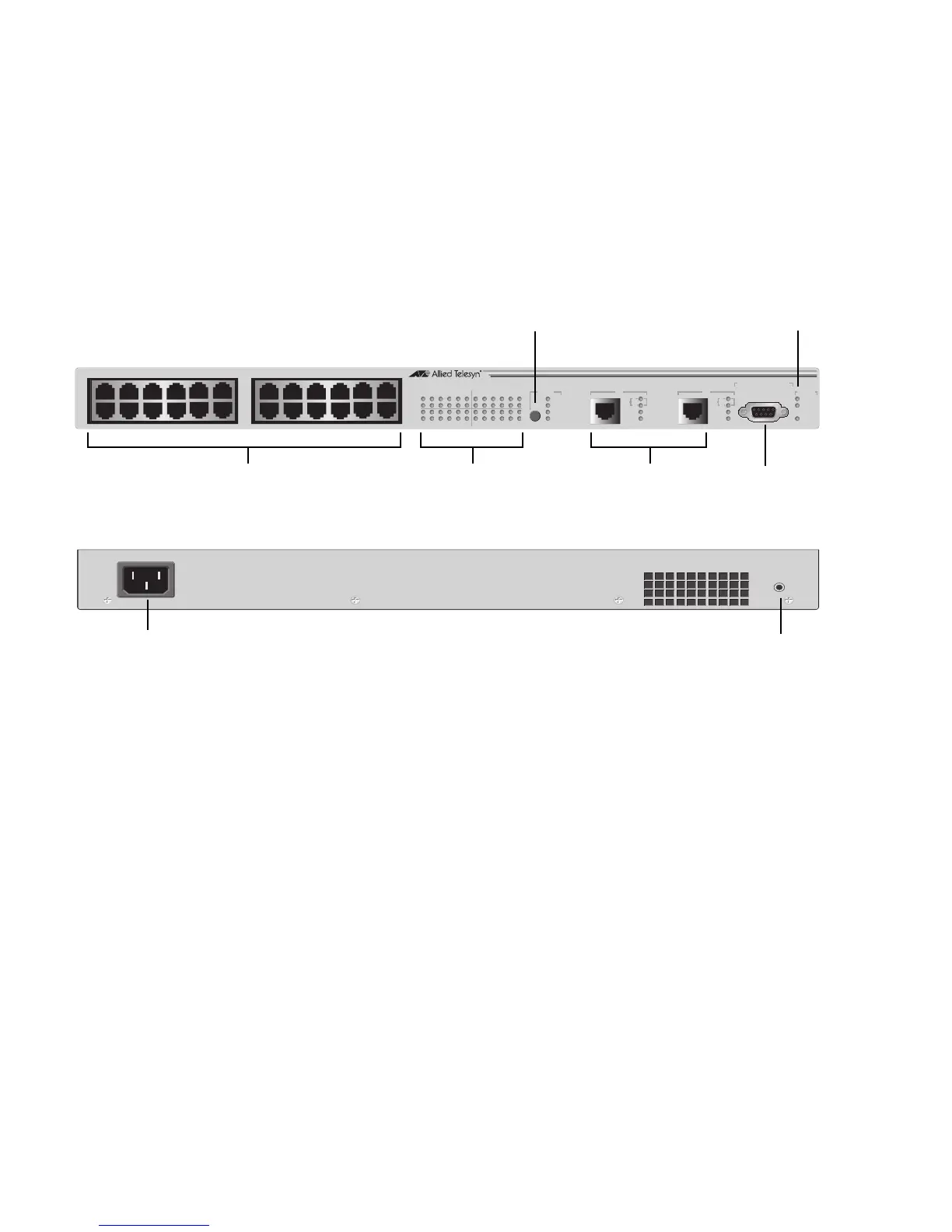

Figure 9 illustrates the front and back panels of the AT-8026T switch.
Figure 9. AT-8026T Front and Back Panels
1357911
24681012
13 15 17 19 21 23
14 16 18 20 22 24
1 3 5 7 9 11131517192123
2 4 6 8 10 12 14 16 18 20 22 24
LINK
MODE
LINK
MODE
COL
100
FULL
ACT
FAULT
MASTER
PWR
2625MODE
AT- 8 0 2 6 T
10Base-T/ 100Base-TX Fast Ethernet Switch with 10/100/1000Base-T Uplinks
STATUS
RS-232 TERMINAL PORT
10
100
LINK
1000
FULL
ACT
10
100
LINK
1000
FULL
ACT
10/100/1000BASE-T 10/100/1000BASE-T
RESET
RS-232
10/100Base-TX Ports
Port LEDs
Terminal Port
System LEDs
LED Mode Select Button
10/100/1000Base-T
Ports
AC Power
Connector
Reset
Button
