AT-8024M The AT-8024M is a 24-port 10/100Base-TX managed Fast Ethernet switch
with two module expansion slots. The expansion slots are compatible
with 100Base and 1000Base fiber optic and twisted pair port expansion
modules and the AT-STACKM stacking module. The 10/100Base-TX
twisted pair ports feature RJ-45 connectors with a maximum operating
distance of 100 meters (328 feet). Refer to ”10/100Base-TX Twisted Pair
Ports” on page 24 and ”Module Expansion Slots” on page 29 for
additional information.

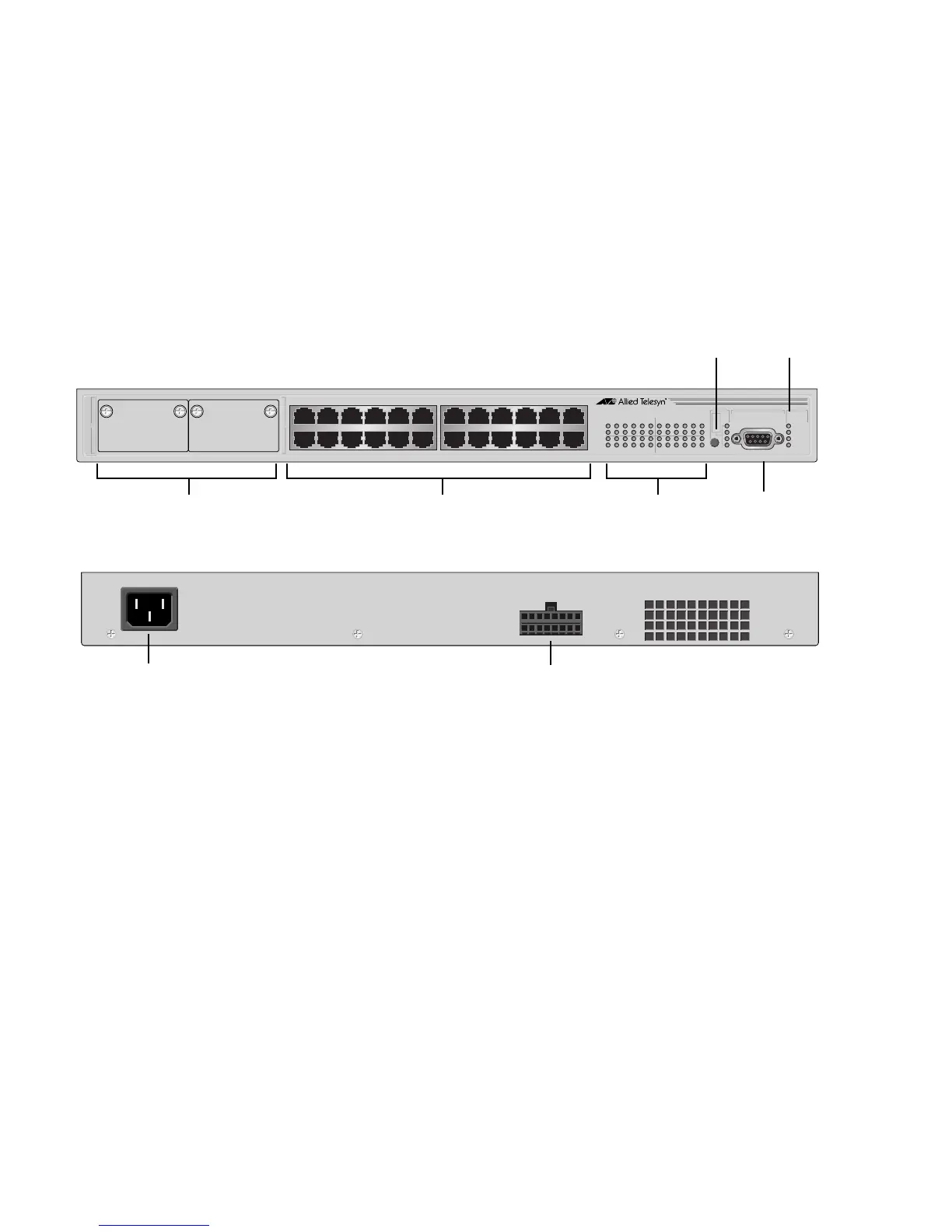

Figure 7 illustrates the front and back panels of the AT-8024M switch.
Figure 7. AT-8024M Front and Back Panels
System
RS-232
10/100Base-TX Ports
Port LEDs
LED Mode
Terminal Port
LEDs
Select Button
Module Expansion Slots
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 1012141618202224
LINK
MODE
LINK
MODE
COL
100
FULL
ACT
FAU LT
RPS
MASTER
PWR
MODE
AT-8024M
10Base-T/ 100Base-TX Fast Ethernet Switch
26
1357911
2 4 6 8 10 12
13 15 17 19 21 23
14 16 18 20 22 24
RS-232 TERMINAL PORT
STAT US
25
AC Power
Connector
RPS
Connector
