AT-8000 Series Fast Ethernet Switches Installation Guide
89
MT-RJ Connector
This connector is used on the AT-8016F/MT Fast Ethernet switch and
AT-45/MT expansion module. Figure 43 illustrates a MT-RJ connector.

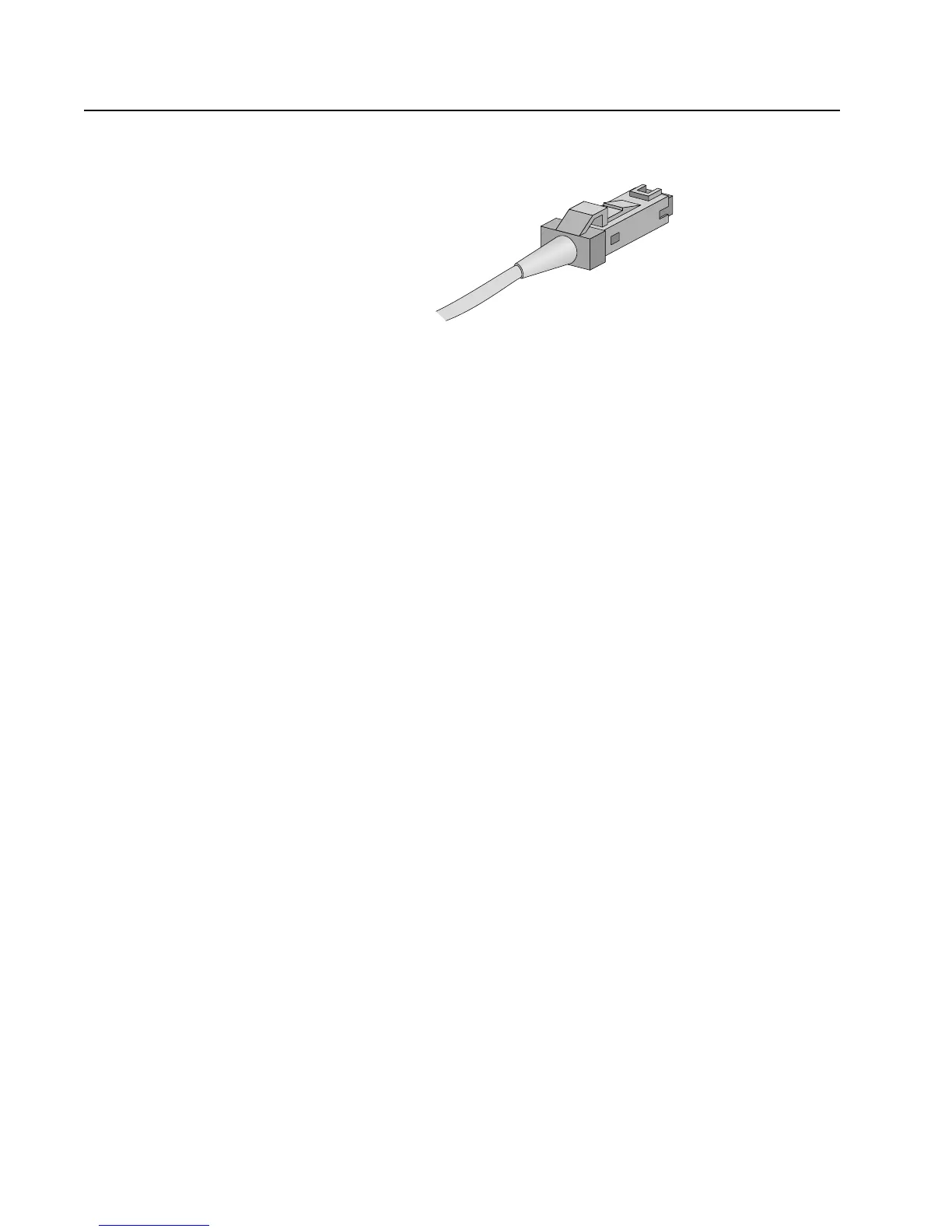

Figure 43. MT-RJ Connector
