Installation
8
Site Requirements
Make sure you observe the following site requirements:
❑
Place the switch in a dust-free and moisture-free environment.
❑
Do not block ventilation openings on the unit. Make sure there is
proper heat dissipation from and adequate ventilation around the
switch.
❑
Make sure the AT-FS704 power is accessible and cables can be
connected easily. Use dedicated power circuits or power conditioners
to supply power to the unit, and make sure that the power cord is fully
inserted in the AC power connector.
❑
The power outlet should be within 1.82 m (6 ft) of the device.
❑
Cabling should be away from sources of electrical noise such as radios,
transmitters, broadband amplifiers, power lines and fluorescent
fixtures.
❑
Do not place objects on top of the switch.
❑
Ensure the surface supports at least 1.2 Kg.
Desktop Installation
When installing the AT-FS704 on a desktop or shelf, first attach the rubber feet
included with the device. Attach these cushioning feet on the bottom at each
corner of the device. Allow enough ventilation space between the device and the
objects around it. See Figure 5 for placement of rubber feet.

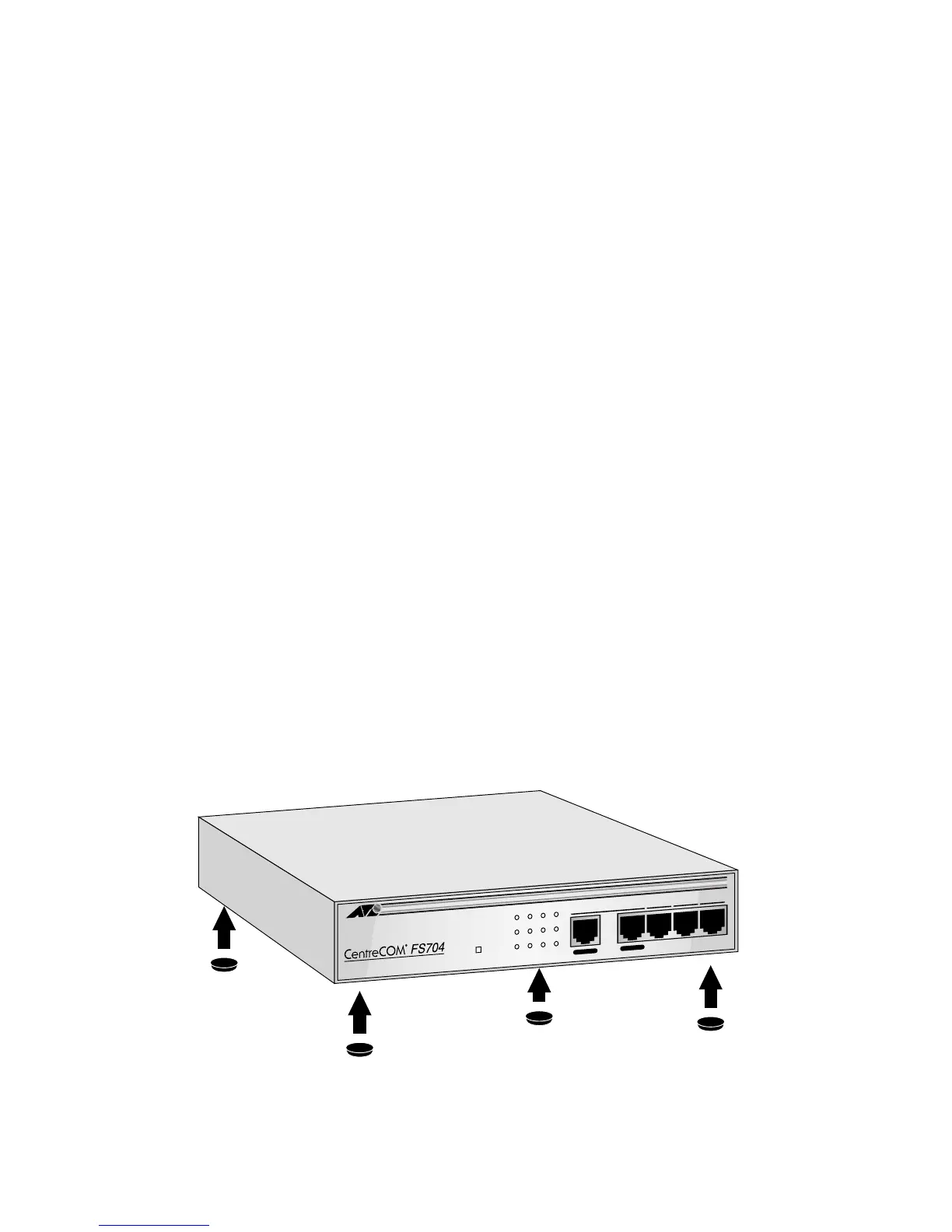

Figure 5
AT-FS704 Installed on a Desktop or Shelf
1
=
X 2X 3X 4X
10BASE-T/100BASE-TX
4 PORT ETHERNET SWITCH
100M
LINK/ACT
FULL DUP
COLN
POWER
1234
To HUB To PC
