Allied Telesis AT-FS704 User Manual

Installation
10
PC- to-Switch Installation
A PC can be connected to the AT-FS704 with a two-pair Category 5 UTP/STP
RJ45 straight cable. The PC (equipped with a RJ45 10/100 Mbps jack) should
be connected to any of the four ports (1X-4X). See Figure 6.

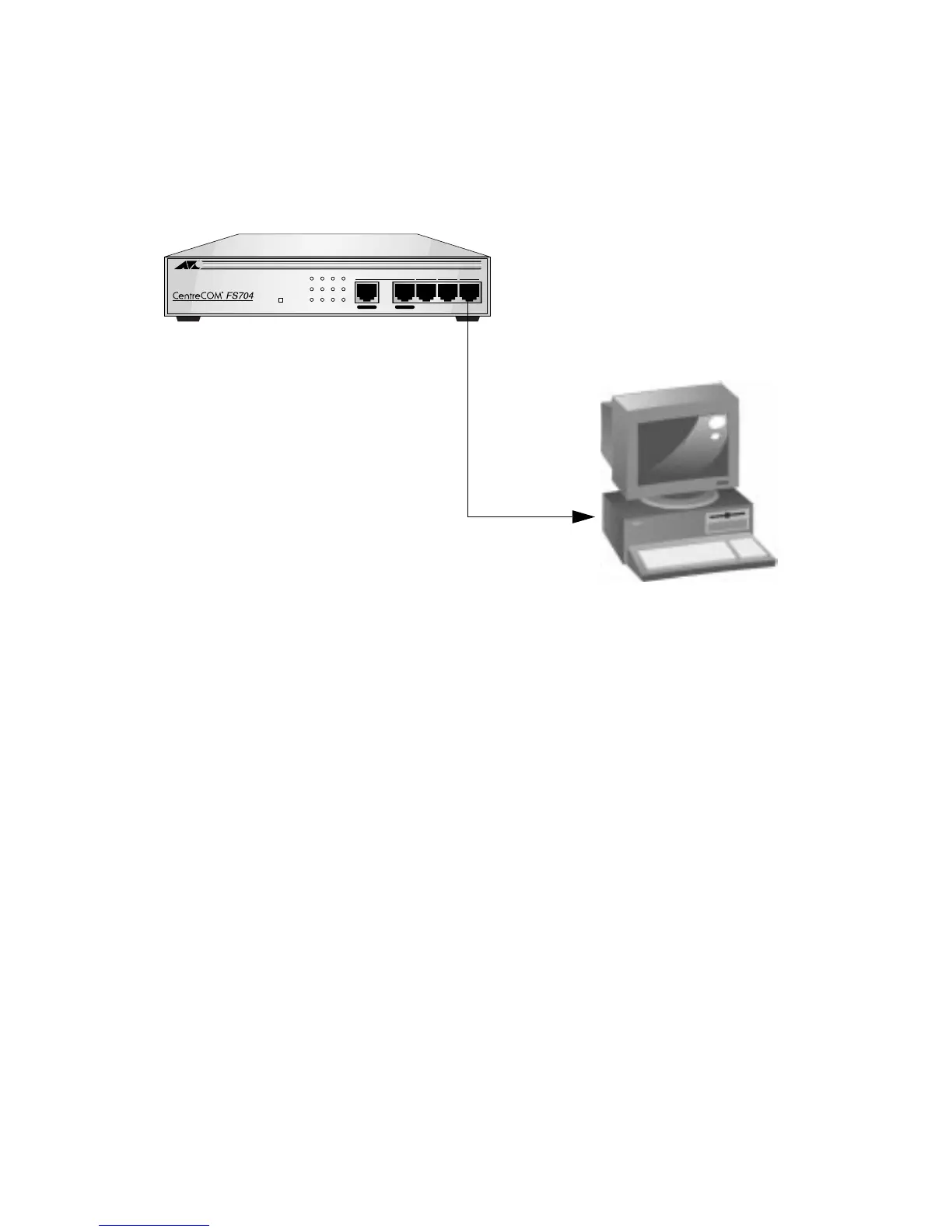

Figure 6
AT-FS704 Switch Connected to a PC or Workstation
1= X 2X 3X 4X
10BASE-T/100BASE-TX
4 PORT ETHERNET SWITCH
100M
LINK/ACT
FULL DUP
COLN
POWER
1234
To HUB To PC
RJ45 Jack

Allied Telesis AT-FS704 Specifications

General

Brand	Allied Telesis
Model	AT-FS704
Category	Switch
Language	English
