Checks Pass Fail
No electrical leakage
Unit is properly grounded
All electrical terminals properly
covered
Indoor and outdoor units are
solidly installed
All pipe connection points do
not leak
Water drains properly from
drain hose
All piping is properly insulated
Unit performs COOL function
properly
Unit performs HEAT function
properly
Indoor unit louvers rotate
properly
Indoor unit responds to
wireless remote
Table 7. Test Run Checklist
Double-Check Pipe Connections
During operation, the pressure of the refrigerant circuit
will increase. This may reveal leaks that were not present
during your initial leak check. Take time during the Test
Run to double-check that all refrigerant pipe connection
points do not have leaks.
• Using remote control, return unit to the normal
operating temperature.
• Using insulation tape, wrap the indoor refrigerant pipe
connections that you left uncovered during the indoor
unit installation process.
Ambient Temperature is Below 63°F (17°C)
You can’t use the remote controller to turn on the COOL
function when the ambient temperature is below 17°C. In
this instance, you can use the MANUAL CONTROL button
to test the COOL function.
• Lift the front panel of the indoor unit, and raise it until
it clicks in place.
• The MANUAL CONTROL button is located on the
right-hand side of the unit. Press it one time to select
the COOL function. First push is FC force cooling,
which will display on the wall unit as FC which is used
for high speed charging 30 minute time.
• Perform Test Run as normal.
• Push the button one time is for FC force cooling, which
will displayed on wall unit as FC. This is used for high
speed charging 30 minute time.
• Push the button two times for cooling set 75ºF and unit
is in auto mode. Temperature is set at 75°F with no
changing of set temperature.
Manual control
button

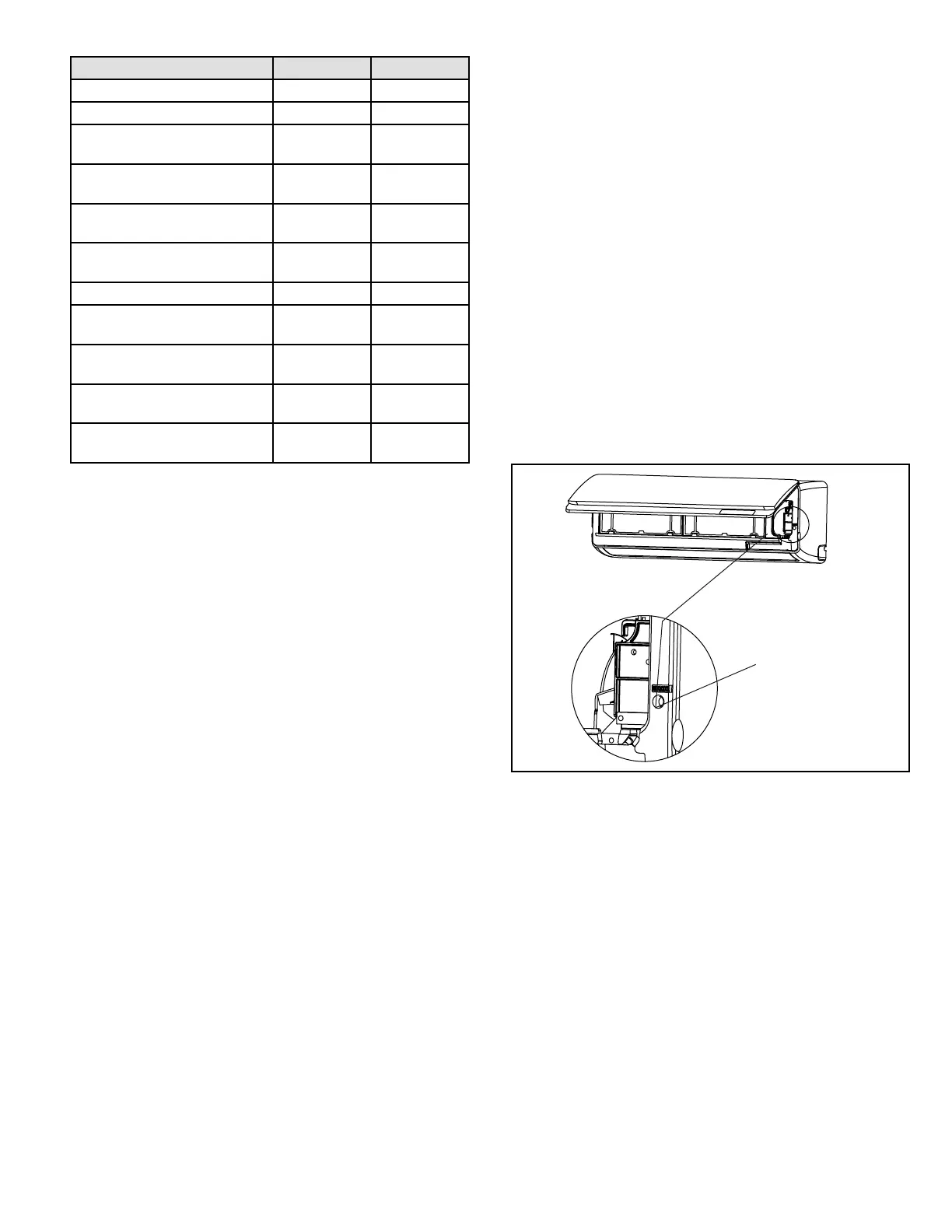

Figure 22. Manual Button Location
