Allied 4DHV Mini-Split Series - AHRI System Matches

508067-01 Issue 2016 Page 9 of 75
DWH124S4
Left Rear Hole
2-1/2 in. (64 mm)
diameter
Right Rear Hole
2-1/2 in. (64 mm)
diameter
21-3/4 (553)
11-7/8
(301)

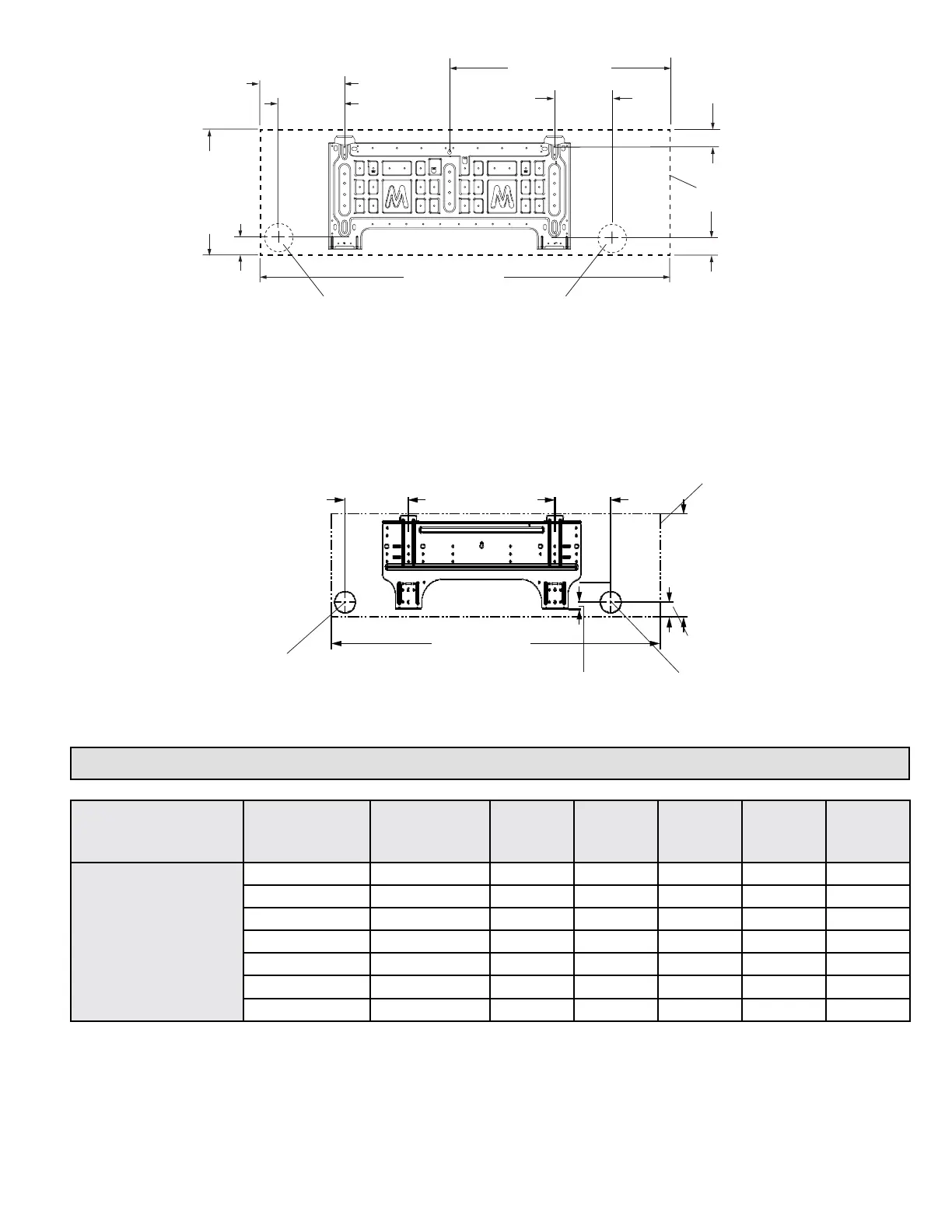

Wall-Mount
Unit Outline
2-1/8 (54)
42-1/2 (1080)
13-1/4 (337)
1-7/8
(48)
6-7/8 (175)
8-5/8 (219)
1-7/8 (48)
DWH136S4
10-7/8
(276)
10-1/8
(257)
46-3/4 (1187)
13-1/2 (343)
Left rear side
refrigerant pipe inlet
2-1/2 (64) diameter
Right rear side
refrigerant pipe inlet
2-1/2 (64) diameter
Indoor unit
outline
7/8 (22)
1-3/4 (44)
Indoor Unit Type Outdoor Unit Indoor Unit
Cooling
Capacity
SEER EER
Heat
Capacity
47F
HSPF
(IV)
Wall-Mounted
Non-Ducted
4DHV1S09S-1L DWH109S4-1L 9000 19 11.5 10000 10
4DHV1S09S-1P DWH109S4-1P 9000 18 11 9000 9.5
4DHV1S12S-1L DWH112S4-1L 12000 19 10.5 12000 9.5
4DHV1S12S-1P DWH112S4-1P 12000 19 11 12000 9.5
4DHV1S18S-1P DWH118S4-1P 18000 19 11 18000 10
4DHV1S24S-1P DWH124S4-1P 24000 17 9.5 24000 9.5
4DHV1S36S-1P DWH136S4-1P 36000 16 8.6 36000 8.5
Ratings are AHRI certied to AHRI Standard 210/240-2008
Cooling Ratings - 80°F dry bulb/67°F wet bulb entering indoor coil air and 95°F wet bulb/75°F dry bulb outdoor air temperature.
High Temperature Heating Ratings - 70°F dry bulb/60°F wet bulb entering indoor coil air and 47°F dry bulb/43°F wet bulb outdoor air temperature.
Low Temperature Heating Ratings - 70°F dry bulb/60°F wet bulb entering indoor coil air and 17°F dry bulb/15°F wet bulb outdoor air temperature.
To convert HSPF from Region IV to Region V - Divide by 1.15.
AHRI System Matches
