Allied 4DHV Mini-Split Series - Dimensions; Wall Mounted Indoor Units

508067-01 Issue 2016 Page 7 of 75
Size
A B C
in. mm in. mm in. mm
-09 29-5/8 752 11-3/8 289 8-5/8 219
-24 32-3/4 832 11-3/4 298 8-3/4 222
-18 39-1/8 994 12-1/2 318 9-7/8 251
-24 44 1118 13-1/4 337 10-1/4 260
-36 46-3/4 1187 13-1/2 343 10-1/4 260
A
B
C
TOP VIEW
FRONT VIEW
BOTTOM VIEW
SIDE VIEWSIDE VIEW

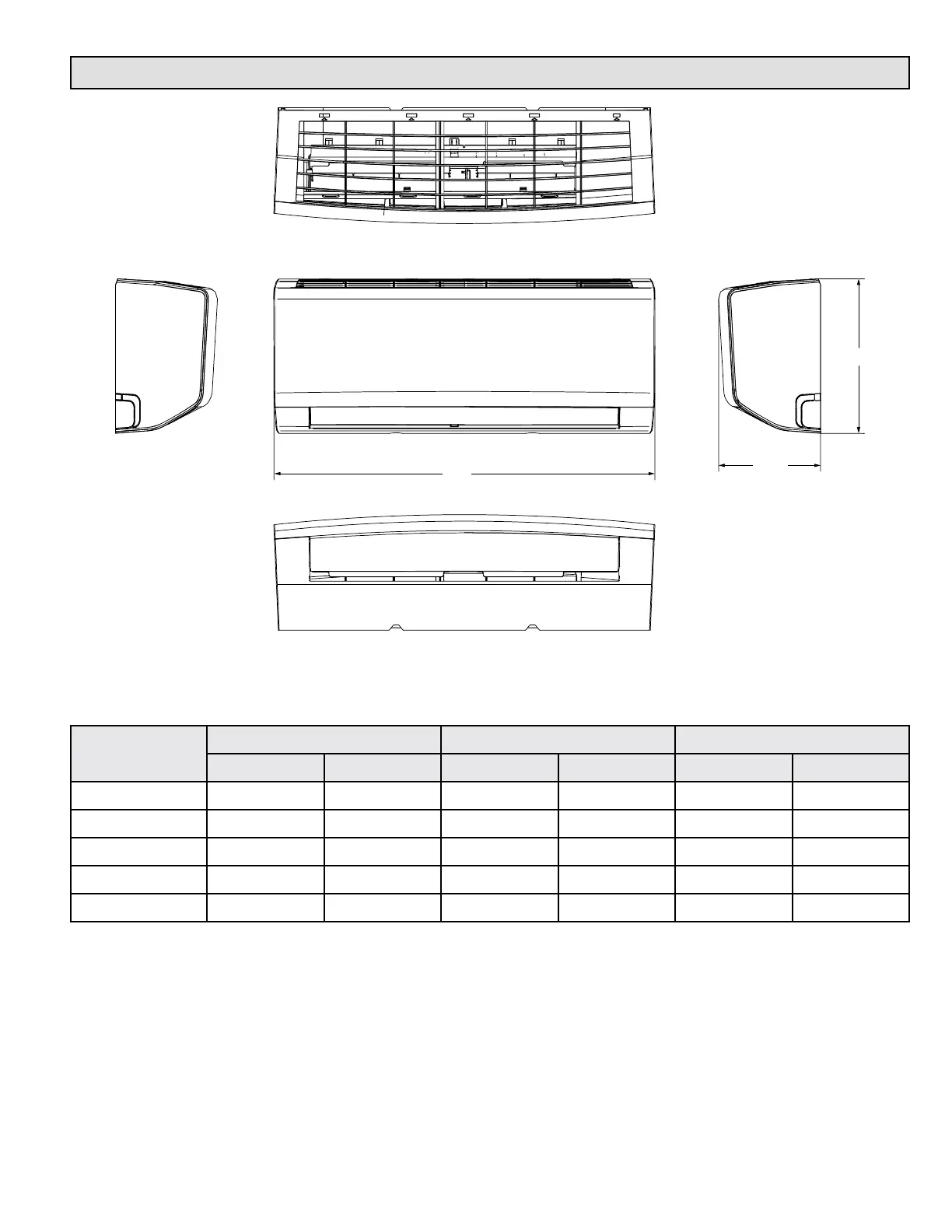

Dimensions - Wall Mounted Indoor Units - Inches (MM)
