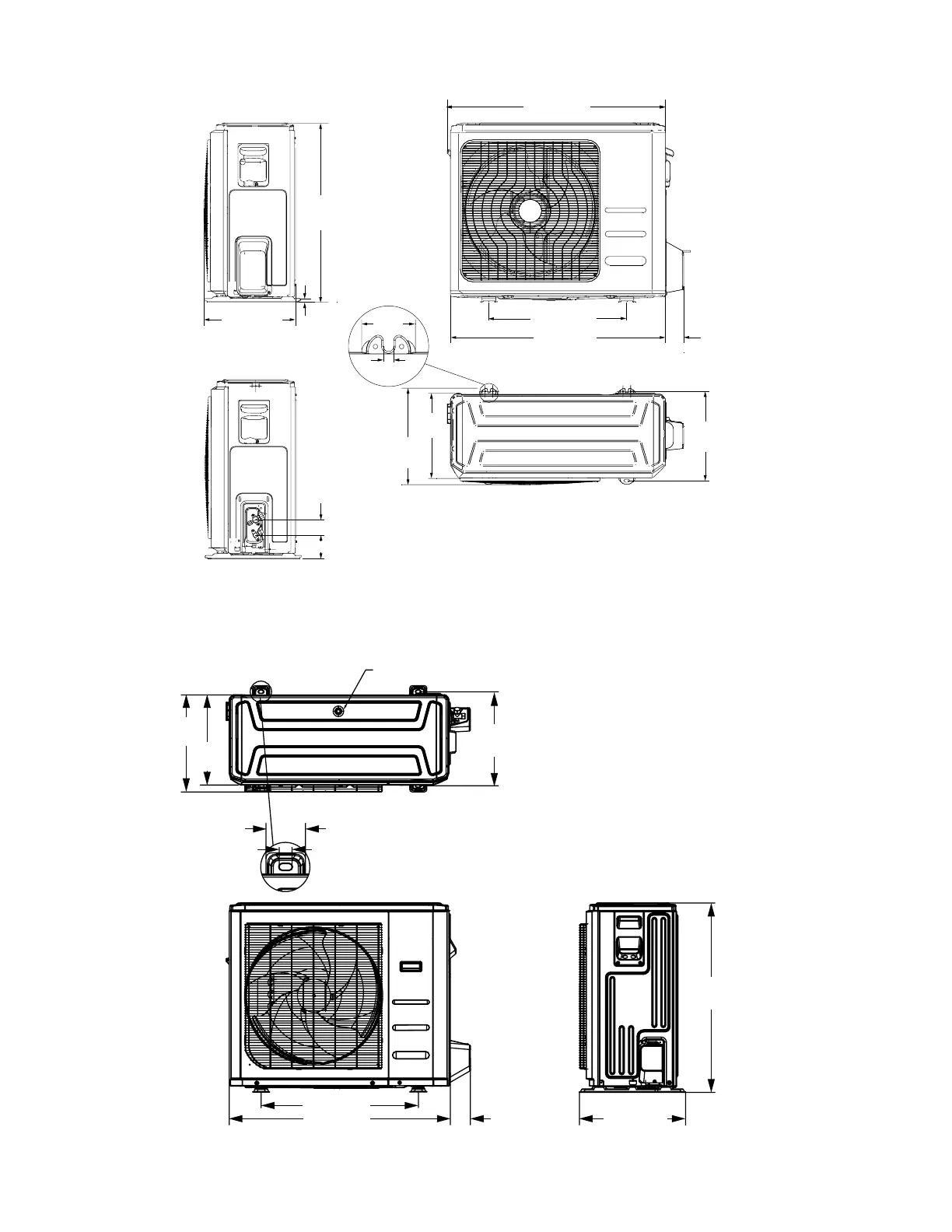

4DHV1S24S
27-5/8
(702)
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
SIDE VIEW
1/2
(13)
14-1/4 (362)
2-3/4
(70)
33-5/8 (854)
21-1/4 (540)
33-1/4 (845)
7-7/8
(200)
1-3/8 (35)
15
(381)
13-1/8
(333)
2-3/8 (60)
3-5/8 (92)
13-3/
4
(349)
15-7/8
(403)
TOP VIEW
FRONT VIEW
SIDE VIEW
16-3/8
(416)
15-1/4
(387)
2-7/8
(73)
1 (25)
26-1/2 (673)
37-1/4 (946)
3-3/8
(86)
31-7/8
(810)
17-7/8 (454)
DRAIN HOLE (Bottom of unit)
4DHV1S36S
