508067-01 Issue 2016 Page 41 of 75

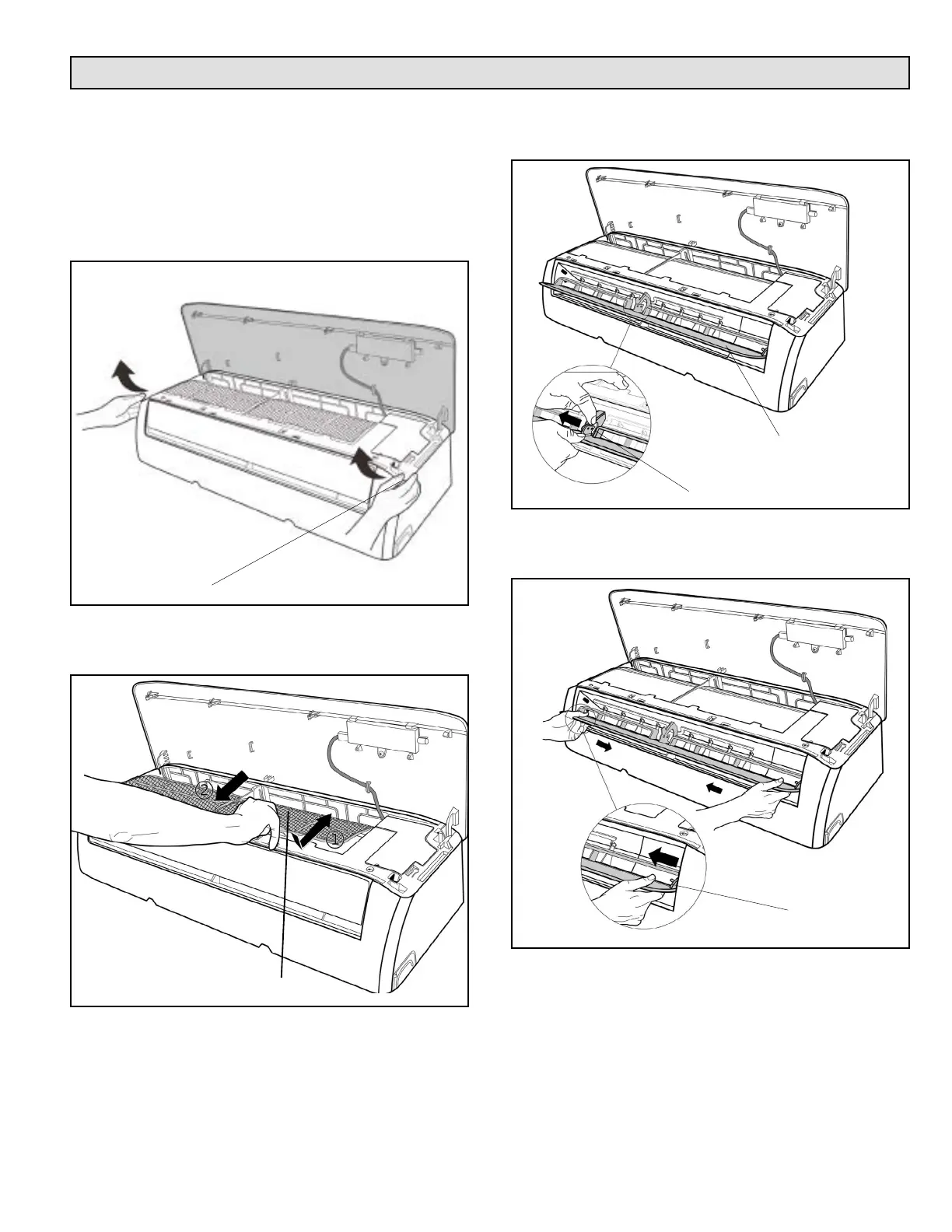

Indoor and Outdoor Unit Disassembly
NOTE: This section is for reference only. Actual unit
appearance may vary.
Indoor Unit (All Models)
Front Panel
1. Hold the front panel by the tabs on the both sides and
lift it.
TAB
2. Push up the bottom of an air lter (step 1), and then
pull it out downwards (step 2).
FILTER
3. Open the horizontal louver and push the hook towards
left to open it.
Horizontal Louver
Hook
4. Bend the horizontal louver lightly by both hands to
loosen the hooks, then remove the horizontal louver.
Hook
To Next Page
