Information is displayed immediately if the two minute time period elapsed before
a fluid level data request was made. However, if the two minute period has not
elapsed, there will be a countdown display before fluid level information displays.
The countdown display flashes constantly. Countdown starts at 8 and decreases
sequentially to 1 during the two minute period. When fluid level data is requested,
and the two minute countdown is in process, the flashing display shows the
number corresponding to the countdown progress.
For example:
• If the fluid level data was requested in the middle of the two minute
countdown period, the display would flasha5ora4anddecrease to 1.
• Shift Selector Display. Fluid level information is displayed one character at
a time as in Table 2–1:
1
2
3
4
5
D
N
R
MODE
R
N
D
5
4
3
2
1
MODE
2
1
3
D
N
R
D
N
R
213DNR
R
N
D
MODE
R
N
D
V03496.02
SIX-SPEED, LEFT-HAND
LEVER SELECTOR
HOLD OVERRIDE BUTTON
DISPLAY MODE/
DIAGNOSTIC BUTTON
MODE ID
DIGITAL DISPLAY
✽
MODE BUTTON
MODE INDICATOR
(LED)
SIX-SPEED, RIGHT-HAND
LEVER SELECTOR
MODE ID
MODE
INDICATOR (LED)
Push simultaneously
to enter diagnostic
mode and fluid level
check (optional)
NOTE:
Number displayed is highest forward range available in selected position.
Visually check to confirm range selected. If display is flashing – shift is inhibited.
✽
DIGITAL DISPLAY
✽
STRIP PUSHBUTTON
SHIFT SELECTORS
PUSHBUTTON
SELECTOR

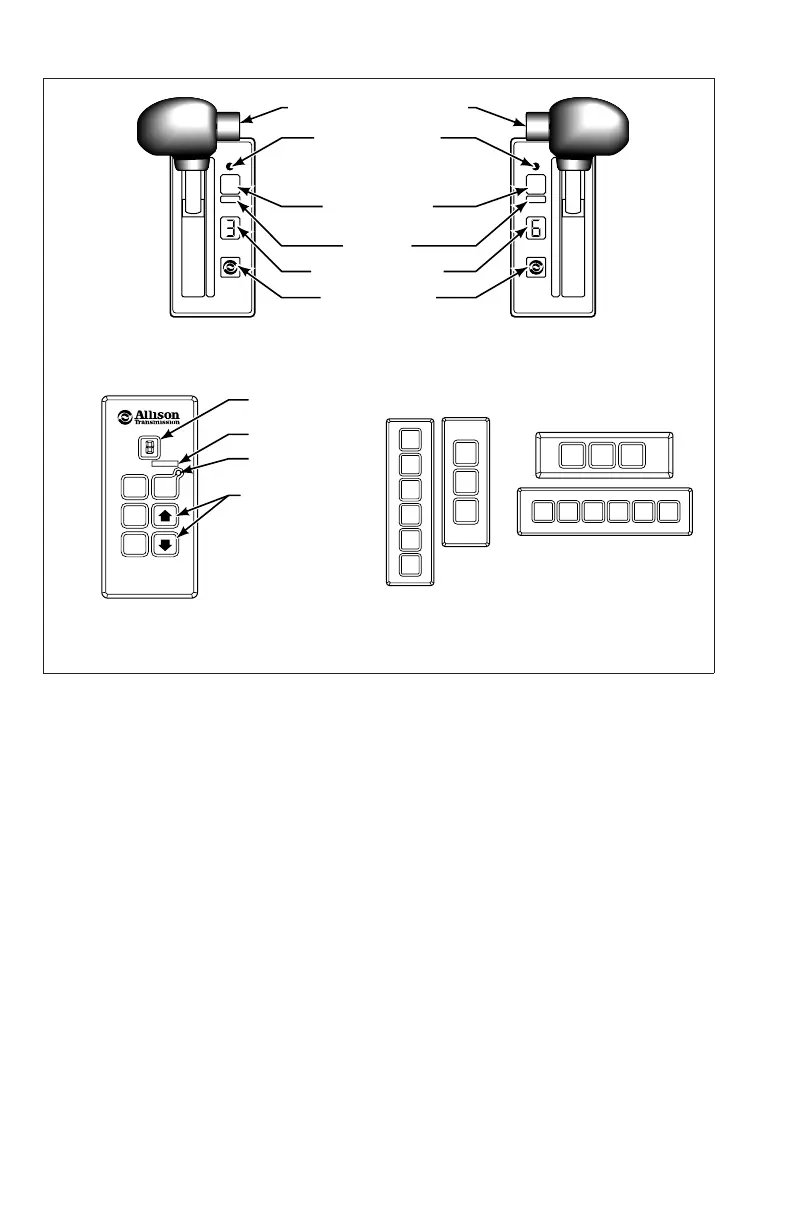

Figure 2–1. Typical Shift Selectors
22
