3–4. REMOVING THE TRANSMISSION
1. Move the transmission away from the engine, approximately
110 mm (4.35 inches), until it is completely clear of the engine. If used,
remove the adapter ring and/or gasket.
2. Raise or lower the transmission as necessary to remove it from the vehicle.
3–5. REMOVING OUTPUT FLANGE OR YOKE
If replacing the transmission, you may need to transfer the output flange or yoke
to the replacement transmission. Before December 1, 1998, output flanges or
yokes were retained by two M10 x 1.5 x 30 bolts. Output flanges or yokes are
now retained by one M14 x 2.0 x 70 bolt. For the 3000 Product Family, the
one-bolt design began at S/N 6510184819. For the 4000 Product Family, the
one-bolt design began at S/N 6610038064. All 4000 Product Family use the
one-bolt design.
TO
COOLER
FROM
COOLER
V07315
OUTPUT SPEED
SENSOR
REAR COOLER
PORTS
FRONT COOLER
PORTS
(OPTIONAL)
PTO CONTROLS
(AND LINES
IF NECESSARY)
ENGINE SPEED SENSOR
FEEDTHROUGH
HARNESS
CONNECTOR
OUTPUT
SPEED
SENSOR
ACCUMULATOR LINE
TACHOGRAPH
TURBINE SPEED
SENSOR
FRONT
REAR COOLER
PORTS
REAR (WITHOUT RETARDER)
REAR (WITH RETARDER)
RIGHT SIDE
RETARDER
TEMPERATURE
SENSOR
RETARDER
CONNECTOR
REMOTE COOLER
MANIFOLD

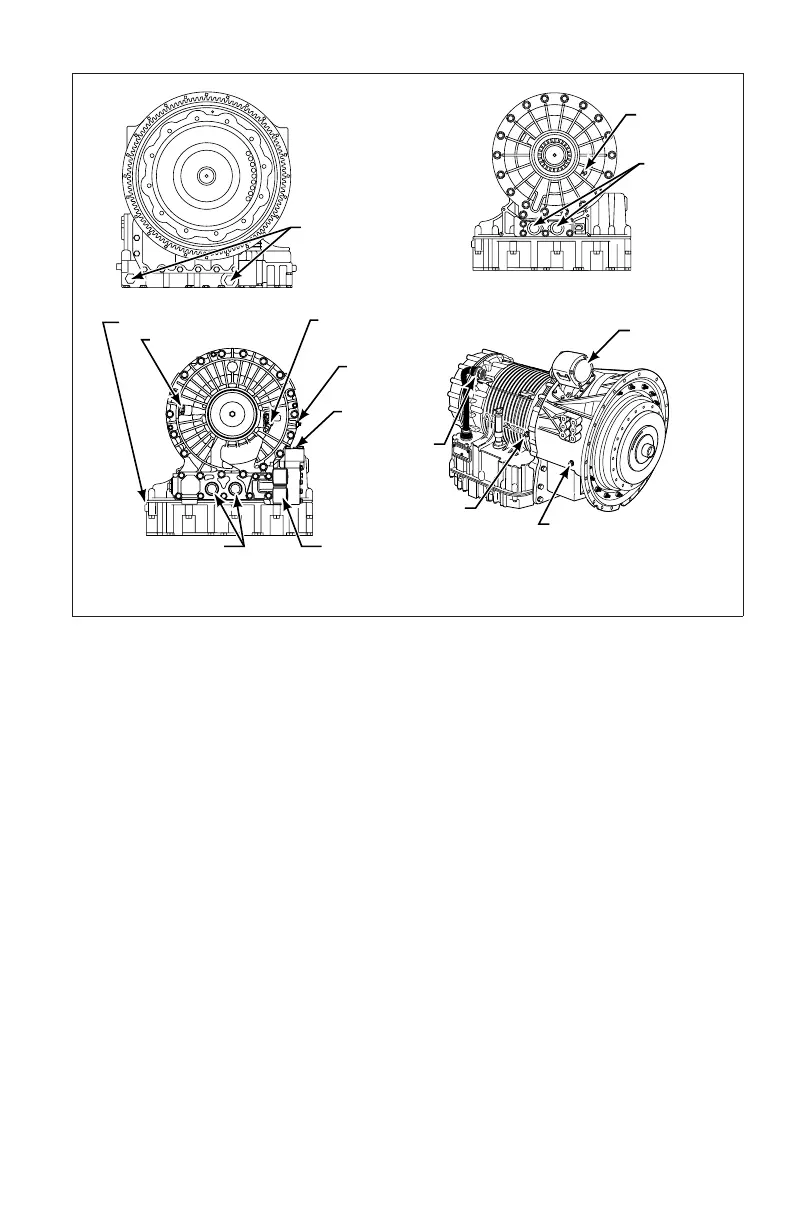

Figure 3–1. 4000 Product Family Transmissions Disconnect Locations
