5–3. CHASSIS AND DRIVELINE INSPECTION
Inspect the chassis and driveline components for the following conditions, and
correct them as appropriate.
• Transmission mounts—broken or worn-out
• Bolts and other hardware—damaged, missing, or incorrect
• Isolators (rubber mounts)—damaged or missing
• Driveline angles—runout, or balance which does not conform to the
manufacturer’s recommendations
• Driveline yoke slip joints:
— freedom of movement
— damaged or worn-out
— correctly lubricated
— correctly indexed
• Driveline midship or hanger bearings—damaged or misaligned
CRANKSHAFT
HUB ADAPTER
WEAR PLATE
STARTER
RING GEAR
FLEXPLATE
ASSEMBLY
TRANSMISSION
FLEXPLATE
ADAPTER
ENGINE
V00533..00.04
FLYWHEEL
HOUSING

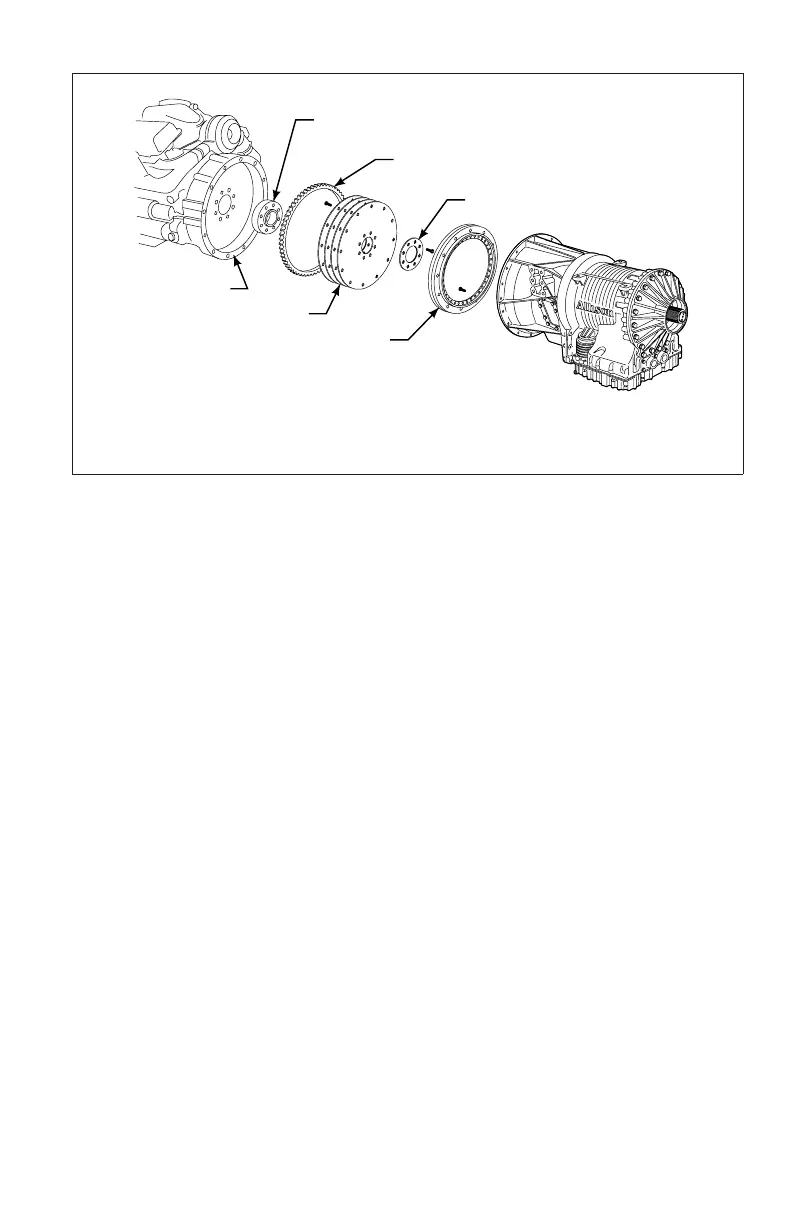

Figure 5–4. Arrangement of Adaptation Components
