For 3000 Product Family beginning with S/N 6510069120 and 4000 Product
Family beginning with S/N 6610009730:
1. Remove twelve bolts 1, two filter covers 2, two gaskets 3, two O-rings 4,
two O-rings 5 and two filters 6 from the bottom of the control module.
2. When reinstalling parts, lubricate and install new O-rings 4 and 5 on each
cover. Lubricate O-ring inside filter 6 and push filter onto each cover 2.
Install new gaskets 3 on each cover 2 and align bolt holes in gasket with
holes in cover.
For all transmissions:
1. Install filter cover assemblies into the filter compartments. Align each
filter/cover assembly with the holes in the bottom of the control module.
Push the cover assemblies in by hand to seat the seals.
DRAIN
PLUG
FILTER
4000 PRODUCT FAMILY 3000 PRODUCT FAMILY
COVER
V03532.02.02
DRAIN
PLUG
6
5
4
2
1
3
MAIN
MAIN
MAIN
LUBE
LUBE
LUBE

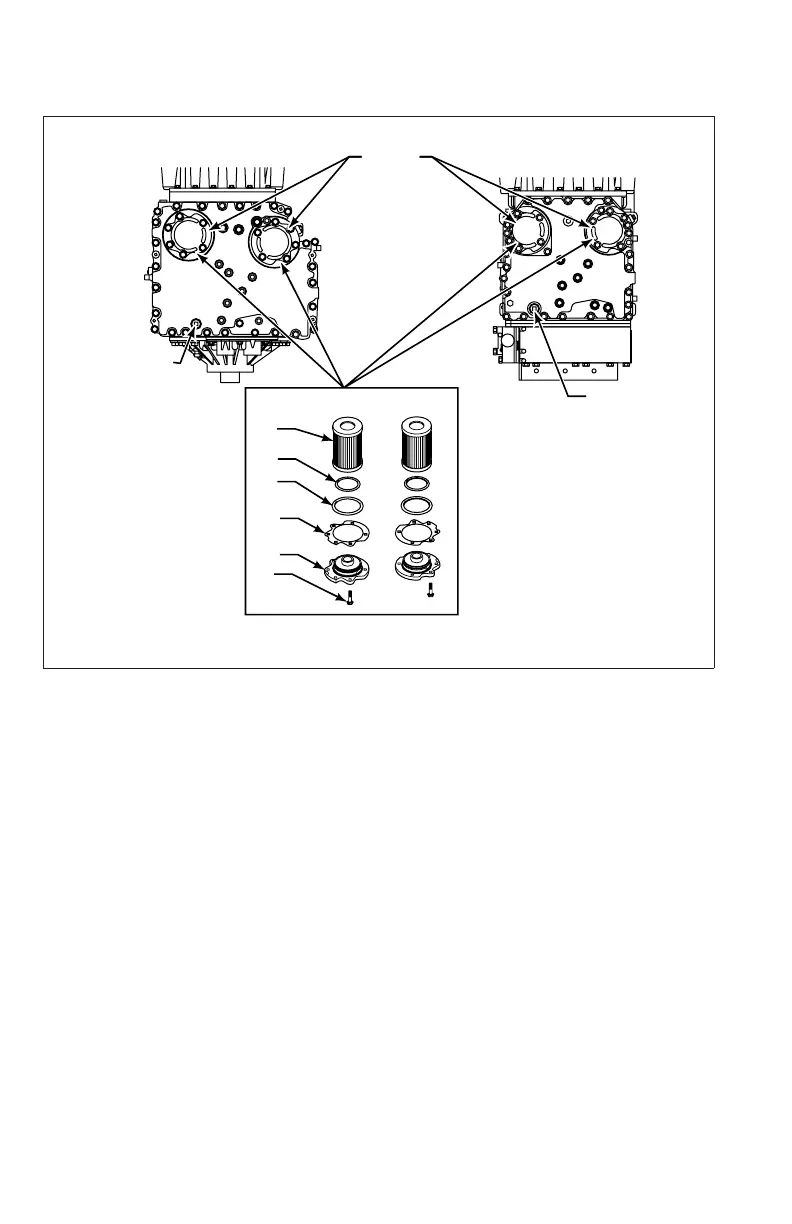

Figure 2–3. Location of Filters for Service
36
