APPENDIX D — WIRE/CONNECTOR CHART

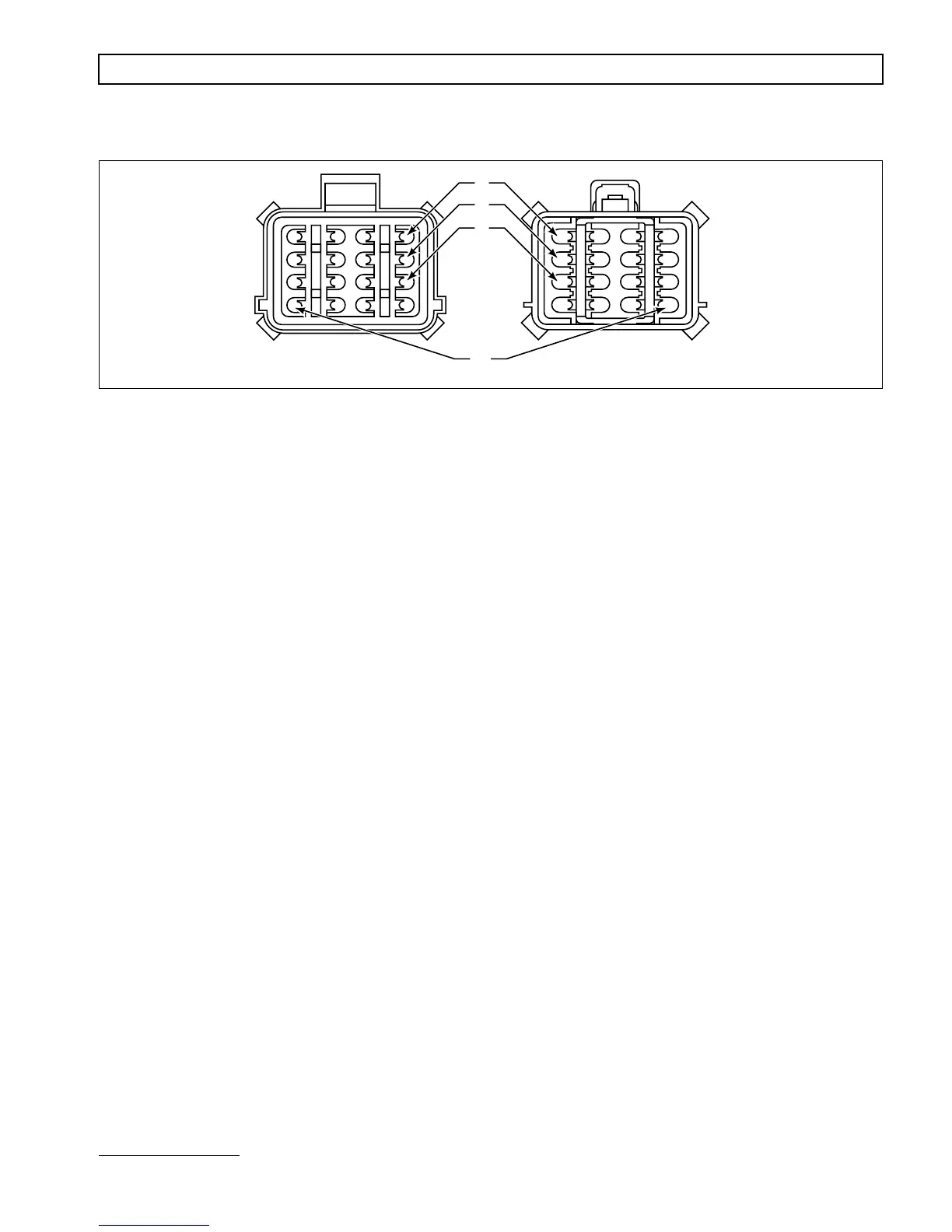

Figure D–22. Ford 16-Way Transmission Bulkhead Connector*
* For Model Year 1995 and later units, consult the Ford Vehicle manual for terminal identification.
BULKHEAD A (GRAY)
Termination Point(s)
Terminal No. Color Wire No. Description Transmission Side Bulkhead Side
1 Molded Closed
2 Orange 102 SGD1 A–2 ECU, A2
3 Green 103 CSOL C–1 ECU, A3
4 White 104 GSOL F–1 ECU, A4
5 Green 107 FSHI D–3 ECU, A7
6 White 110 FSLO D–2 ECU, A10
7 White 120 ASOL A–1 ECU, A20
8 Violet 121 SGD2 B–2 ECU, A21
9 Orange 128 BSOL B–1 ECU, A28
10 Violet 129 ESOL E–1 ECU, A29
11 Yellow 130 SGD3 C–2 ECU, A30
12 Blue 131 DSOL D–1 ECU, A31
13 Red 136B 12/24V Splice to 136E Splice to 136A
14 Red 136C 12/24V Splice to 136E ECU, B11
15 Black 143B BTGD Splice to 143F Splice to 143A
16 Black 143C BTGD Splice to 143F ECU, B18
BULKHEAD B (BLACK)
Termination Point(s)
Terminal No. Color Wire No. Description Transmission Side Bulkhead Side
1 White 106 LOPR G–3 ECU, A6
2 Yellow 139 NOHI NO–A ECU, B5
3 Green 148 NOLO NO–B ECU, B14
4 Violet 147 OILT F–3 ECU, B4
5 Molded Closed
6 Blue 140 NTLO E–2 ECU, B6
7 Orange 149 NTHI E–3 ECU, B15
8 Molded Closed
9 Red 124 TPHI TPS–C ECU, A24
10 Violet 141 NEHI NE–A ECU, B7
11 Orange 150 NELO NE–B ECU, B16
12 Green 135A TPLO TPS–A ECU, B1
13 Blue 156 TPOT TPS–B ECU, B22
14 Yellow 161A SNGD F–2 ECU, B27
15 White 162 C3PS C–3 ECU, B28
16 Blue 165 LOIL B–3 ECU, B31
V01673
1
5
9
16
PLUG RECEPTACLE
