WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX D — WIRE/CONNECTOR CHART

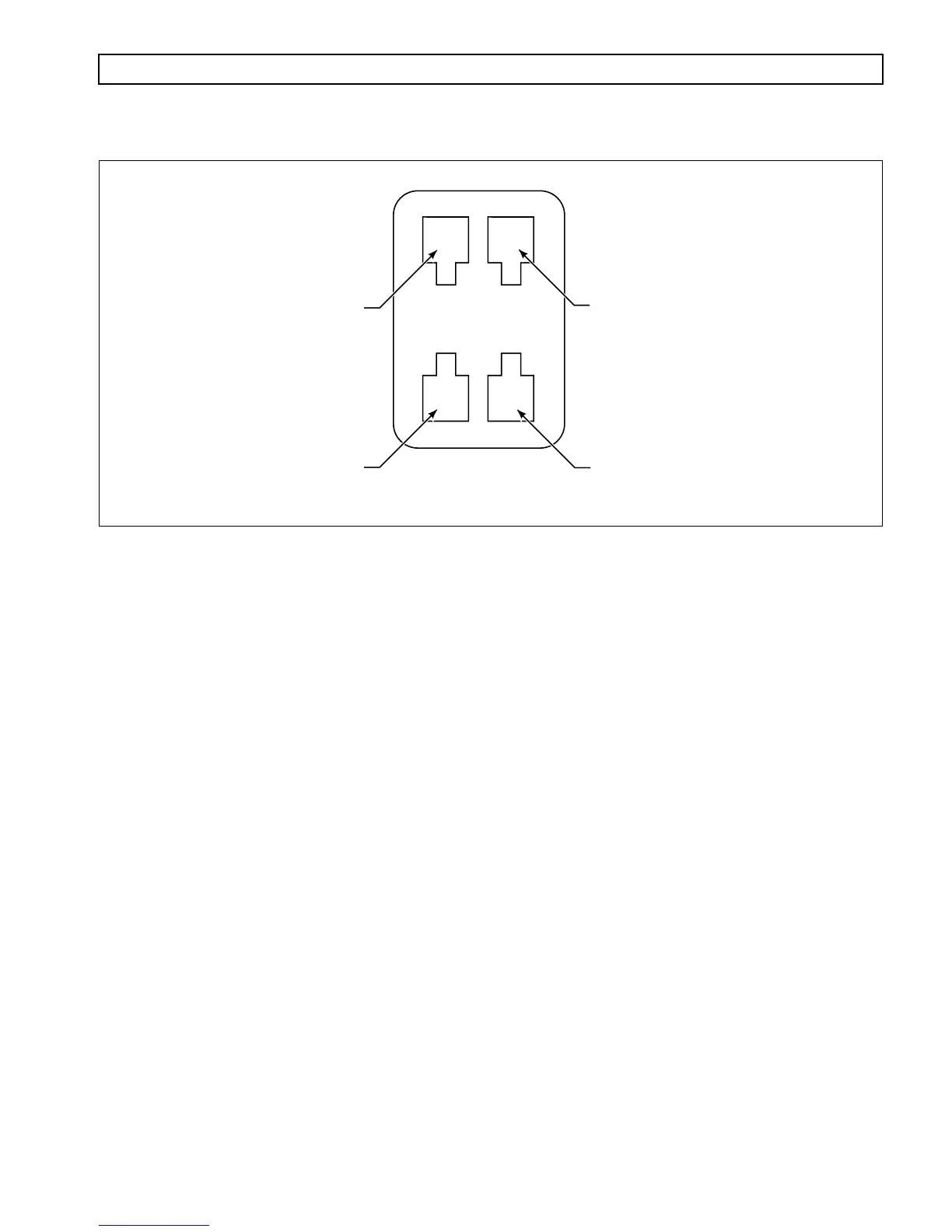

Figure D–34. End View of Oil Level Sensor Plug
OIL LEVEL SENSOR CONNECTOR
Termination Point(s)
Terminal No. Color Wire No. Description
24-Way Transmission
Connector
31-Way Feedthrough
Harness Connector
A White 165 LOIL B3
Y
B Black 135B TPLO G2 N
C
D Red 106 LOPR G3 D
V01106
B
C
A
D
