WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
D–38 Copyright © 1998 General Motors Corp.
APPENDIX D — WIRE/CONNECTOR CHART

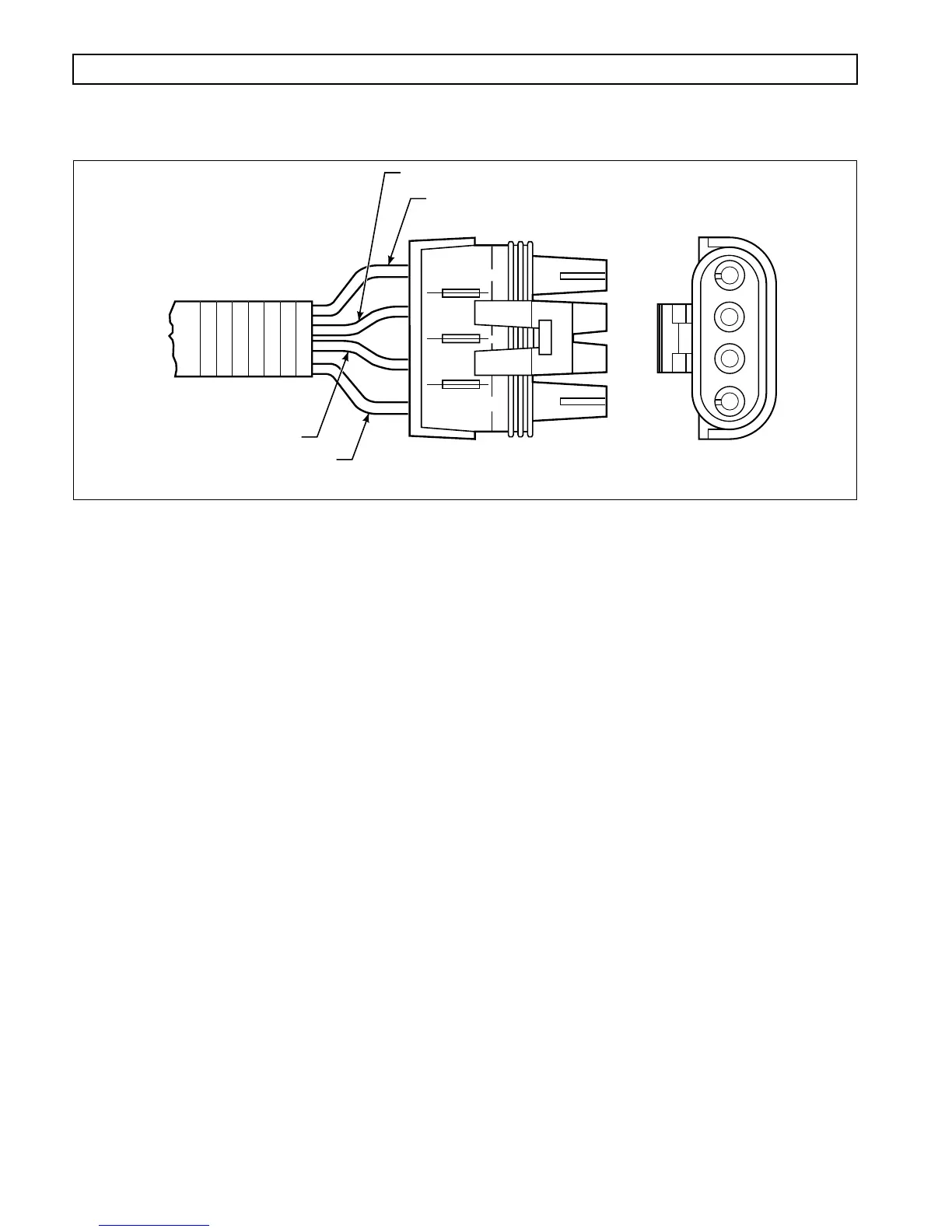

Figure D–29. Resistance Module Type 3 — Bendix E-10R Pedal
RESISTANCE MODULE TYPE 3
Terminal No. Color
A Blue
B Violet
C White
D Orange
W
O
V
B
V00571
A
B
C
D
