WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
E–38 Copyright © 1998 General Motors Corp.
APPENDIX E — CONNECTOR PART NUMBERS, TERMINAL PART
NUMBERS, TOOL PART NUMBERS, AND REPAIR INSTRUCTIONS
)

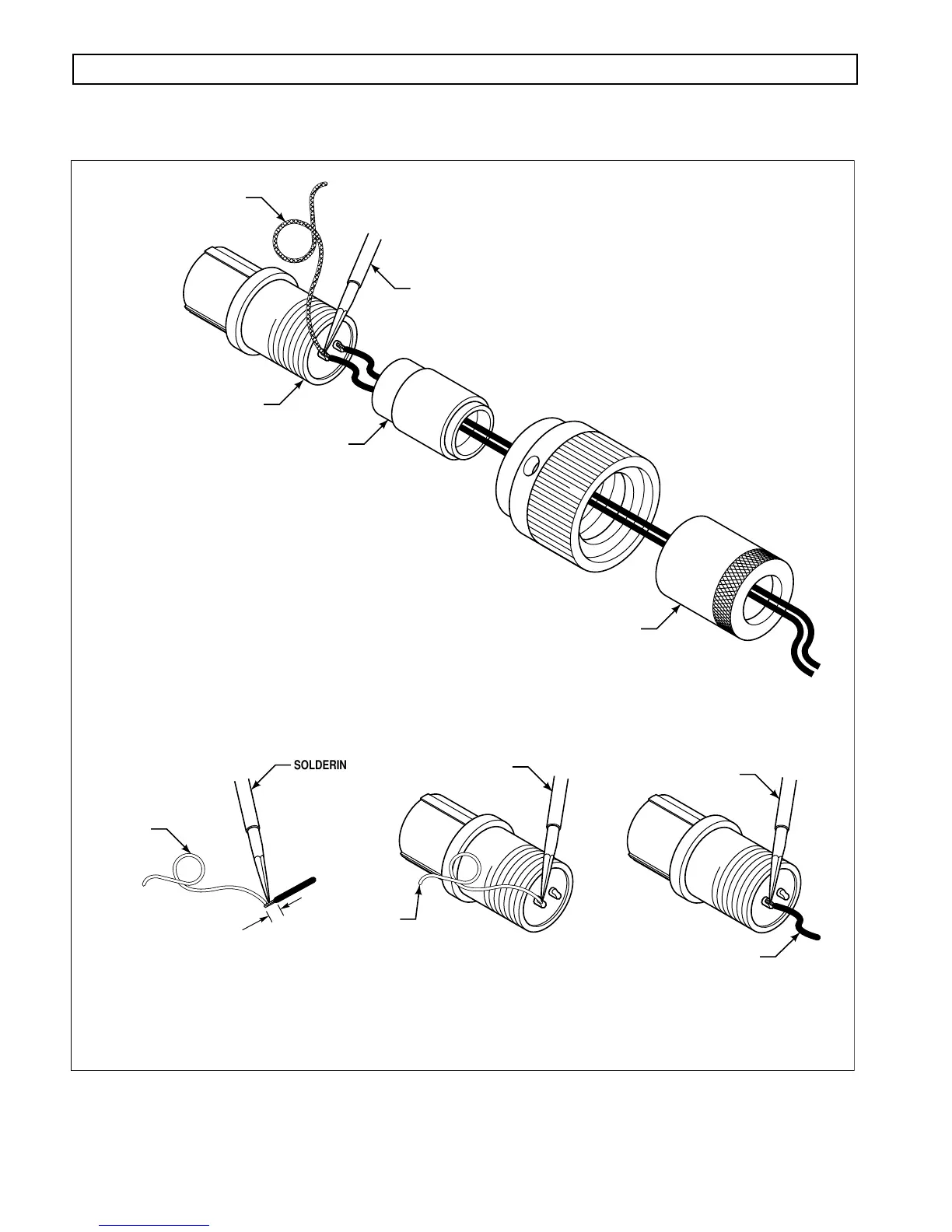

Figure E–11. ITT Cannon Connectors — Soldered (2-Way HD Retarder)
;;
;;
;;
;;
SOLDERING
IRON
• Tinning stripped wire • Soldering iron on side of cup
• Fill cup half full
• Soldering iron on side of cup
• Flow solder in cup
• Insert wire
• Maintain heat to flow solder
PEN SOLDERING IRON
SOLDER
SOLDERING
IRON
SOLDERING
IRON
DESOLDERING BRAID
SOLDERED CUP CONNECTION
WIRE GROMMET
SOLDER
0.3"
(0.8 mm)
WIRE
THREADED BACK SHELL
V01107
