Allison B 500 - Hydraulic Schematics; C2 Latch Valve Detail

Copyright © 1998 General Motors Corp. H–1
WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX H — HYDRAULIC SCHEMATICS

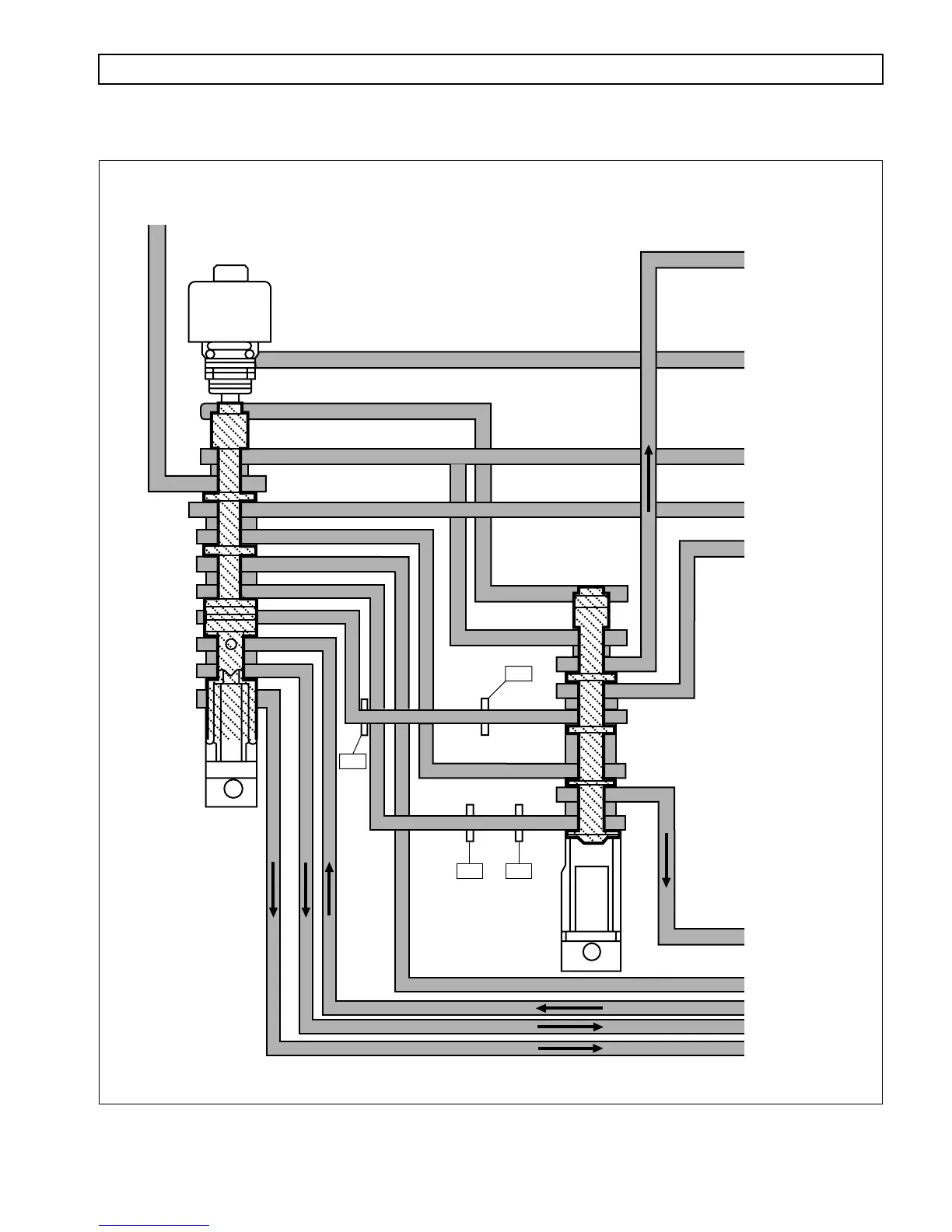

Figure H–1. C2 Latch Valve Detail
C2
LATCH
VALVE
C2 (TO CLUTCH)
C2 LATCH VALVE DETAIL
C1 (TO CLUTCH)
CONTROL MAIN
EBF
C2 (FROM SOL)
C1 (FROM SOL)
C3 (TO CLUTCH)
C3 (FROM SOL)
C5 (FROM SOL)
C5 (TO CLUTCH)
EBF
C1
LATCH
VALVE
146
144145
133
V00588.02
