WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
E–34 Copyright © 1998 General Motors Corp.
APPENDIX E — CONNECTOR PART NUMBERS, TERMINAL PART
NUMBERS, TOOL PART NUMBERS, AND REPAIR INSTRUCTIONS

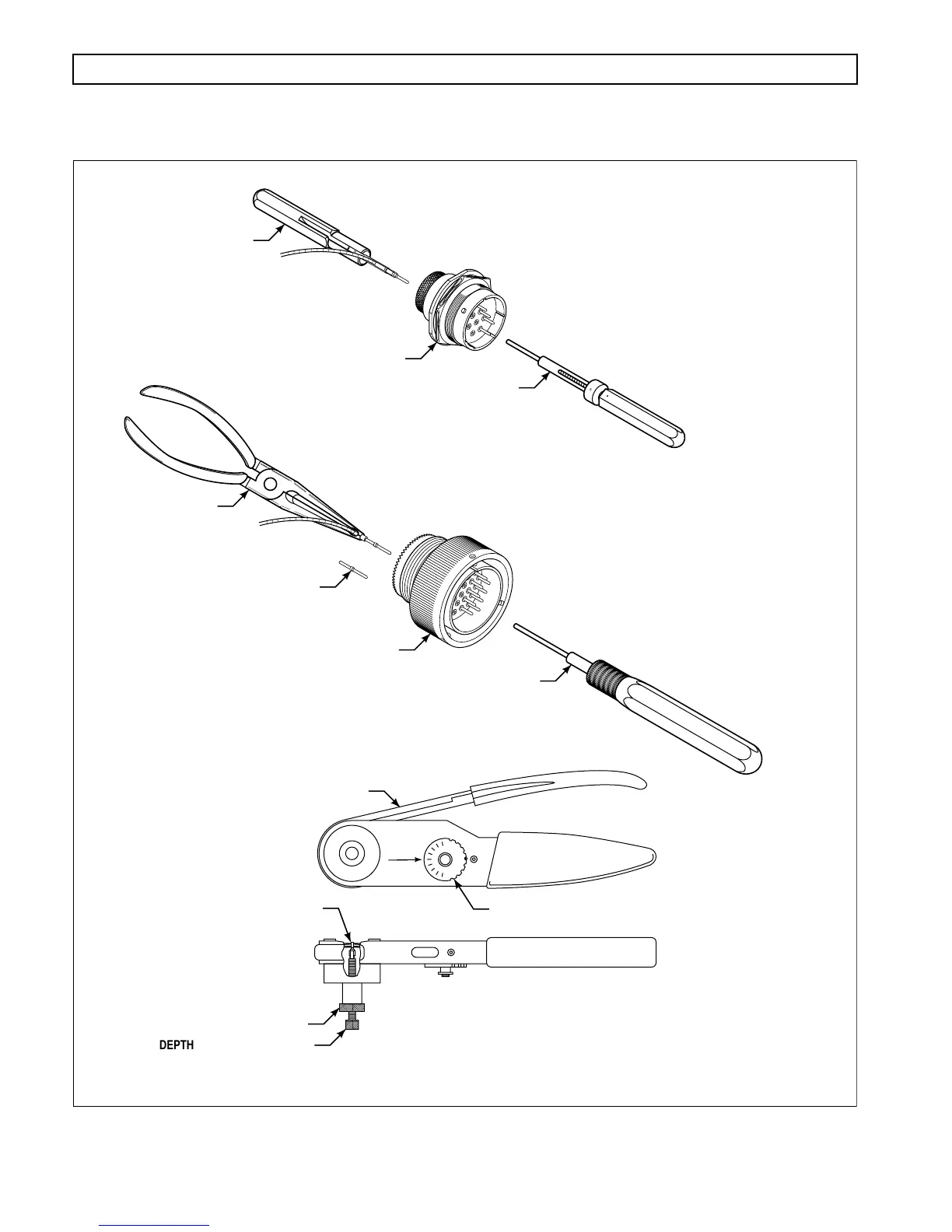

Figure E–10. ITT Cannon Connectors — Crimped (37-Way FMTV Bulkhead; 6-Way Transfer Case; 8-Way MD Retarder)
R
A
I
S
E
T
O
R
O
T
A
T
E
SEL
NO.
;;
;;
;;
DEPTH ADJUSTMENT SCREW
J 34182 CRIMPER
LOCKING RING
J 41193-2 INSTALLER
J 39841 INSTALLER
(J 39842 IS SIMILAR)
RETARDER CONNECTOR
(MD/B 300/B 400)
J 39841 REMOVER
(J 39842 IS SIMILAR)
J 41193-1
GUIDE PIN FOR SOCKET TERMINALS
FMTV CONNECTOR
J 41193-3 REMOVER
TERMINAL
WIRE SIZE INDICATOR
VIEW A
VIEW C
VIEW B
V01691
