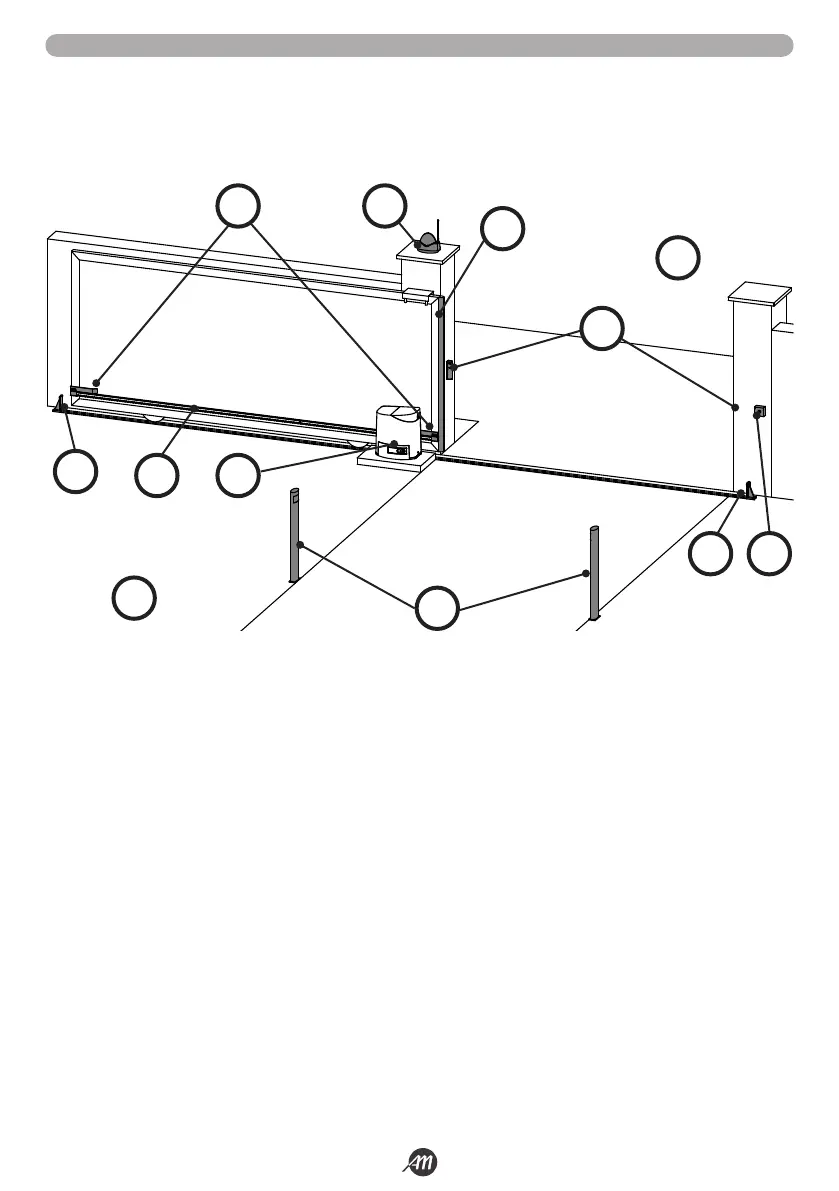

Allmatic TRAKTOR /I Series - Typical Installation

Translated from the original language - English - 13Manual 6-1624970M - rev. 1 - 11/01/2023
1. TRAKTOR
2. Limit switch bracket
3. Rack
4. Key switch
5. Flashing light with antenna
6. Photocells
7. Mechanical limit stop
8. Safety edge
9. Internal area
10. External area
Description:
2.6 - TYPICAL INSTALLATION
1
2
3
5
6
4
7
8
9
10
7
6
