6 - English - Translated from the original language Manual 6-1624970M - rev. 1 - 11/01/2023
Prepare cable ducts on the installation site.
The cables for the connection of the various devices in a typical plant are listed in the table below and must be suitable for the type
of installation, for example we recommend a cable type H07RN-F for outdoor installation.
CONNECTION CABLE LENGTH
Main power supply line
3 x 1,5 mm²
3 x 2,5 mm²
3 x 3,5 mm²
Up to 10 m
From 10 to 50 m
Over 50 m
Flashing lamp 2 x 0,5 mm² Up to 20 m
Photocell - transmitter 2 x 0,5 mm² Up to 20 m
Photocell - receiver 4 x 0,5 mm² Up to 20 m
Key selector 4 x 0,5 mm² Up to 20 m
Only use the supplied connectors:
CLAMP POSITION TYPE CLAMP
All PHOENIX BCP-500-2GN

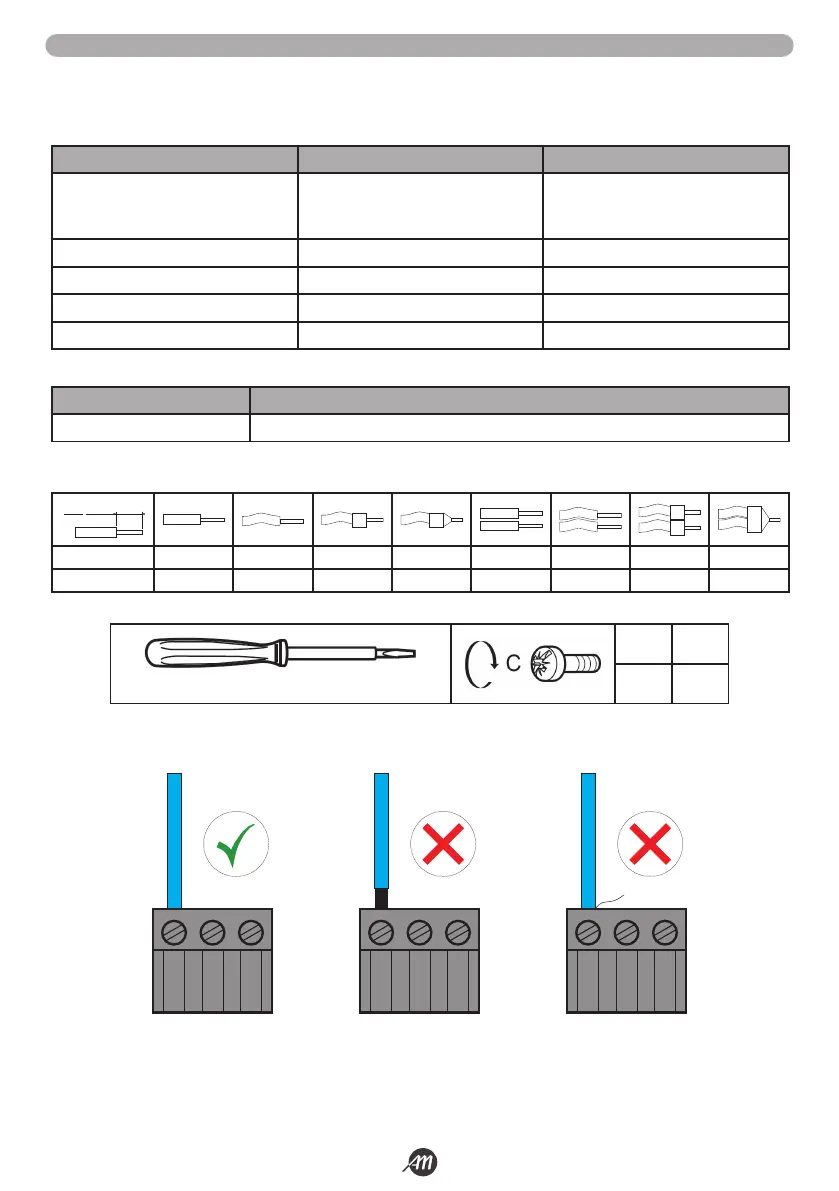

The following table shows the type and size of the allowable cables for the screw terminals of the above type and the tightening
torques:
6.5
0.26
mm
in.
mm
2
0.2 ... 2.5 0.2 ... 2.5 0.25 ... 2.5 2 x 0.2 ... 0.75 2 x 0.2 ... 0.75 2 x 0.25 ... 0.75 2 x 0.25 ... 0.75 2 x 0.5 ... 1.5
AWG 24 ... 14 24 ... 14 24 ... 14 24 ... 14 2 x 24 ... 18 2 x 24 ... 18 2 x 24 ... 18 2 x 20 ... 16
Ø 3.5 mm (0.14 in.)
N • m 0.5
Ib-in 4.5
Use copper conductors (mandatory).
Avoid the presence of wires of exposed branches or coming out of the clamp.
1.4 - GUIDELINES ON ELECTRICAL CONNECTIONS
