20 - English - Translated from the original language Manual 6-1624970M - rev. 1 - 11/01/2023

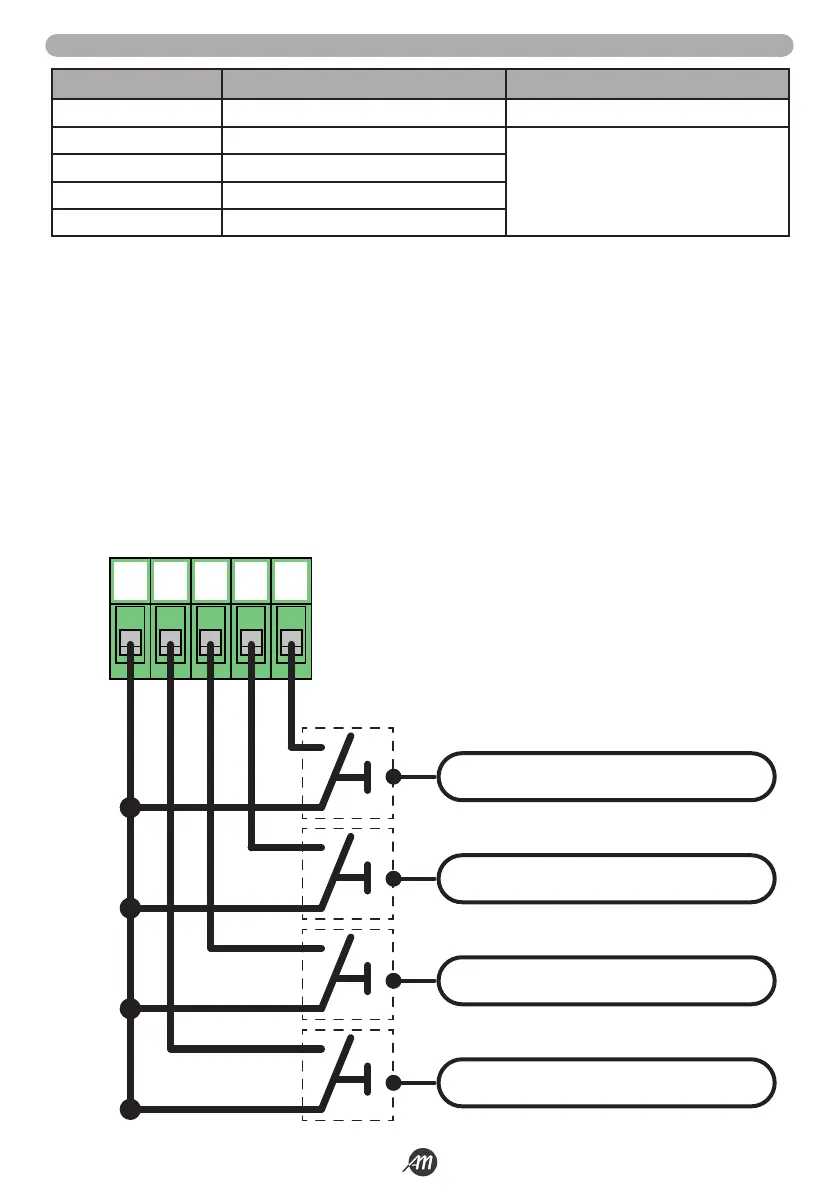

4.4 - ELECTRICAL CONNECTIONS OF CONTROL DEVICES
# TERMINAL FUNCTION RATING
10 COMMON CONTACT
11 STEP-BY-STEP
Connect a clean contact (voltage free) Normally
Open.
Signal LED Normally OFF.
12 PARTIAL OPENING
13 CLOSE
14 OPEN
Step-by-step function
At each activation it performs sequentially OPEN-STOP-CLOSE-STOP.
You can configure the execution mode using the basic parameter.
Partial Opening function
Performs a partial opening of the automation.
The width of the opening can be configured using the basic parameter.
Close function
Performs a complete closing.
If kept active, keep the gate in the "CLOSED GATE" position and ignore any other commands.
Open function
Performs a full opening.
If kept active, keep the gate in the "GATE OPEN" position and ignore any other commands.
COM
1413121110
STEP-BY-STEP
PARTIAL OPENING
CLOSE
OPEN
