Translated from the original language - English - 19Manual 6-1624970M - rev. 1 - 11/01/2023

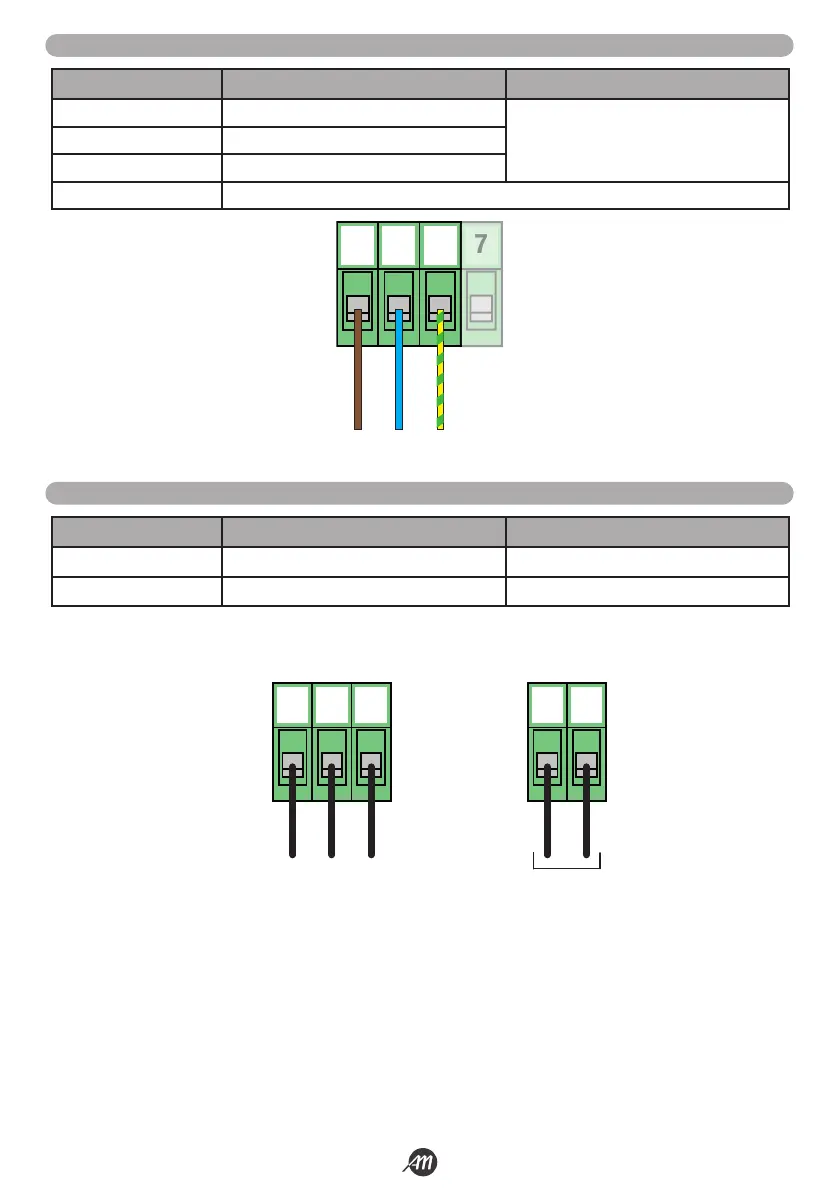

4.2 - MAIN POWER SUPPLY CONNECTION
# TERMINAL FUNCTION RATING
4 L - Phase cable
Connect power from network distribution
230 Vac ± 10% 50/60 Hz
5 N - Neutral cable
6 PE - Earthing cable
7 Reserved for connection performed by the manufacturer
# TERMINAL FUNCTION RATING
24 - 25 Power output 24 Vdc 250 mA MAX
26 - 27 Power output 24 Vac 250 mA MAX
Terminal 23 is reserved for the use of the function of TEST PHOTOCELLS and SAFETY EDGE TEST.
Refer to advanced parameters for configuration and connections.
654
GND
+24 Vdc
+24 Vdc
TEST TX
252423 2726
24 Vac
OUTPUT
4.3 - POWER SUPPLY CONNECTION ACCESSORIES
