22 - English - Translated from the original language Manual 6-1624970M - rev. 1 - 11/01/2023
GND
25242318
1 2 3 4 5
RX
+ - COM NO NC
1 2
+ -
TX
+24VCOM PH1
10
+24V
TEST

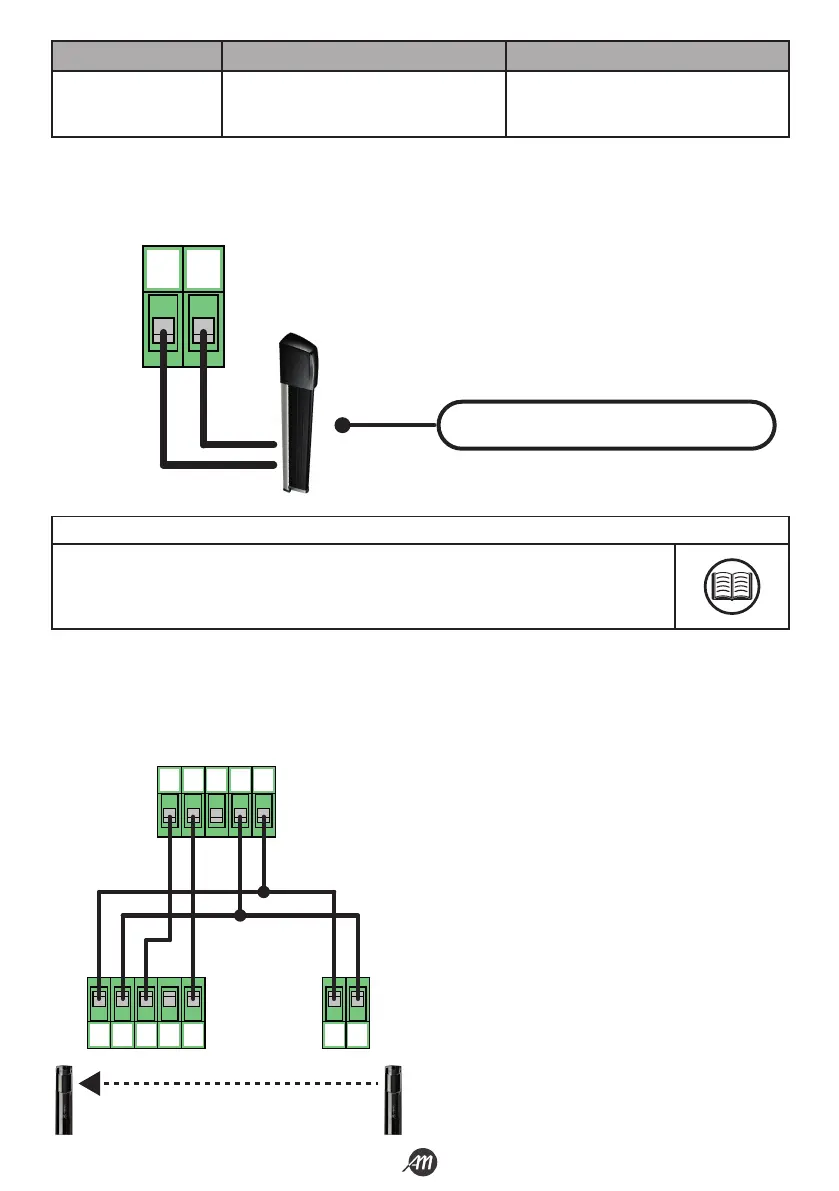

Photocell series FT / IRIS
Standard connections.
# TERMINAL FUNCTION RATING
20 - 21 SAFETY EDGE
Connect mechanical (NC) or resistive (8.2
Kohm) sensitive edges.
Signal LED Normally On.
Input SENSITIVE EDGE
During the closing movement, it stops the movement of the automation and performs a reversal until the gate reaches the OPEN
GATE position.
Use the parameters to configure the behavior of the sensitive edge input and the device type in use.
2120
SAFETY EDGE
NOTE
Once you have finished the connections, before starting the programming, check that all the red lights of
the safeties are on.
If this does not happen, verify that the un-connected inputs are disabled and that the connected devices are
properly powered and working.
