3. INSTALLATION

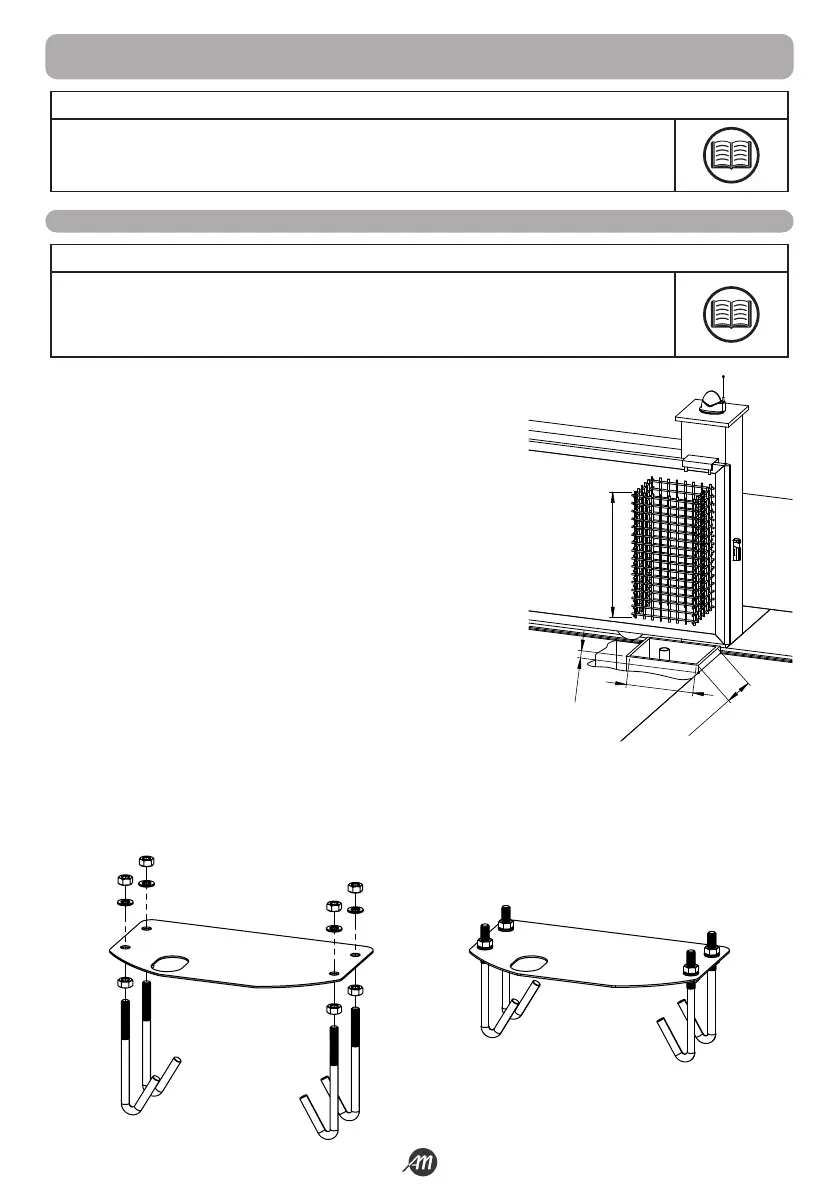

3.1 - INSTALLATION OF THE FIXING PLATE
Make the excavation to contain a counter frame for the realization of the foundation
of such dimensions as to support the weight of the automation.
The surface of the foundation should be larger than the fixing plate.
See image (recommended minimum size).
Prepare the corrugated pipes required for connections from the junction well.
Insert the counter frame into the excavation.
The frame shall be 50 mm above ground level.
Insert an iron grid into the counter frame to reinforce the concrete.
NOTE
The following illustrations are just examples, as the space for fixing the automation and accessories varies
depending on the dimensions. It is therefore up to the installer to choose the most suitable solution.
The drawings refer to the automation installed to the left of the passage.
NOTE
• The number of tubes depends on the type of system and the number and type of accessories provided.
• The pipes must pass through the prepared fixing plate holes.
• The fixing plate, once positioned, must be perfectly level and with the thread of the screws perfectly on
the surface.
Min.450
Min.350
H Min.800
Min.50
Assemble the hooks to the fixing plate using, at the bottom only the nut, and at the top a washer and a nut.
The part under the plate will be completely covered with cement.
The washer and the nut placed above the plate will serve subsequently to fix the gear motor to the plate itself.
