Translated from the original language - English - 23Manual 6-1624970M - rev. 1 - 11/01/2023

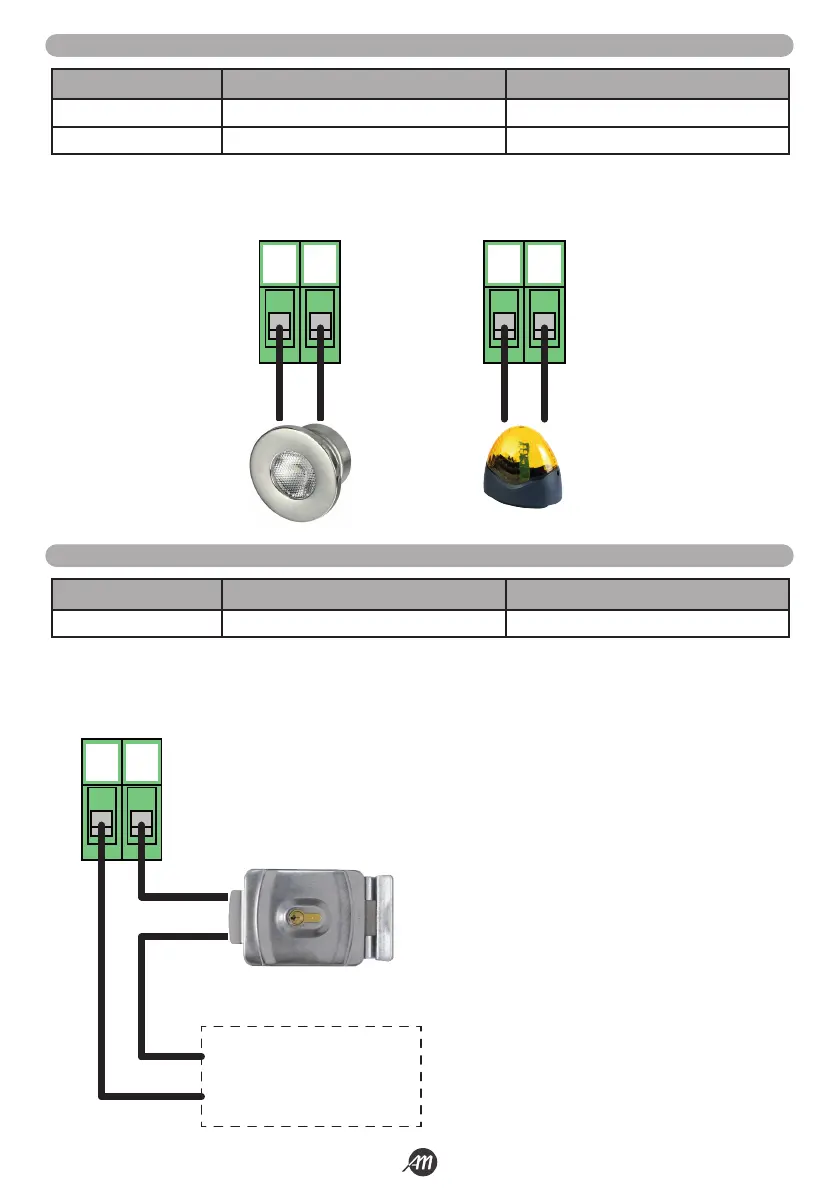

4.7 - CONNECTION OF ELECTRIC LOCK
# TERMINAL FUNCTION RATING
32 - 33 Electrical lock Clean contact (voltage free).
Clean contact for connection of an electric lock.
The control unit does not provide power for the electric lock, so it will be necessary to use an external power supply device compat-
ible with the power required by the electric lock. Use the following connection scheme.
3332
EXTERNAL POWER
SUPPLY DEVICE
4.6 - ELECTRICAL CONNECTIONS OF SIGNALLING DEVICES
# TERMINAL FUNCTION RATING
28 - 29 Courtesy light MAX 230 Vac 60 W
30 - 31 Flashing lamp MAX 230 Vac 60 W
The outputs are active during the opening and closing phases of the automation.
Refer to the advanced parameters to configure the flashing mode and the lighting time of the courtesy light.
31302928
