Translated from the original language - English - 17Manual 6-1624970M - rev. 1 - 11/01/2023

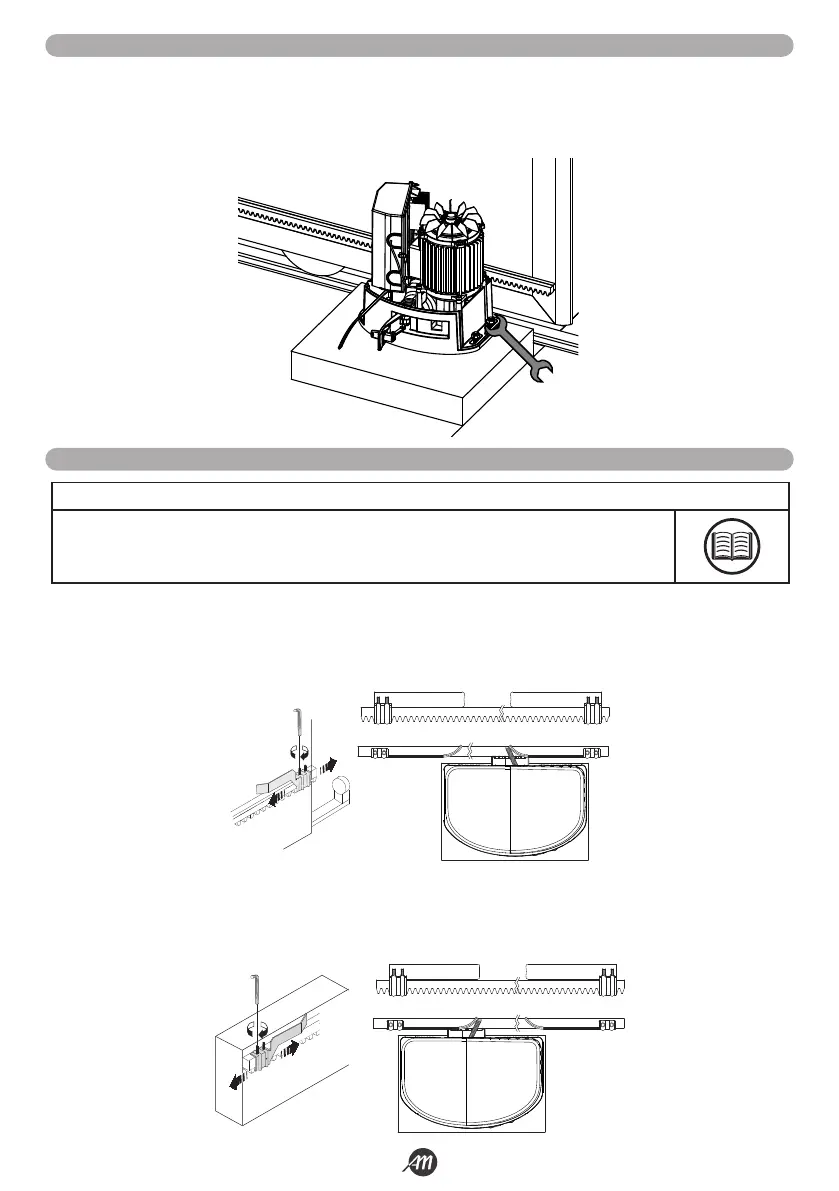

3.4 - FIXING OF THE GEAR MOTOR
Proceed to fixing only after adjusting and checking the pinion-rack coupling for the entire length of the gate.
Secure the automation firmly to the mounting plate using the supplied washers and nuts.
Make some manual movements to open and close the gate completely to verify that there are no anomalies.
3.5 - DETERMINATION OF LIMIT POINTS
Manually bring the gate to the OPEN GATE position, at least 20 mm away from the mechanical stop.
Slide the opening end bracket onto the rack.
The spring must trigger the electro-mechanical limit switch.
Fix the opening limit switch bracket with the headless screws (supplied).
NOTE
• The gate must not press on fixed mechanical stops.
Manually bring the gate to the CLOSED GATE position, at least 20 mm away from the mechanical stop.
Slide the closing end bracket onto the rack.
The spring must trigger the electro-mechanical limit switch.
Fix the closing limit switch bracket with the headless screws (supplied).
