Peak + (with drag indicator)
The display shows a Peak symbol.
By default the instrument indicates the peak value for compression
operations.
You may change the prefix (see p. 17 chapter 4.2.2 Changing +/-
prefix for push or pull operations (P12)).
Instruments series FMI-B20 and FMI-S20 and higher can measure with
increased frequency (high-speed measuring). The high frequency al-
lows to measure the peak value precisely at the moment of rupture or
tearing.
Peak – (with drag indicator)
The display shows a Peak symbol and the prefix minus.
The instrument indicates the peak value for tension operations.
You may change the prefix (see p. 17 chapter 4.2.2 Changing +/-
prefix for push or pull operations (P12)).
Instruments series FMI-B20 and FMI-S20 and higher can measure with
increased frequency (high-speed measuring). The high frequency al-
lows to measure the peak value precisely at the moment of rupture or
tearing.
Peak (series FMI-B20 and FMI-S20 and higher)
The display shows a flashing Peak symbol.
The instrument indicates the value that is measured at the time.
Instruments series FMI-B20 and FMI-S20 and higher can measure with
increased frequency (high-speed measuring). The high frequency al-
lows to measure the peak value precisely at the moment of rupture or
tearing.

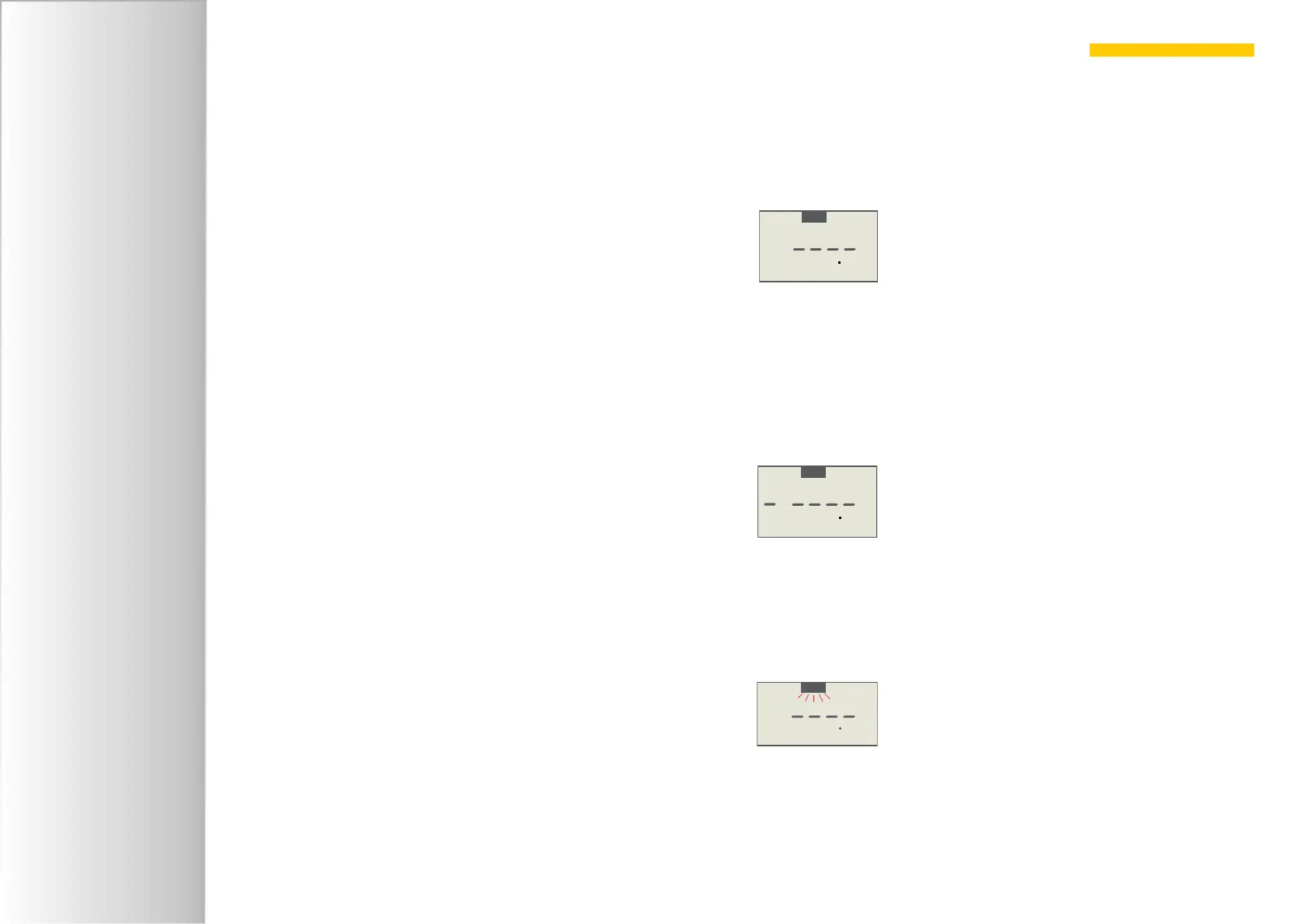

N
Peak
Peak-Modus
Display shows a flashing Peak symbol
N
Peak
Display shows Peak symbol and
negative prefix
Peak – Modus
N
Peak
Peak + Modus
Display shows Peak symbol
