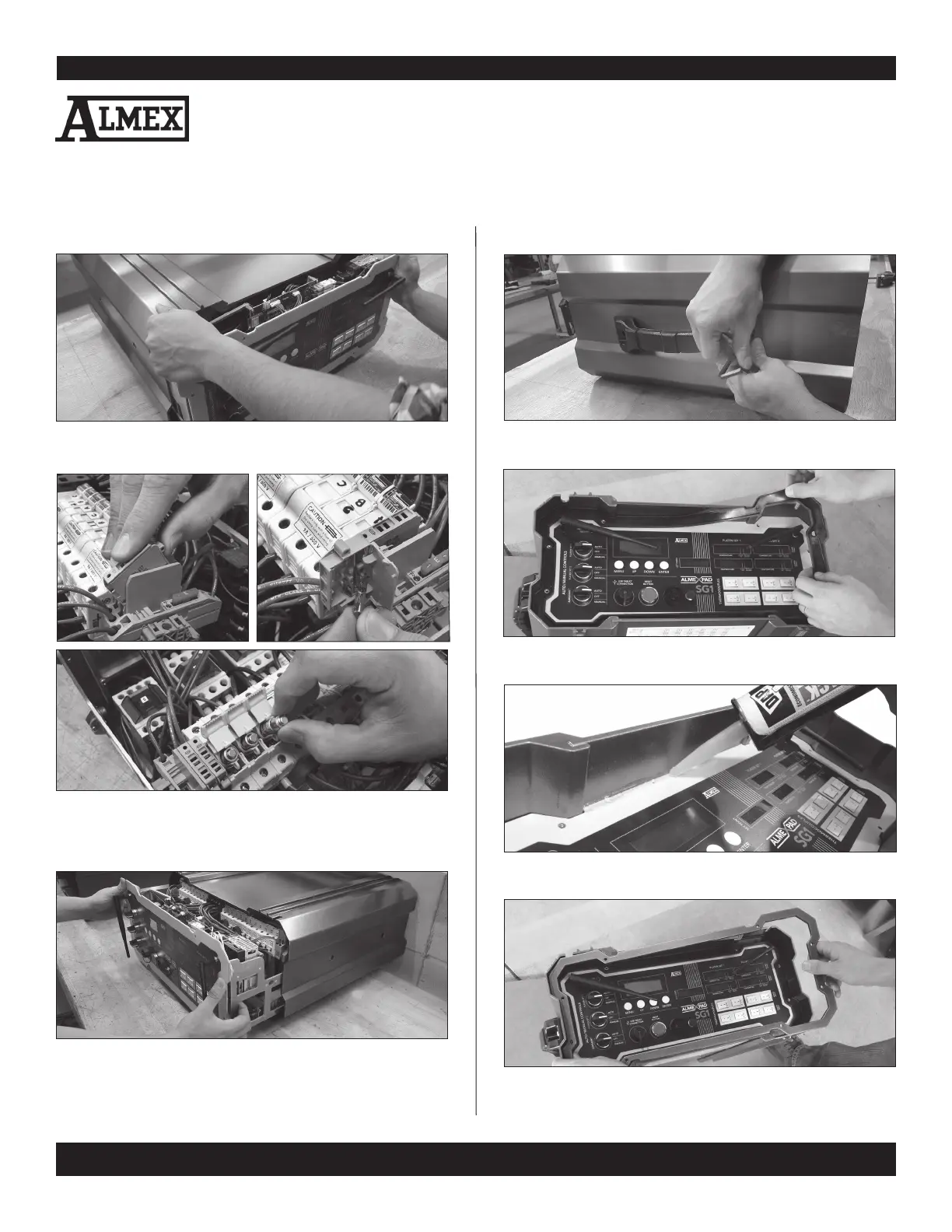

9. Maintenance and Repair CONTINUED
49900-038
FIGURE 40 - STEP 7. BOLT BOTH HANDLES ONTO THE ENCLOSURE USING THE
7/32” HEX ALLAN KEY.
FIGURE 42 - STEP 8 - OPTION 2. APPLY “DRAFT ATTACK” SEALANT TO THE
GAP BETWEEN THE FRONT PANEL AND THE ENCLOSURE.
FIGURE 37 - STEP 4. PULL
THE CENTRAL TRAY OUT OF THE ENCLOSURE.
9.1.1. OPENING THE SG1 (CONTINUED)
FIGURE 43 - STEP 9. PROPERLY POSITION THE SEALING RING IN THE
SEALING GASKET OR ON THE DRAFT ATTACK AND SECURE
USING EIGHT 1/8” HEX ALLEN BOLTS.
9.1.2. FUSE PLACEMENT
FIGURE
38 - STEP 5. FLIP UP THE REQUIRED FUSE HOLDERS.
REPLACE BROKEN FUSES WITH THE APPROPRIATE FUSE TYPE
(SEE 11. SG1 PARTS LIST)
9.1.3. CLOSING THE SG1
FIGURE 39 - STEP 6. PUSH THE CENTRAL TRAY INTO THE ENCLOSURE, BE
CAREFUL TO AVOID PINCHING WIRES. ENSURE THAT THE
HANDLE BOLT HOLES ON THE TRAY ALIGN WITH THE
BOLT HOLES ON THE ENCLOSURE.
9.1.3. CLOSING THE SG1 (CONTINUED)
FIGURE 41 - STEP 8 - OPTION 1.
PLACE THE REUSABLE SILICONE GASKET
ONTO THE FRONT OR BACK PANEL OF SG1.
