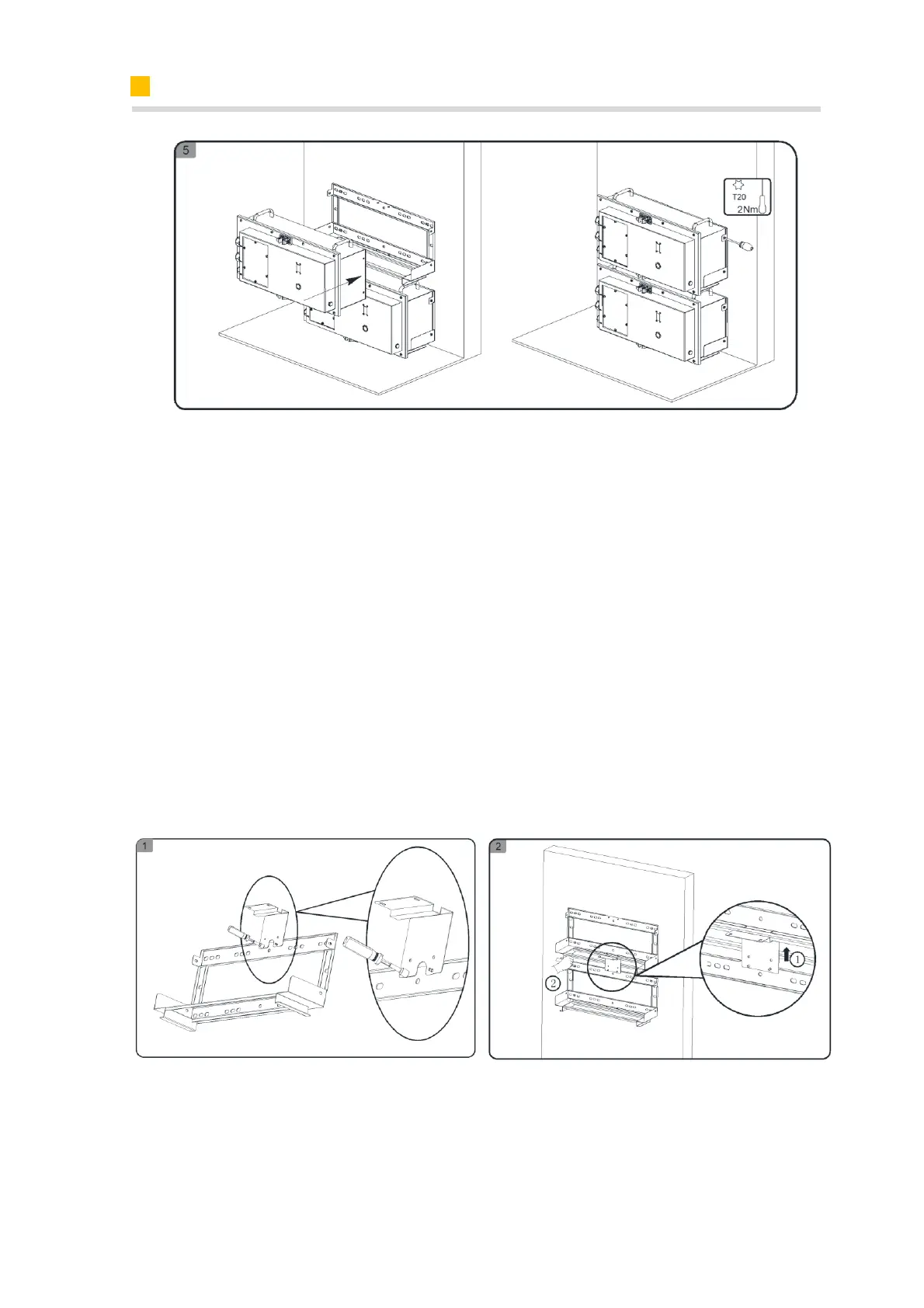

Mount the expansion battery M4856-P downwards as follows.
1) Secure the expansion bracket to the M4856-P wall bracket to be mounted on its top
with two nuts provided.
2) Locate the above assembly to the top M4856-P wall bracket on its bottom position-
ing fit, and then mark the drill positions.
3) Set the wall bracket aside and drill the marked holes with drill Φ10.
4) Insert screw anchors into the drill holes, secure the wall bracket horizontally using
the provided screws.
5)Pick up the battery into the wall mounting bracket. Secure the battery to the wall
mounting bracket, tighten then with four screws using a Torx screwdriver(TX 20,
torque:2.5Nm).
