5.5. Mounting the Product
5.5.1. Mounting the Battery
1）for SMILE-BAT series batteries

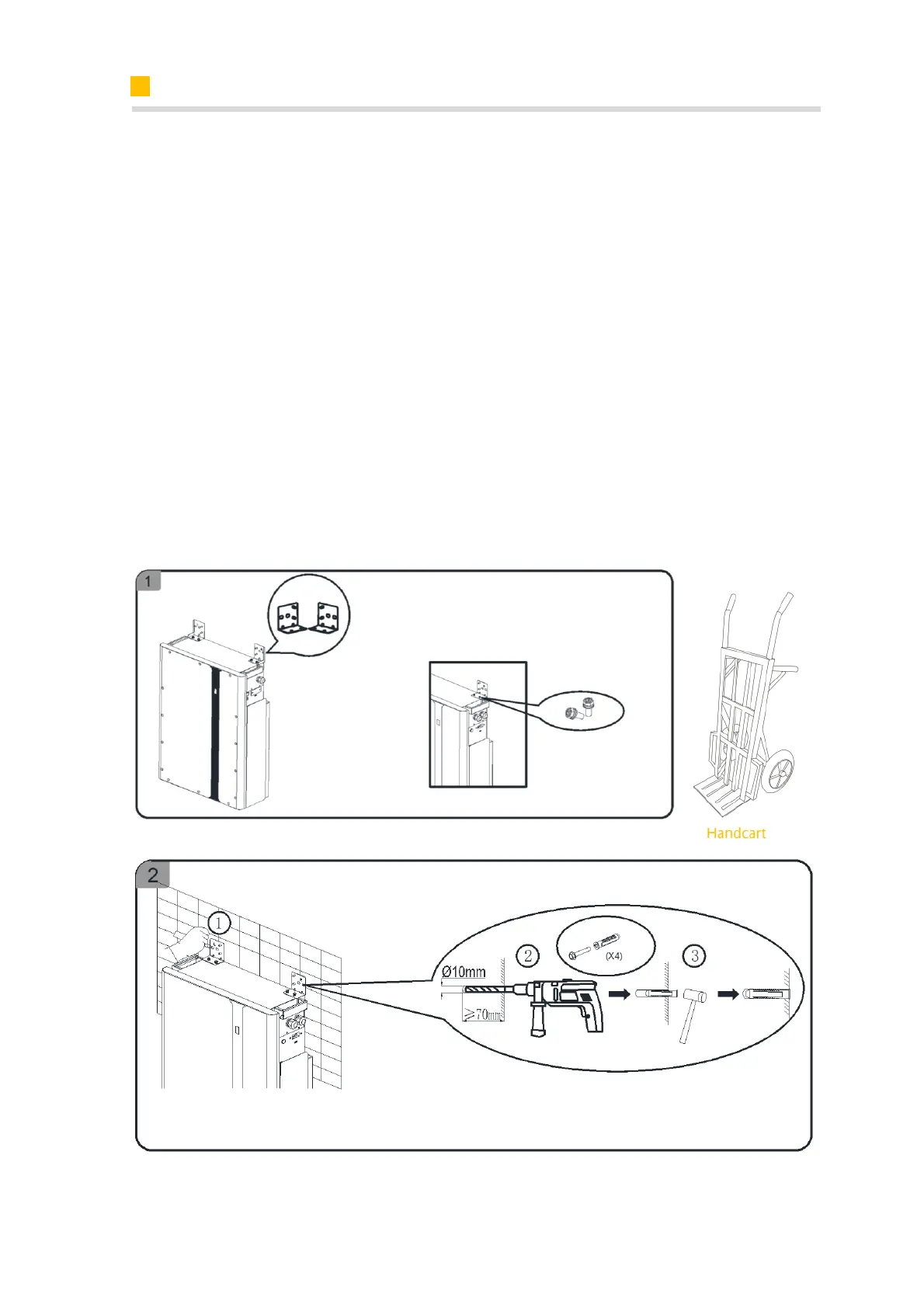

a. Take out the battery from the carton, transport it to the installation site with a hand-
cart which bearing capacity should be greater than 200kg, tied with bandage.
b. Place the battery against the wall, mount the wall panels and then mark drill positions.
c. Remove the wall panels and cover the top of the battery with plastic bag, then drill
4 holes on the wall with drill Φ10, insert screw anchors into the drill holes
d. After removing the plastic bag, assemble the mounting panels on top of the battery
(tool: T20 screwdriver, torque: 2.5Nm), secure the wall panels with the wall using the
provided screws.
