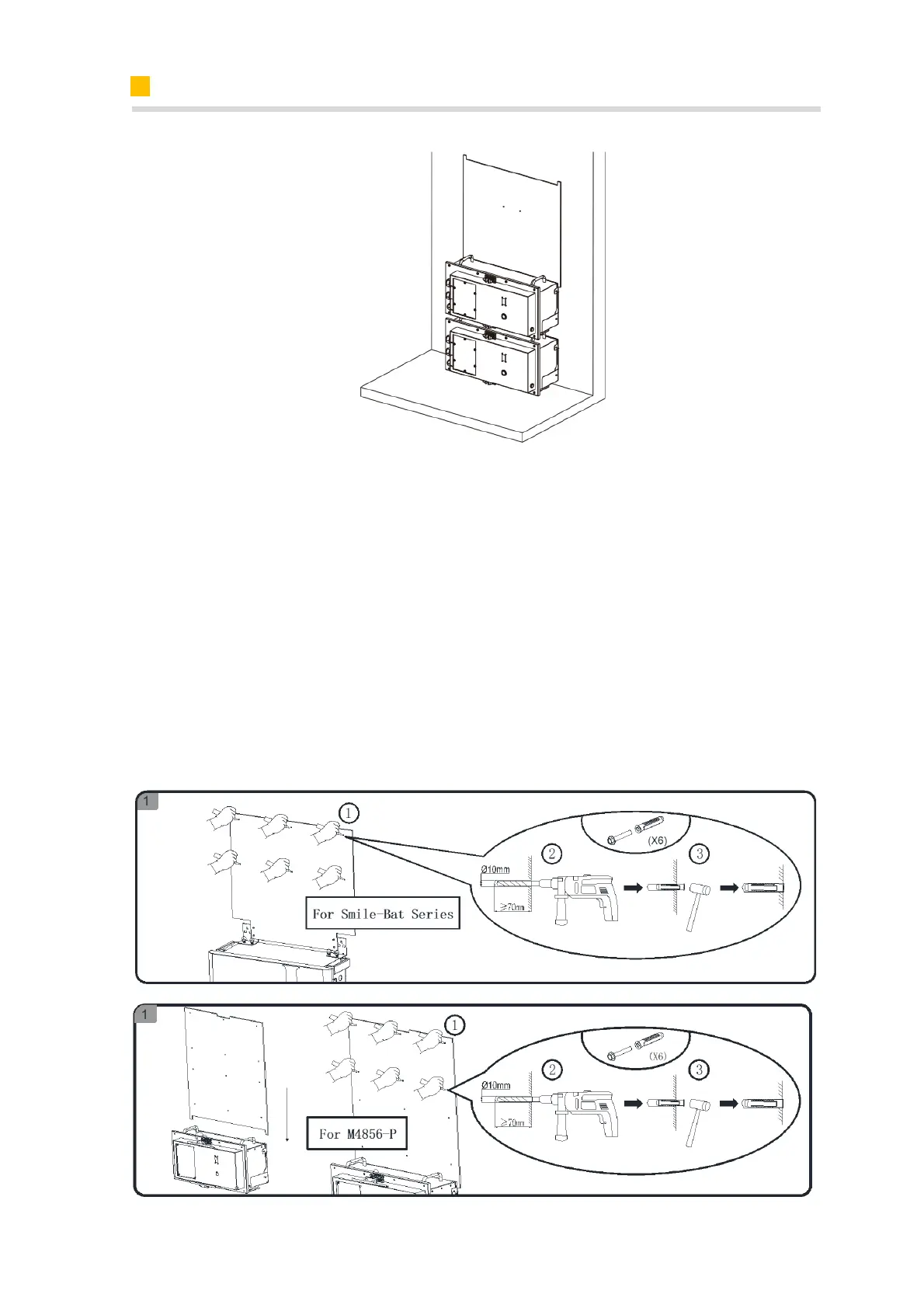

The steps for mounting SMILE5-INV are listed below:
a. Please locate the position plate with 4 positioning pin of the wall panel of the
SMILE-Bat series or with the outer shape of the wall bracket of M4856-P, and use a
marker to locate the drill positions, then remove the position plate.
b. Drill 6 holes on the wall with Φ10mm drill and insert the screw anchors into the drill
holes.
c. Attach the wall bracket to the wall and tighten the provided screws with the tool of
SW10 hexagon sleeve.
d. Hold the handles on both sides and hook the inverter into the wall bracket.
e. Tighten the wall bracket and the inverter sides with screw M5*12 (X2) (tool: T20
screwdriver, torque: 2Nm).
f. Attach two holders of SMILE5-INV cable cover to the sides of the bottom of the
inverter and tighten them (tool: T20 screwdriver, torque: 2Nm)..
