Electrical Connection
52

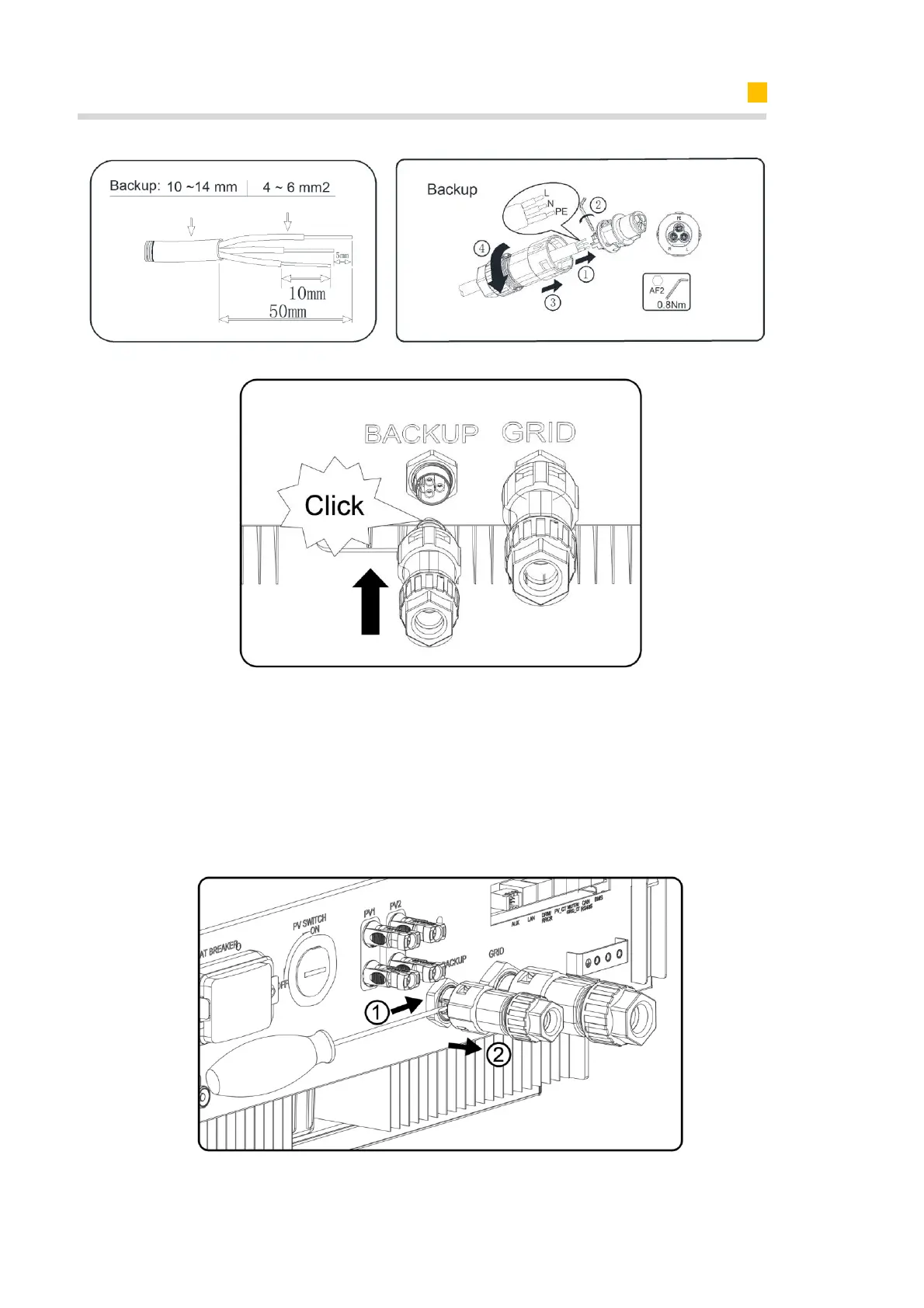

Installation steps for backup side
PS: Follow-up steps for disassembling the AC connector:
To disassemble the backup connectors from the SMILE5-INV.
1、Unscrew the backup connector counterclockwise until it can't be rotated.
2、Take out the slotted screwdriver and insert the its blade into the slot of the AC
connector and unplug it.
